Features Ubiquiti USW-24-POE Gen2:

Managed switch, management via UniFi Network Controller

2x SFP port, 1Gbps uplinking

24x Gigabit RJ45 port; 16x auto-sensing 802.3af/at PoE+

Total PoE budget: 95W (max. 32W per port)

Switching capacity: 52 Gbps

1.3" LCM touchscreen

Layer 2 functions

Dimensions: 442.4 x 200 x 43.7 mm

Rack mountable (in SOHO rack), including mounting kit

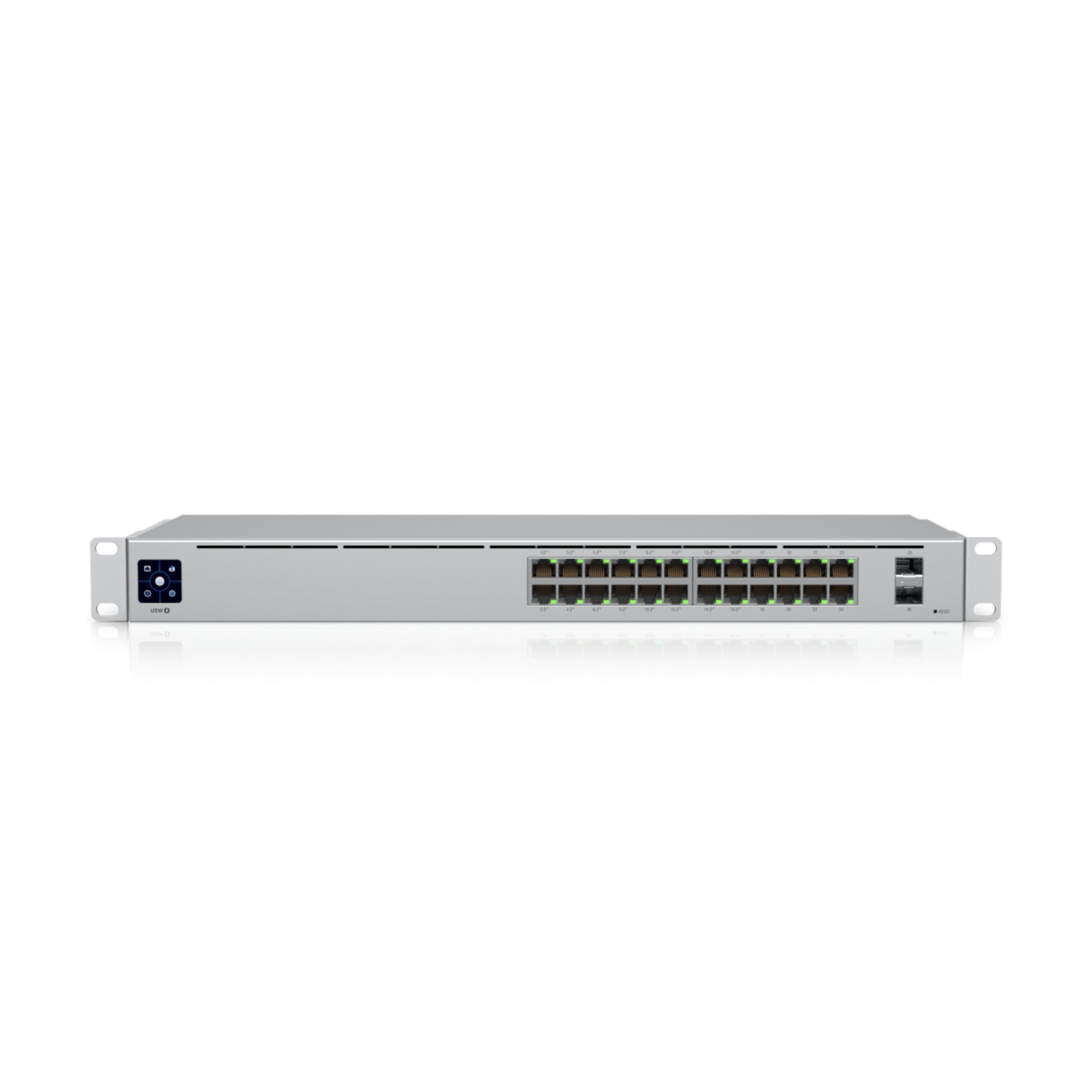

24-port Gigabit PoE+ switch

The Ubiquiti USW-24-POE Gen2 switch provides connected network equipment via 16 of the 24 LAN ports, not only a data connection, but also 802.3at PoE+ power. For example, connect access points, IP cameras and VoIP telephones to the managed 24-port switch and provide these devices with power and data at the same time. In addition to Ethernet ports, the fanless switch has 2 SFP ports for 1Gbps uplinking and a 1.3" LCM touchscreen for status updates. Due to its compact size, the switch can be placed in a SOHO rack.

Ubiquiti UniFi Network Controller and UniFi app

You easily configure and manage the switch via the UniFi Network Controller software on your PC or via the UniFi mobile app. The USW-24-POE Gen2 offers advanced Layer 2 switching functions, allowing you to configure each port individually (switching, mirroring or aggregate). The software also makes it possible to access your other switches within the network, so that you can easily manage them from one central point. All devices are clearly displayed within the graphical interface and you can perform software updates or adjust configurations. You do not have to pay anything for the UniFi Controller software and the UniFi app and no licenses are required.

Package contents

• Ubiquiti UniFi Switch USW-24-POE Gen2
• Rackmount brackets and mounting kit
• Power cable
• Manual
