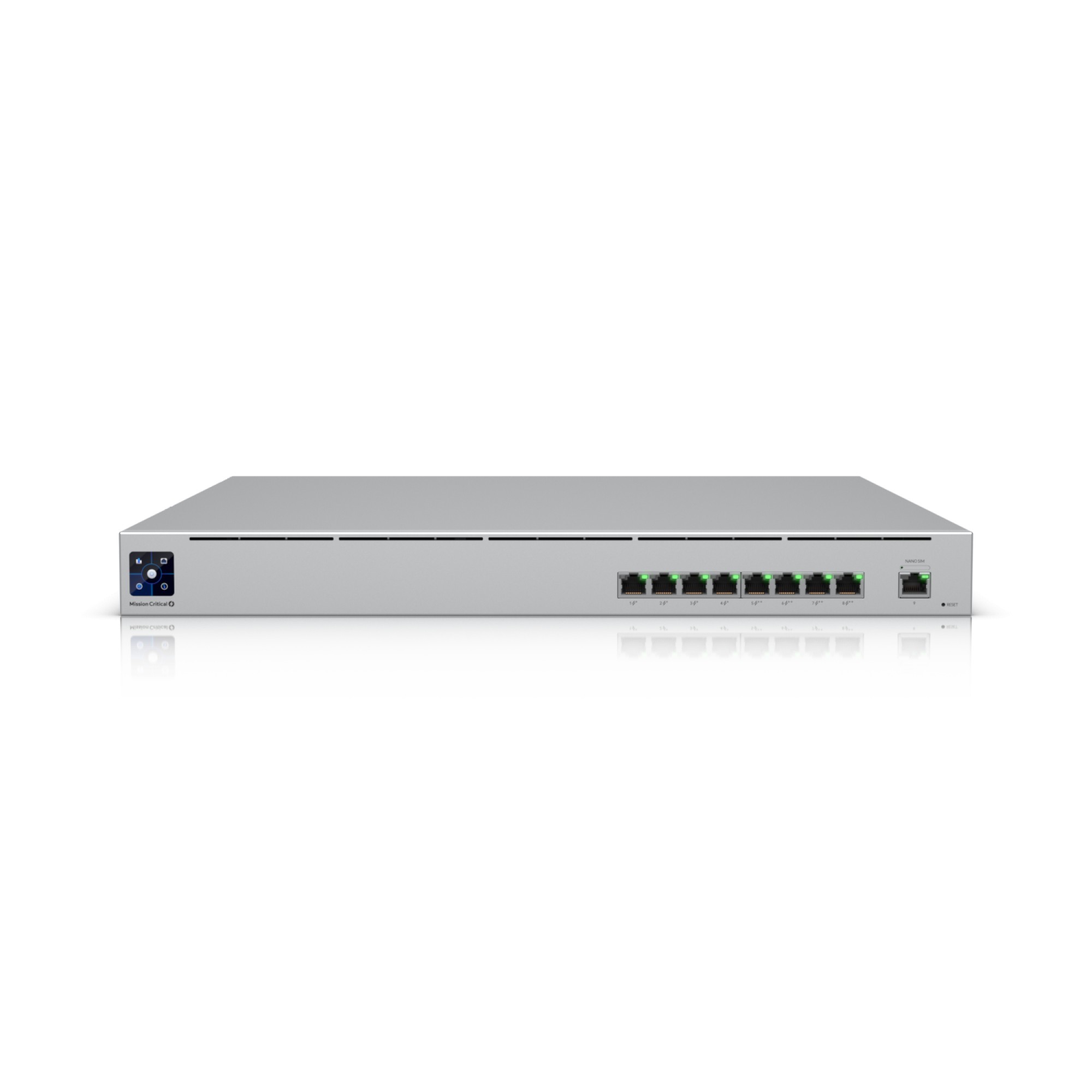

Features Ubiquiti Mission Critical

Managed PoE switch with built-in UPS

9x Gigabit Ethernet ports

4x PoE+ and 4x PoE++

PoE budget: 120 Watts

Total throughput: 18 Gbps

Internal 368Wh battery for backup power supply

1x connection for external 48V DC battery pack

2x 230V AC power output

Management via UniFi Network Controller

With 1.3'' touchscreen

Dimensions: 442 x 480 x 44 mm

PoE switch with built-in UPS

A backup power supply for your network ensures that your network always remains running, even in the event of a power outage. The Ubiquiti Mission Critical combines this with a powerful PoE switch for a strong foundation for your network. You can connect all kinds of PoE devices to the 9 Gigabit Ethernet ports, such as IP cameras, access points and VoIP telephones. The Mission Critical has 4x GbE with PoE+ (802.3at) and 4x GbE with PoE++ (802.3bt). The total PoE budget is 120 Watts. Thanks to the support of PoE, your connected devices are supplied with power and network via one Ethernet cable, so that no external socket is required.

Power connections

Since the Ubiquiti Mission Critical has a built-in UPS (368Wh), various power connections are built into the device. Firstly, it offers 2x 230V AC power outputs, to connect other equipment. In addition, you can easily connect an external 48V DC battery pack via the suitable input. If the power goes out, your network will at least remain running!

Management via UniFi Network Controller

Easily manage and configure your switch remotely via the UniFi controller software (computer or laptop) and the UniFi app (smartphone). The switch has various layer 2 switching functionalities that you can set and change according to your wishes. Management is very easy via the intuitive graphical interface of the software and app. The Mission Critical switch is also easily included in your UniFi network.

Package contents

• Ubiquiti Mission Critical switch
• 1x power adapter
• 1x power adapter for 48V DC battery pack
• Rackmount kit
• Manual
