Features Ubiquiti UniFi ECS-24-PoE

Layer 3 Managed UniFi switch with 24 ports8x 2.5 Gigabit Ethernet ports, 16x 10 Gigabit Ethernet ports24x PoE+++ (802.3bt Type 4) supportPoE budget: 1050 Watt, max. 90 Watt per port2x 25 Gigabit SFP28 portsSwitch capacity: 460 GbpsIncludes 2 hot-swappable power adaptersA total of 4 hot-swappable ventilation modules1U rack mountable, size: 442 x 496 x 44 mmWith 1.3'' touchscreen for status information, among other thingsIGMP Snooping, Port Isolation, Port Mirroring, VLAN

Powerful UniFi switch with high capacity

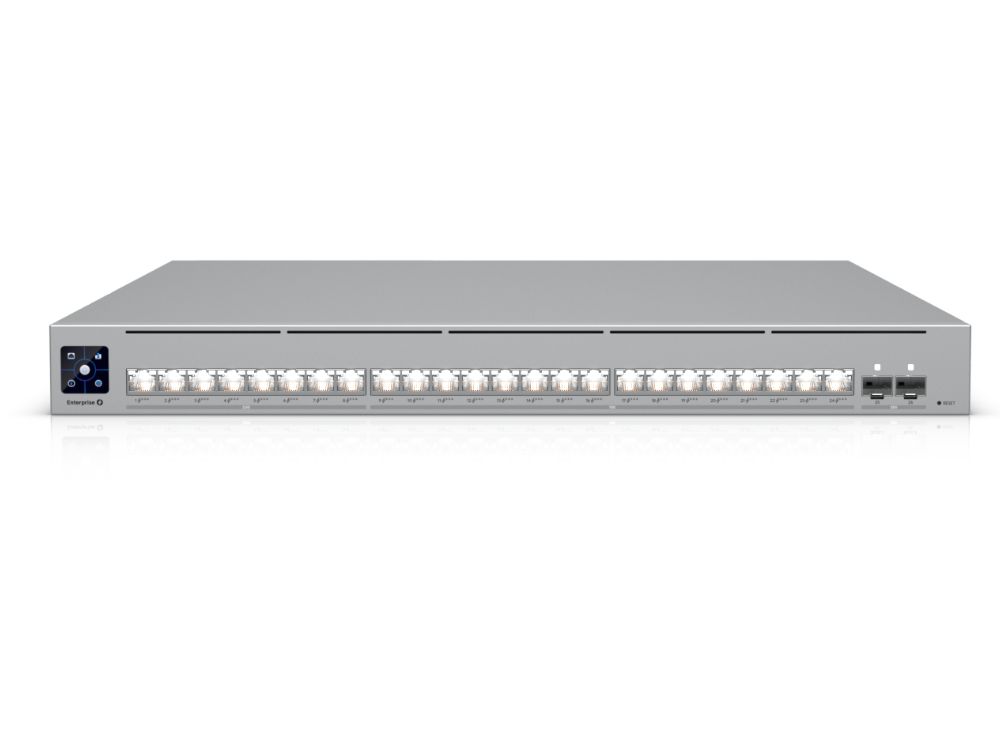

With the Ubiquiti UniFi ECS-24-PoE you have a powerful Layer 3 managed switch that is specially designed for networks with high performance and high capacity. This model offers a combination of versatile ports and powerful features that keep your network running efficiently and reliably. Ideal for both business applications and demanding environments.

24x Multi-Gigabit Ethernet ports

The UniFi ECS-24-PoE has 24 ports, of which 8 ports support 2.5 Gigabit and 16 ports support 10 Gigabit for lightning-fast connections. Each port offers Power over Ethernet (PoE) support according to the 802.3bt Type 4 (PoE+++) standard, with an impressive PoE budget of no less than 1050 watts. A maximum output of 90 watts is possible per port, which makes this switch ideal for powering devices with higher energy consumption, such as security cameras and VoIP telephones. Please note that you must connect both power adapters to use the full PoE budget.

25G SFP28 ports

With 2 SFP28 ports of 25 Gigabit, the UniFi ECS-24-PoE offers versatile expansion options to connect additional network devices or to realize fast connections to other switches. The switch capacity of 460 Gbps ensures stable and reliable data transfer without loss of speed.

Package contents

• Ubiquiti UniFi ECS-24-PoE
• 2x Power adapters
• 2x Ventilation modules
• Rackmount kit + mounting material
• Manual
