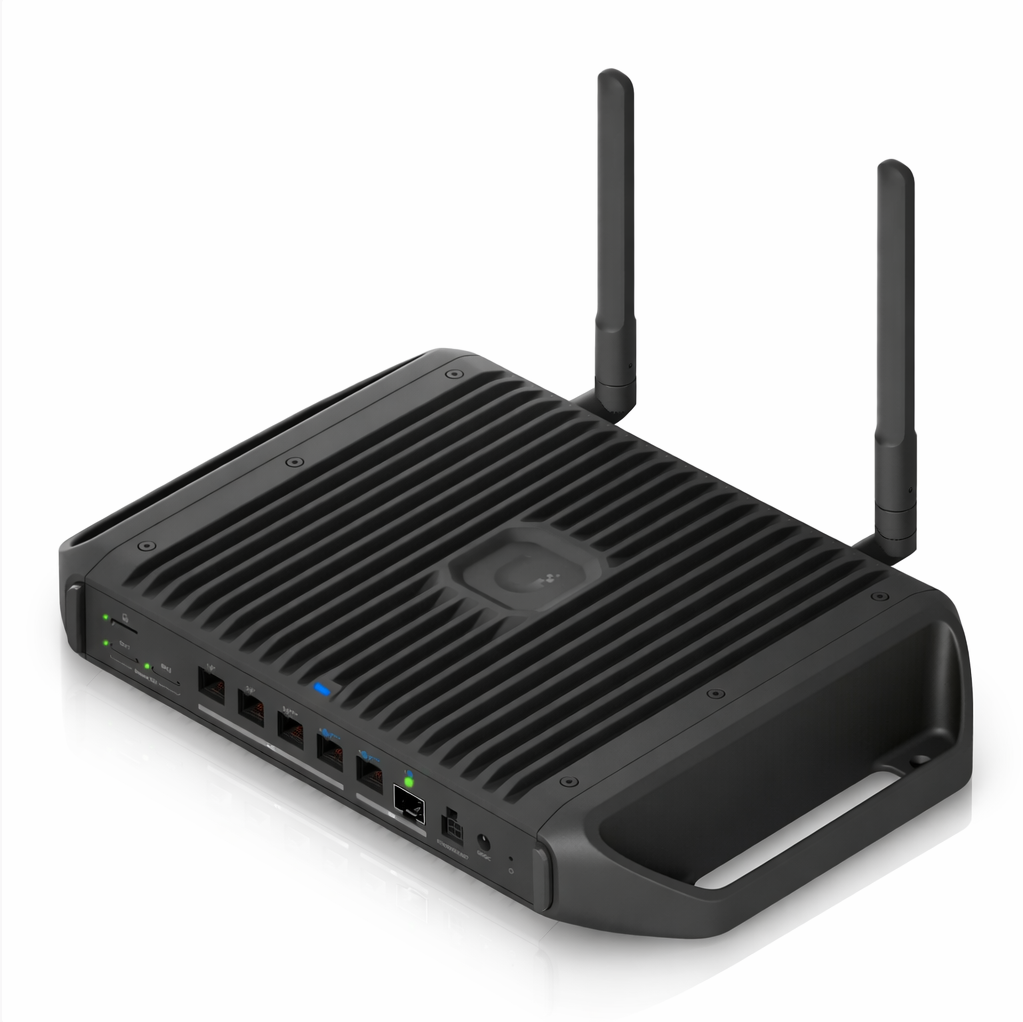

Features Ubiquiti UniFi Cloud Gateway Industrial

Up to 5 WAN ports (10G SFP+, 10 GbE RJ45, 2.5 GbE RJ45)4x 2.5 GbE RJ45 (2x PoE+++, 2x PoE+) + 1x 10 GbE RJ45 (PoE+++)Integrated WiFi 7 (5 GHz to 4.3 Gbps / 2.4 GHz to 688 Mbps)IDS/IPS throughput up to 5 GbpsSupports UniFi Network, Protect, Access, Talk and ConnectPre-installed 128 GB microSD for NVR functionalityOnboard SIM slots for Remote SIM (UniFi 5G Max Outdoor – support to follow)Flexible mounting: desktop, wall or rack (accessory)

Industrial performance and security

In environments where multiple systems depend on a stable network connection, a gateway must do more than just forward traffic. The Ubiquiti UniFi Cloud Gateway Industrial has a quad-core ARM® Cortex®-A73 processor at 2.2 GHz and 3 GB system memory. This means that UniFi Network, Protect or other applications continue to run stably at the same time.

With an IDS/IPS throughput of up to 5 Gbps, you protect the network without a noticeable impact on performance. You have a stateful firewall, application-aware Layer 7 firewall and extensive DPI functionality for insight into data traffic. Zone-based filtering, content filtering and support for more than 55,000 IDS/IPS signatures with CyberSecure provide additional security. VLAN and subnet segmentation make it possible to logically separate office automation, production equipment and guest networks, for example.

Multi-WAN, VPN and mobile backup prepared

When you work with multiple internet connections, the Ubiquiti UniFi Cloud Gateway Industrial offers support for Multi-WAN load balancing and automatic failover. This way, your network remains accessible if one connection fails. Internet quality and disruptions become transparent through reports within the UniFi environment.

Extensive VPN options are available for remote locations or home workers, including IPsec, OpenVPN, WireGuard, L2TP and Teleport VPN. Site Magic for site-to-site VPN is also integrated, without additional licensing costs for SD-WAN functionality.

In addition, this model has onboard SIM slots that are exclusively intended for Remote SIM integration with the UniFi 5G Max Outdoor. This functionality will be made available via a future software update. The SIM slots are therefore not intended for direct placement of a SIM card in the gateway itself, but for centralized management of mobile connectivity via a paired 5G device.

Integrated WiFi 7 and powerful PoE support

In a warehouse, workshop or technical room you do not want to be dependent on individual components. That is why the Ubiquiti UniFi Cloud Gateway Industrial has integrated WiFi according to 802.11a/b/g/n/ac/ax/be. On 5 GHz you achieve a maximum data speed of up to 4.3 Gbps and on 2.4 GHz up to 688 Mbps. Thanks to 2x2 MU-MIMO on both frequency bands, you can achieve stable wireless coverage for an area of ​​up to approximately 115 m².

You can directly connect access points, cameras or other network equipment via the built-in PoE ports. Two 2.5 GbE ports support PoE+++ up to 90W per port, two 2.5 GbE ports support PoE+ up to 30W and the 10 GbE RJ45 port also supports PoE+++. The total PoE budget is 270W with DC power supply.

All-in-one UniFi management platform

When you manage multiple UniFi devices, central control is essential. With the Ubiquiti UniFi Cloud Gateway Industrial you can manage 50+ UniFi devices and multiple cameras within UniFi Protect. The gateway supports UniFi Network, Protect, Access, Talk and Connect, bringing your network, camera surveillance, access control and VoIP together in one platform.

A 128 GB microSD card is installed as standard for NVR functionality. Expansion via the microSD slot is possible. Management is via Ethernet or Bluetooth and via the UniFi web application or mobile app for iOS and Android.

Flexible mounting for any environment

Installation depends on location. That's why you can use the Ubiquiti UniFi Cloud Gateway Industrial as a desktop solution with the included table stand, wall-mount it, or place it in a rack with an optional rackmount accessory. The robust housing made of polycarbonate and aluminum alloy is suitable for temperatures from -30 to 50 °C and can therefore be used in industrial or unconditioned spaces.

Package contents

• Ubiquiti UniFi Cloud Gateway Industrial
• 54V DC 350W power adapter
• Table stand
• Installation manual
