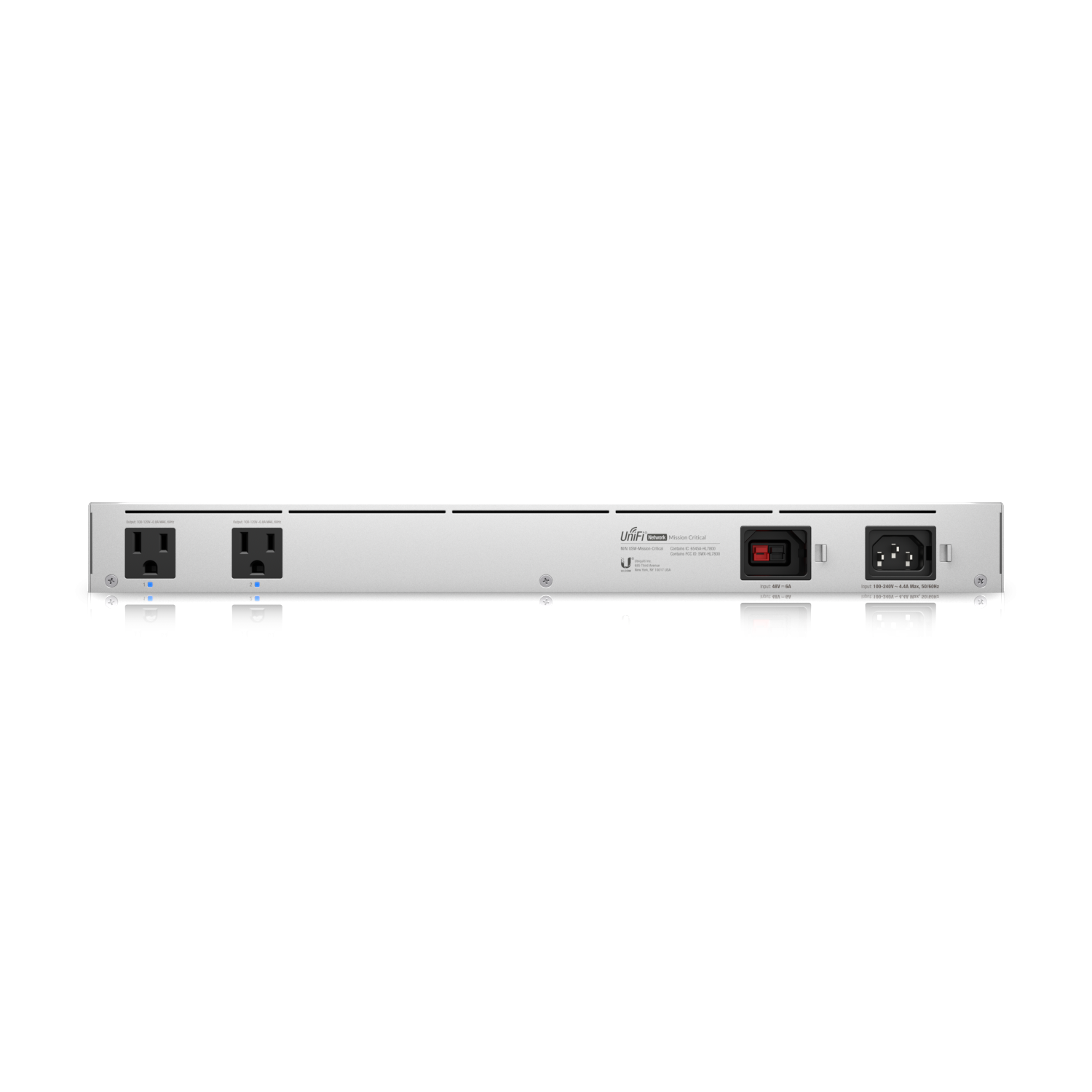

Ubiquiti Switch full managed Layer2 9 Port • 9x GbE • PoE Budget 120W
€896,81
A switch with a built-in 368Wh lithium-ion battery that can power 8 devices uninterruptedly.
Availability: In stock
Secure payment · Fast delivery
EAN:USW-Mission-CCategories:, , Brand:
A switch with a built-in 368Wh lithium-ion battery that can power 8 devices uninterruptedly.
Specifications
Specifications
| Mass | 442 x 480 x 44 mm (17,4 x 18,9 x 1,7") |
| Weight | Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Case material | SGCC-Stahl |
| Montagematerial | SGCC-Stahl |
| Supported rack depth | 700 bis 1000 mm (27,6 bis 39,4") |
| Verwaltungsschnittstelle | Ethernet In-Band |
| Network interface | (9) GbE RJ45-Ports |
| PoE-Schnittstelle | (4) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60 W PoE++ (Paar A 1, 2+; 3, 6-) (Paar B 4, 5+; 7, 8-) |
| Gesamter nicht blockierender Durchsatz | 9 Gbit/s |
| switching performance | 18 Gbit/s |
| Weiterleitungsrate | 26,78 Mpps |
| Power-Methode | (1) Universeller Wechselstromeingang, 100–240 V Wechselstrom, 4,4 A max., 50/60 Hz (1) Externer Akku, Gleichstromeingang 48 V Gleichstrom, 6 A (1) Interner Lithium-Ionen-Akku, 368 Wh |
| Power supply | Universeller AC-Eingang: AC/DC, intern, 240 W. Externer Batterieanschluss: DC, extern, 240 W |
| Max. Energieverbrauch | 240W 50W (without PoE output) |
| PoE-Budget | 120W |
| Performance | USA: (2) Steuersteckdosen, 110 V AC, 0,72 A max., 60 Hz EU: (2) Steuersteckdosen, 230 V AC, 0,35 A max., 50 Hz |
| Leistungsbudget | 80W |
| Max. PoE wattage per port according to PSE | PoE+: 30 W PoE++: 60 W |
| Spannungsbereich PoE-Modus | PoE: 44–57 V PoE+/PoE++: 50–57 V |
| ESD/EMP-Schutz | Luft/Kontakt: ± 24 kV |
| LCM-Anzeige | (1) 1,3-Zoll-Touchscreen |
| Betriebstemperatur | -5 bis 40 °C (23 bis 104 °F) |
| Operating humidity | 5 bis 95 % nicht kondensierend |
| Zertifizierungen | CE, FCC, IC |
| Ethernet | Green: 1 Gbit/s Yellow: 10/100 Mbit/s |
| PoE | Yellow: PoE/PoE+/PoE++ |
| UniFi network | Version 6.2.26 and later |
