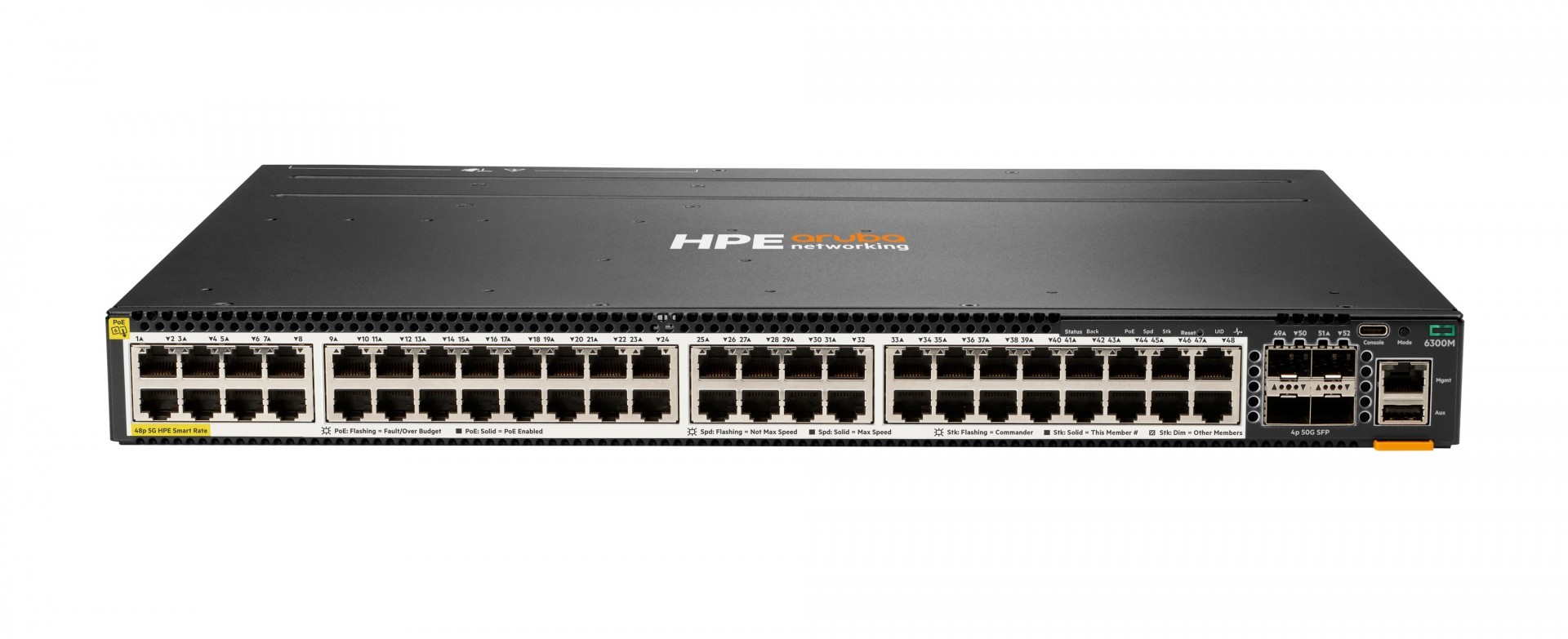

HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6
€26563,57
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 29490 entries Switching capacity: 880 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power over Ethernet (PoE)
Availability: In stock
Secure payment · Fast delivery
EAN:190017339405Categories:, , Brand:
HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 29490 entries, Switching capacity: 880 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
Management features
| Switch type | Managed |
| Switch layer | L3 |
Security
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Performance
| Flash memory | 32000 MB |
| Internal memory | 8000 MB |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A72 |
| Built-in processor | Yes |
Network
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z |
| Flow control support | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
Design
| Rack mounting | Yes |
| Product colour | Grey |
| Stackable | Yes |
Data transmission
| Switching capacity | 880 Gbit/s |
| Throughput | 654 Mpps |
| MAC address table | 29490 entries |
| Latency (1 Gbps) | 4.24 µs |
| Latency (10 Gbps) | 1.5 µs |
| Jumbo frames support | Yes |
Power
| AC input voltage | 100 - 240 V |
| Power consumption note | With JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W |
Weight & dimensions
| Depth | 442 mm |
| Width | 44 mm |
| Height | 385 mm |
Other features
| I/O ports | 48 x HPE Smart Rate 100 M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Dimensions (W x D x H) (imperial) | 43,9 x 442 x 386,1 |
| Latency | 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs |
| Memory and processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
