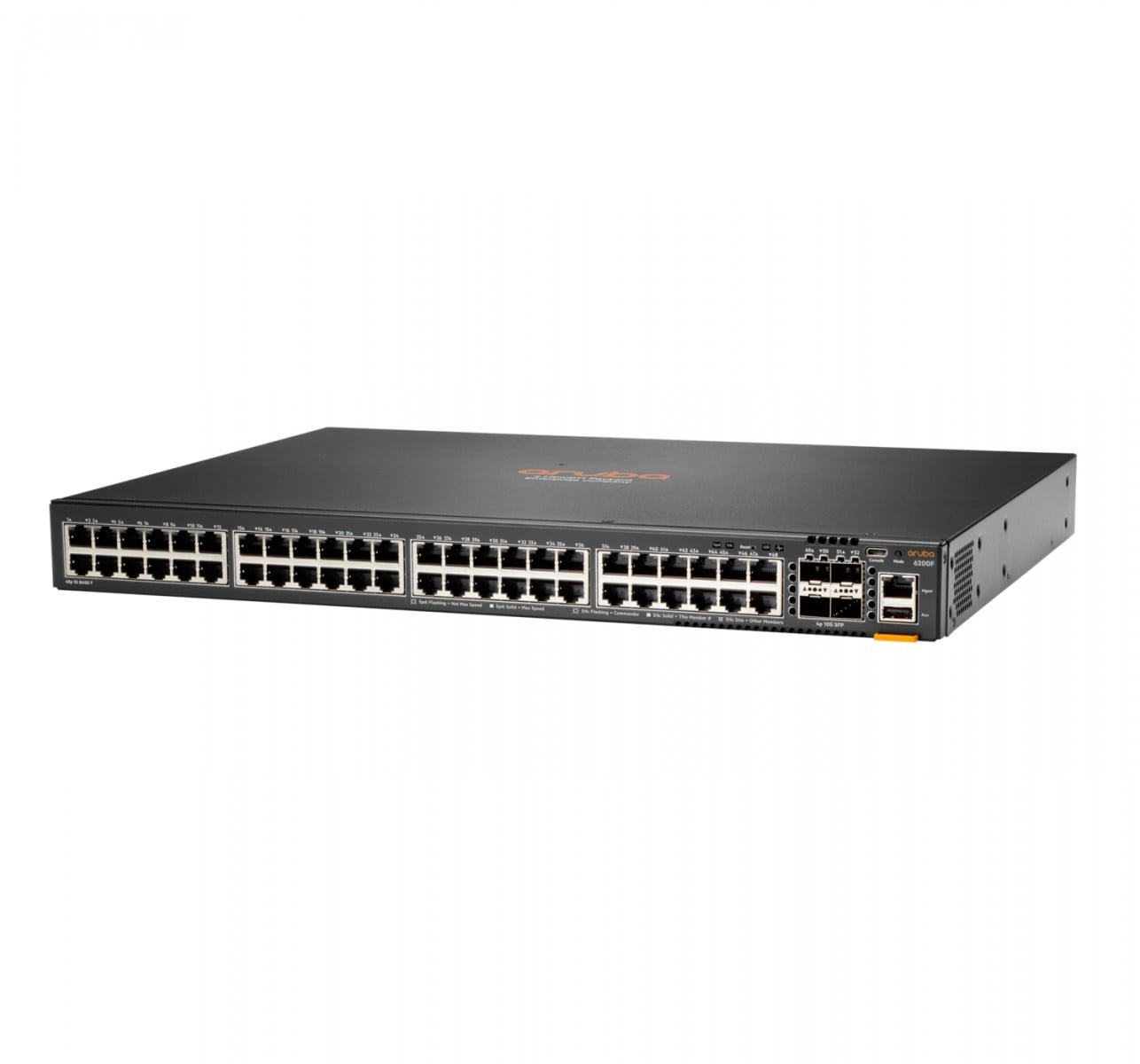

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch 48-port Gigabit
- HPE Aruba Networking CX 6200F 48G 4SFP+ Switch Switch L3 Managed 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ front and side to back rack mountable
Availability: In stock
Product description: HPE Aruba Networking CX 6200F 48G 4SFP+ Switch - switch - 48 ports - Managed - rack mountable Device type: Switch - 48 ports - L3 - Managed - stackable Packing type: Front and side to back mountable on rack 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ Performance: Switching capacity: 176 Gbps Capacity: 130.9 Mpps Latency (1 Gbps): 2.28 µs Latency (10 Gbps): 1.46 µs Capacity: Packet buffer size: 8 MB MAC address table size: 32,768 entries Jumbo frame support: 9220 bytes Routing protocol: RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD Remote management protocol: RMON, CLI, MIB Features: VRRP support, TPM, UDLD, DWRR, CoS, ToS, BPDU, PoE Class 4, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol Compliance Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX Power: AC 100-120/200-240 V Dimensions (W x D x H): 44.25 cm x 28.45 cm x 4.37 cm Weight: 3.9 kg System Requirements: AOS-CX Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Characteristics | VRRP support, TPM, UDLD, DWRR, CoS, ToS, BPDU, PoE Class 4, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol |
| Device type | Switch - 48 ports - L3 - Managed - stackable |
| Flash memory | 16 GB |
| Jumbo frame support | 9220 bytes |
| Capacity | Packet buffer size: 8 MB |
| Encryption algorithm | SSL, FIPS 140-2 |
| MAC address table size | 32,768 entries |
| Max number of units in a stack | 8 |
| Compliance Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Packing type | Front and side to back mountable on rack 1U |
| Gates | 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ |
| Performance | Switching capacity: 176 Gbps | Capacity: 130.9 Mpps | Latency (1 Gbps): 2.28 µs | Latency (10 Gbps): 1.46 µs |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| Protocol for remote administration | RMON, CLI, MIB |
| RAM | 8 GB DDR4 SDRAM |
| Routing protocol | RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD |
| Subtype | Gigabit Ethernet |
| Interface | 48 x 10/100/1000 Base-T RJ-45 | 4 x 100/1000/10G SFP+ uplink/stacking | 1 x USB-C console | 1 x console RJ-45 | 1 x administration | 1 x USB Type A host |
| Necessary tension | AC 100-120/200-240 V |
| Power unit | Internal power supply |
| Compliance Standards | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2 |
| Equipment included | 2-Post Rack Kit |
| OS required | AOS-CX |
| Width | 44.25 cm |
| Depth | 28.45 cm |
| Height | 4.37 cm |
| Weight | 3.9 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 5 - 95% (non-condensing) |
| Storage humidity level | 5 - 95% (non-condensing) |
| Max. operating temperature | 45 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
