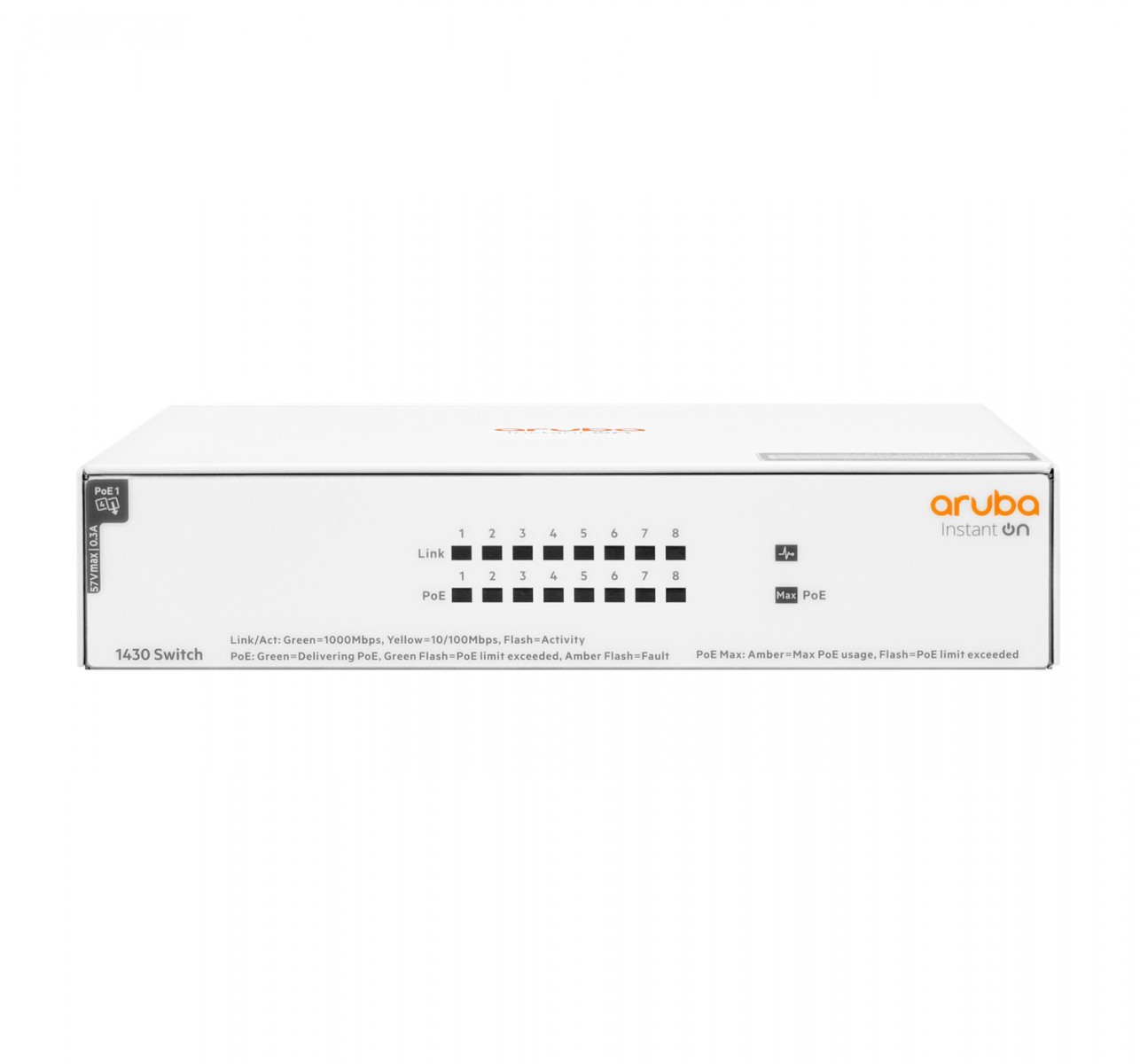

HPE Aruba Instant On 1430 8G Class4 64W Switch 8-port Gigabit PoE
- HPE Networking Instant On 1430 8G Class4 PoE 64W Switch Switch unmanaged 8 x 10/100/1000 (PoE Class 4) desktop, rack mountable, wall mountable PoE (64 W) BTO
Availability: In stock
Product description: HPE Networking Instant On 1430 8G Class4 PoE 64W Switch - switch - 8 ports - unmanaged - rack mountable Device type: Switch - 8 ports - unmanaged Packing type: Can be mounted on a stand Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE Class 4) Power Over Ethernet (PoE): PoE PoE budget: 64 W Performance: Capacity: 11.9 Mpps Switching capacity: 16 Gbps Latency (100 Mbps): 2.7 µs Latency (1 Gbps): 1.8 µs Capacity: MAC address entries: 8192 MAC address table size: 8192 entries Jumbo frame support: 9216 bytes Features: Fanless, for wall mounting, 2 MB packet buffer, EEE, DSCP support, VoIP support, auto-sensing per device Compliance standards: IEEE 802.1p, IEEE 802.3az Power: AC 100-240 V (50/60 Hz) 2 A Dimensions (W x D x H): 17.7 cm x 15 cm x 3.7 cm Weight: 770 g Price type: BTO Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Characteristics | Fanless, for wall mounting, 2 MB packet buffer, EEE, DSCP support, VoIP support, auto-sensing per device |
| Device type | Switch - 8 ports - not managed |
| Jumbo frame support | 9216 bytes |
| Capacity | MAC address entries: 8192 |
| MAC address table size | 8192 entries |
| Compliance Standards | IEEE 802.1p, IEEE 802.3az |
| Packing type | Desktop, rack-mountable, wall-mountable |
| PoE budget | 64 W |
| Gates | 8 x 10/100/1000 (PoE Class 4) |
| Power Over Ethernet (PoE) | PoE |
| Performance | Capacity: 11.9 Mpps | Switching capacity: 16 Gbps | Latency (100 Mbps): 2.7 µs | Latency (1 Gbps): 1.8 µs |
| RAM | 128KB EEPROM |
| Status indicators | Port status, link/activity, PoE max |
| Subtype | Gigabit Ethernet |
| Interface | 8 x 10/100/1000 Base-T (PoE) RJ-45 |
| Electrical power required | 2 A |
| Necessary tension | AC 100-240 V (50/60 Hz) |
| Power unit | External power supply |
| Power consumption standby | 4.1 watts |
| MTBF (expected time between failures) | 131.1 years |
| Compliance Standards | IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class B, CISPR 32:2015 Class B, FCC CFR47 Part 15 B Class B, ICES-003 Class B, VCCI Class B, CNS 13438 Class B, KS C 9832 Class B, AS/NZS CISPR 32 Class B, EN 55035, CISPR 35, KS C 9835, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000 |
| Price type | BTO |
| Equipment included | Stand set (2 pole) |
| Width | 17.7 cm |
| Depth | 15 cm |
| Height | 3.7 cm |
| Weight | 770 g |
| Service & Support | Limited Warranty - Lifetime | Technical Support - Live Chat - Lifetime | Technical support - telephone advice - 90 days from the date of purchase |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 90% (non-condensing) |
| Max. operating temperature | 40 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
