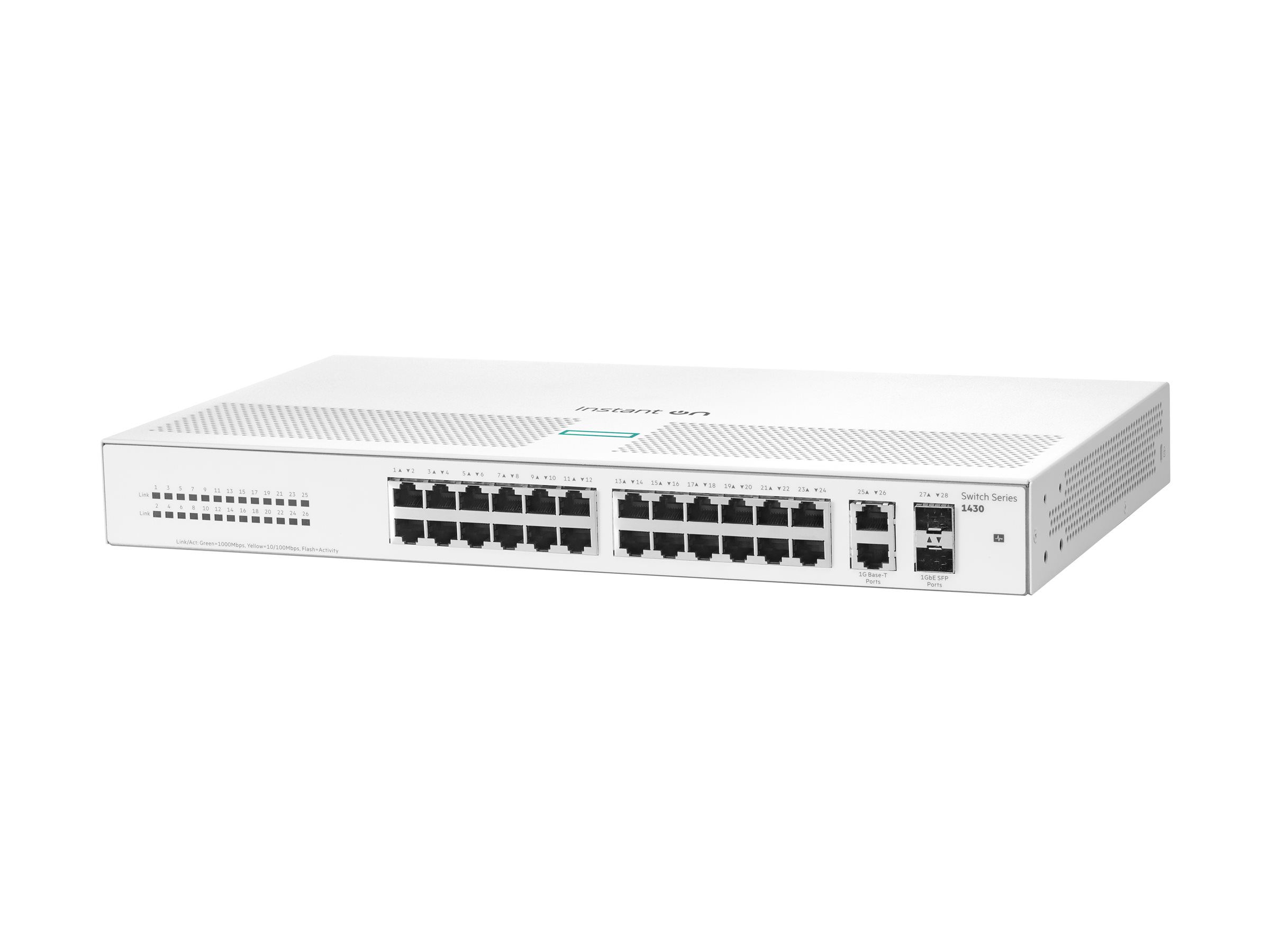

HPE Aruba Instant On 1430 26G 2SFP Switch 26-Port Gigabit Network
- HPE Networking Instant On 1430 26G 2SFP Switch Switch unmanaged 26 x 10/100/1000 + 2 x 100/1000 SFP desktop, rack mountable, wall mountable BTO
Availability: In stock
Product Description: HPE Networking Instant On 1430 26G 2SFP Switch - switch - 26 ports - unmanaged - rack mountable Device type: Switch - 26 ports - unmanaged Package type: Mountable on rack 1U Subtype: Gigabit Ethernet Ports: 26 x 10/100/1000 + 2 x 100/1000 SFP Performance: Capacity: 41.68 Mpps Switching capacity: 56 Gbps Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 2.9 µs Capacity: MAC address entries: 16384 MAC address table size: 16,384 entries Jumbo frame support: 9216 bytes Features: 12 MB packet buffer, fanless, for wall mounting, DSCP support, VoIP support, MDI/MDI-X switch, data transport, auto-sensing per device, STP support Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3i Power: AC 100-240 V (50/60 Hz) 0.4 A Dimensions (W x D x H): 38.8 cm x 22.5 cm x 4.4 cm Weight: 2.27 kg Price type: BTO Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Characteristics | 12 MB packet buffer, fanless, for wall mounting, DSCP support, VoIP support, MDI/MDI-X switch, data transport, auto-sensing per device, STP support |
| Device type | Switch - 26 ports - not managed |
| Flash memory | 32MB |
| Jumbo frame support | 9216 bytes |
| Capacity | MAC address entries: 16384 |
| MAC address table size | 16,384 entries |
| Compliance Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3i |
| Packing type | Desktop, stand-mountable, wall-mountable 1U |
| Gates | 26 x 10/100/1000 + 2 x 100/1000 SFP |
| Performance | Capacity: 41.68 Mpps | Switching capacity: 56 Gbps | Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 2.9 µs |
| Status indicators | Port status, link/activity |
| Subtype | Gigabit Ethernet |
| Interface | 26 x 10/100/1000 Base-T RJ-45 | 2 x 100/1000 SFP |
| Electrical power required | 0.4 A |
| Necessary tension | AC 100-240 V (50/60 Hz) |
| Power unit | Internal power supply |
| Power consumption standby | 8 watts |
| MTBF (expected time between failures) | 171.9 years |
| Compliance Standards | IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class B, CISPR 32:2015 Class B, FCC CFR47 Part 15 B Class B, ICES-003 Class B, VCCI Class B, CNS 13438 Class B, KS C 9832 Class B, AS/NZS CISPR 32 Class B, EN 55035, CISPR 35, KS C 9835, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000 |
| Price type | BTO |
| Equipment included | Stand set (2 pole) |
| Width | 38.8 cm |
| Depth | 22.5 cm |
| Height | 4.4 cm |
| Weight | 2.27 kg |
| Service & Support | Limited Warranty - Lifetime | Technical Support - Live Chat - Lifetime | Technical support - telephone advice - 90 days from the date of purchase |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 90% (non-condensing) |
| Max. operating temperature | 40 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
