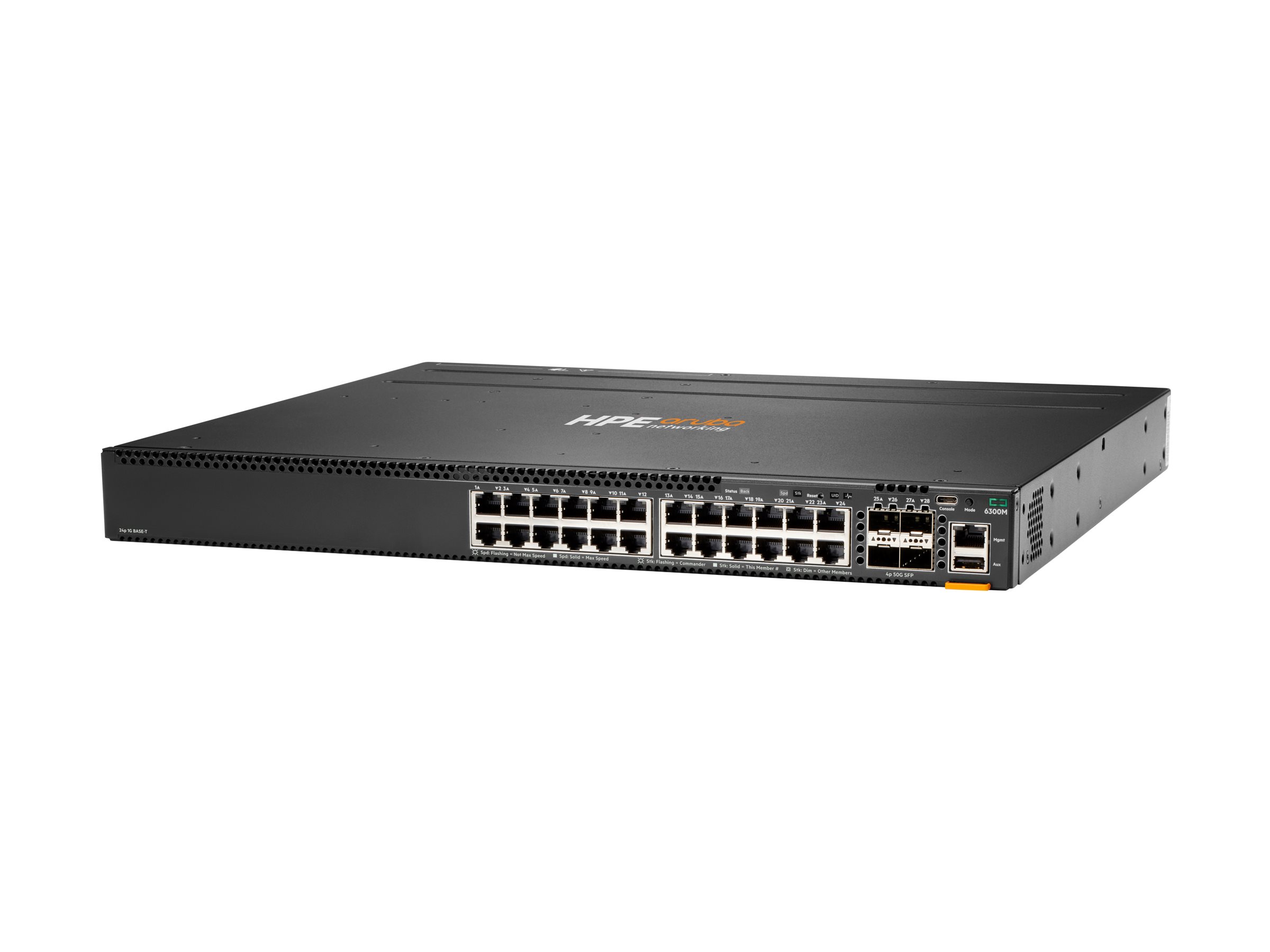

HPE Aruba 6300M Switch 24-Port Gigabit Network
- HPE Aruba 6300M Switch L3 Managed 24 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking) front and side to back rack mountable
Availability: In stock
Product description: HPE Aruba 6300M - switch - 24 ports - Managed - rack mountable Device type: Switch - 24 ports - L3 - Managed - stackable Packing type: Front and side to back mountable on rack 1U Subtype: Gigabit Ethernet Ports: 24 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking) Performance: Switching capacity: 448 Gbps Capacity: 334 Mpps Latency (1 Gbps): 2.28 µs Latency (10 Gbps): 1.46 µs Latency (25 Gbps): 1.9 µs Latency (50 Gbps): 3.49 µs Stacking bandwidth: 200 Gbps Capacity: Switched virtual interfaces (SVIs): 1000 IPv4 host table capacity: 32000 IPv6 host table capacity: 32000 IPv4 routes (Unicast): 64000 IPv6 routes (Unicast): 32000 IPv4 routes (Multicast): 8000 IPv6 routes (Multicast): 8000 IGMP groups: 8000 MLD groups: 4000 IPv4 ACL Entries (Ingress): 5000 IPv6 ACL Entries (Ingress): 1250 MAC ACL Entries (Ingress): 5000 IPv4 ACL Entries (Egress): 2000 IPv6 ACL Entries (Egress): 500 MAC ACL Entries (Egress): 2000 MAC address table size: 32,000 records Jumbo frame support: 9198 bytes Routing protocol: EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) Remote management protocol: RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP Features: DHCP support, ARP supported, VLAN supported, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog supported, High availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MDL snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, transmission storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA protection, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND hook, Unicast Storm protection, Microsoft NLB Compliance Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX Dimensions (W x D x H): 44.2 cm x 38.5 cm x 4.4 cm Weight: 5.43 kg Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+ |
| Characteristics | DHCP support, ARP supported, VLAN supported, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog supported, High availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MDL snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, transmission storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA protection, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tre |
| Device type | Switch - 24 ports - L3 - Managed - stackable |
| Flash memory | 32 GB |
| Jumbo frame support | 9198 bytes |
| Capacity | Switched virtual interfaces (SVIs): 1000 | IPv4 host table capacity: 32000 | IPv6 host table capacity: 32000 | IPv4 routes (Unicast): 64000 | IPv6 routes (Unicast): 32000 | IPv4 routes (Multicast): 8000 | IPv6 routes (Multicast): 8000 | IGMP groups: 8000 | MLD groups: 4000 | IPv4 ACL entries (ingress): 5000 | IPv6 ACL entries (input): 1250 | MAC ACL entries (ingress): 5000 | IPv4 ACL entries (egress): 2000 | IPv6 ACL entries (egress): 500 | MAC ACL entries (egress): 2000 |
| MAC address table size | 32,000 records |
| Compliance Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Packing type | Front and side to back mountable on rack 1U |
| Gates | 24 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking) |
| Performance | Switching capacity: 448 Gbps | Capacity: 334 Mpps | Latency (1 Gbps): 2.28 µs | Latency (10 Gbps): 1.46 µs | Latency (25 Gbps): 1.9 µs | Latency (50 Gbps): 3.49 µs | Stacking bandwidth: 200 Gbps |
| Processor | 1 x ARM Cortex-A72: 1.78 GHz |
| Protocol for remote administration | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| RAM | 8 GB DDR4 SDRAM |
| Routing protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Subtype | Gigabit Ethernet |
| Interface | 24 x 10/100/1000 Base-T RJ-45 | 4 x 1 Gbit/10 Gbit/25 Gbit/50 Gbit SFP56 | 1 x USB-C console | 1 x administration | 1 x USB Type A |
| Compliance Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2n |
| Rack mount kit | Included |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 5.43 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 95% (non-condensing) |
| Max. operating temperature | 45 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
