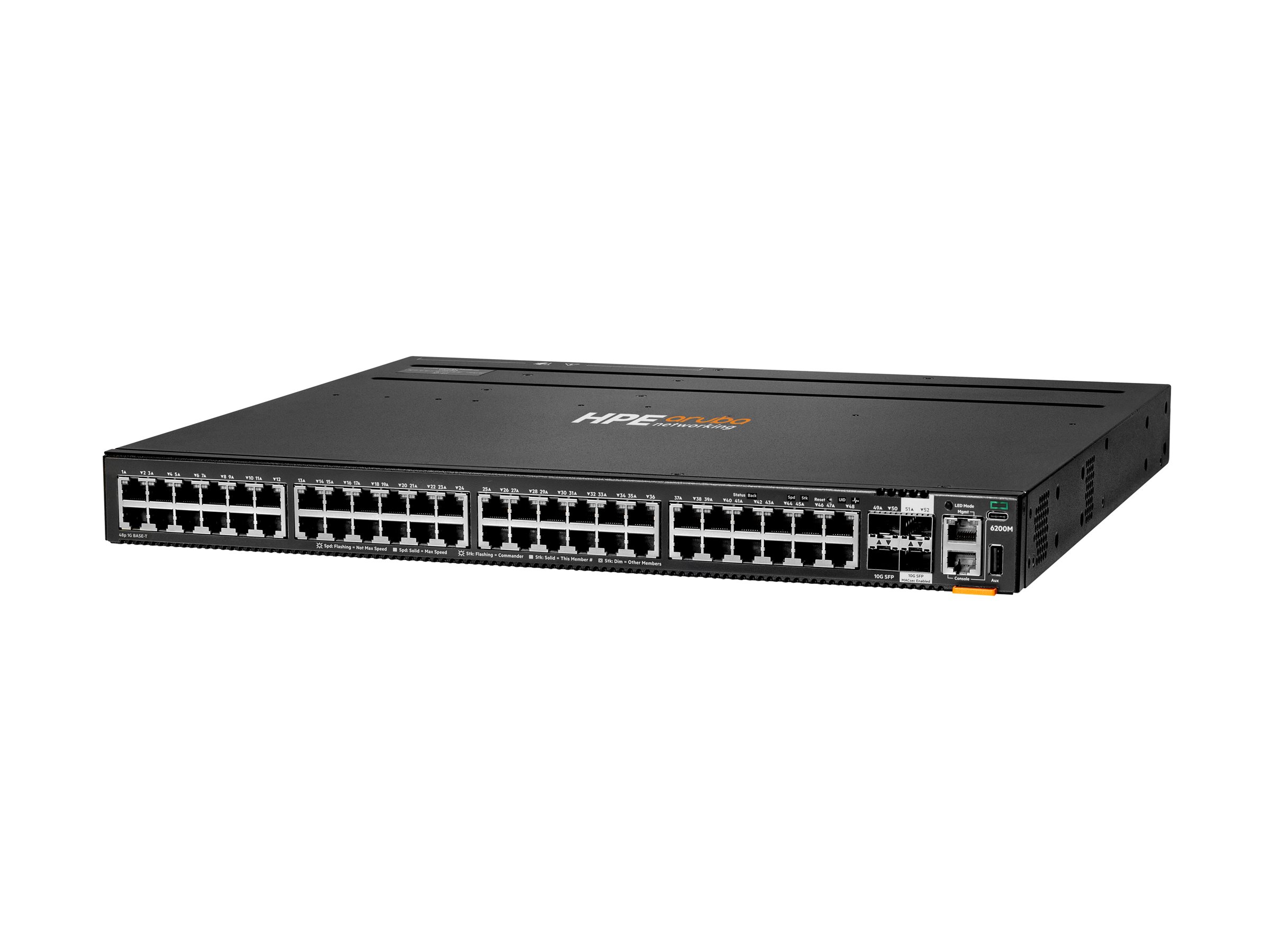

HPE Aruba 6200M 48G 4SFP+ Switch 48-Port Gigabit Network
- HPE Aruba 6200M 48G 4SFP+ Switch Switch Max. Stacking Distance 10 km L3 Managed 48 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit SFP+ (uplink/stacking) front and side to back rack mountable BTO
Availability: In stock
Product description: HPE Aruba 6200M 48G 4SFP+ Switch - switch - Max. Stacking Distance 10 km - 48 gates - Managed - rack mountable Device type: Switch - 48 ports - L3 - Managed - stackable Packing type: Front and side to back mountable on rack 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit SFP+ (uplink/stacking) Performance: Switching Capacity: 176 Gbps Capacity: 130.9 Mpps Latency (1 Gbps): 2.28 µs Latency (10 Gbps): 1.46 µs Packet Buffer Size: 8 MB Stacking Bandwidth: 40 Gbps Capacity: Switched virtual interfaces (SVIs): 128 IPv4 host table capacity: 8000 IPv6 host table capacity: 8000 IPv4 routes (Unicast): 2000 IPv6 routes (Unicast): 2000 IGMP groups: 1000 MLD groups: 1000 IPv4 ACL entries (ingress): 1000 IPv6 ACL entries (ingress): 1000 MAC ACL entries (ingress): 1000 IPv4 ACL entries (egress): 512 IPv6 ACL entries (egress): 256 MAC ACL entries (egress): 512 MAC address table size: 16,000 entries Jumbo frame support: 9220 bytes Routing protocol: OSPF, RIP-2, OSPFv2, OSPFv3, ECMP Protocol for remote management: SNMP, SNMP 3, SNMP 2c, CLI Features: Layer 2 switching, ARP supported, DiffServ supported, VRRP support, QoS, TPM, ECMP, UDLD, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, security slot (Kensington security lock compatible), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI management portal, UTM, EQS Compliance Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP) Power: AC 100-120/200-240 V (50/60 Hz) Dimensions (W x D x H): 44.2 cm x 38.5 cm x 4.4 cm Weight: 5.73 kg System Requirements: AOS-CX Price type: BTO Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Authentication method | RADIUS, TACACS+ |
| Characteristics | Layer 2 switching, ARP supported, DiffServ supported, VRRP support, QoS, TPM, ECMP, UDLD, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, security opening (Kensington security lock compatible), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI management portal, UTM, EQS |
| Device type | Switch - 48 ports - L3 - Managed - stackable |
| Flash memory | 16 GB |
| Jumbo frame support | 9220 bytes |
| Capacity | Switched virtual interfaces (SVIs): 128 | IPv4 host table capacity: 8000 | IPv6 host table capacity: 8000 | IPv4 routes (Unicast): 2000 | IPv6 routes (Unicast): 2000 | IGMP groups: 1000 | MLD groups: 1000 | IPv4 ACL entries (ingress): 1000 | IPv6 ACL Entries (Entry): 1000 | MAC ACL entries (ingress): 1000 | IPv4 ACL entries (egress): 512 | IPv6 ACL entries (egress): 256 | MAC ACL entries (egress): 512 |
| Encryption algorithm | MD5, SSL, FIPS 140-2 |
| MAC address table size | 16,000 posts |
| Max number of units in a stack | 8 |
| Compliance Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Packing type | Front and side to back mountable on rack 1U |
| Gates | 48 x 10/100/1000 + 4 x 1 Gigabit/10 Gigabit SFP+ (uplink/stacking) |
| Performance | Switching capacity: 176 Gbps | Capacity: 130.9 Mpps | Latency (1 Gbps): 2.28 µs | Latency (10 Gbps): 1.46 µs | Packet Buffer Size: 8 MB | Stacking bandwidth: 40 Gbps |
| Processor | 1 x ARM: 1.8 GHz |
| Protocol for remote administration | SNMP, SNMP 3, SNMP 2c, CLI |
| RAM | 8 GB DDR4 SDRAM |
| Routing protocol | OSPF, RIP-2, OSPFv2, OSPFv3, ECMP |
| Subtype | Gigabit Ethernet |
| Interface | 48 x 10/100/1000 Base-T RJ-45 | 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256 | 1 x console RJ-45 | 1 x administration RJ-45 | 1 x console (USB) Type C | 1 x USB Type A host |
| Max. number supported | 2 |
| Necessary tension | AC 100-120/200-240 V (50/60 Hz) |
| Power unit | Internal power supply (not installed) |
| Power consumption during operation | 75 watts |
| Power consumption standby | 56 watts |
| Compliance Standards | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, Laser Class 1, WEEE, VCCI Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, CISPR 35, EN 60825-1:2014, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, UL 62368-1 Third Edition, EN 61000-3-3:2013/A1:2019, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:202 |
| Price type | BTO |
| Equipment included | Stand set (2 pole), fan tray (field replaceable, hot swappable) |
| OS required | AOS-CX |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 5.73 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 90% (non-condensing) |
| Max. operating temperature | 45 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
