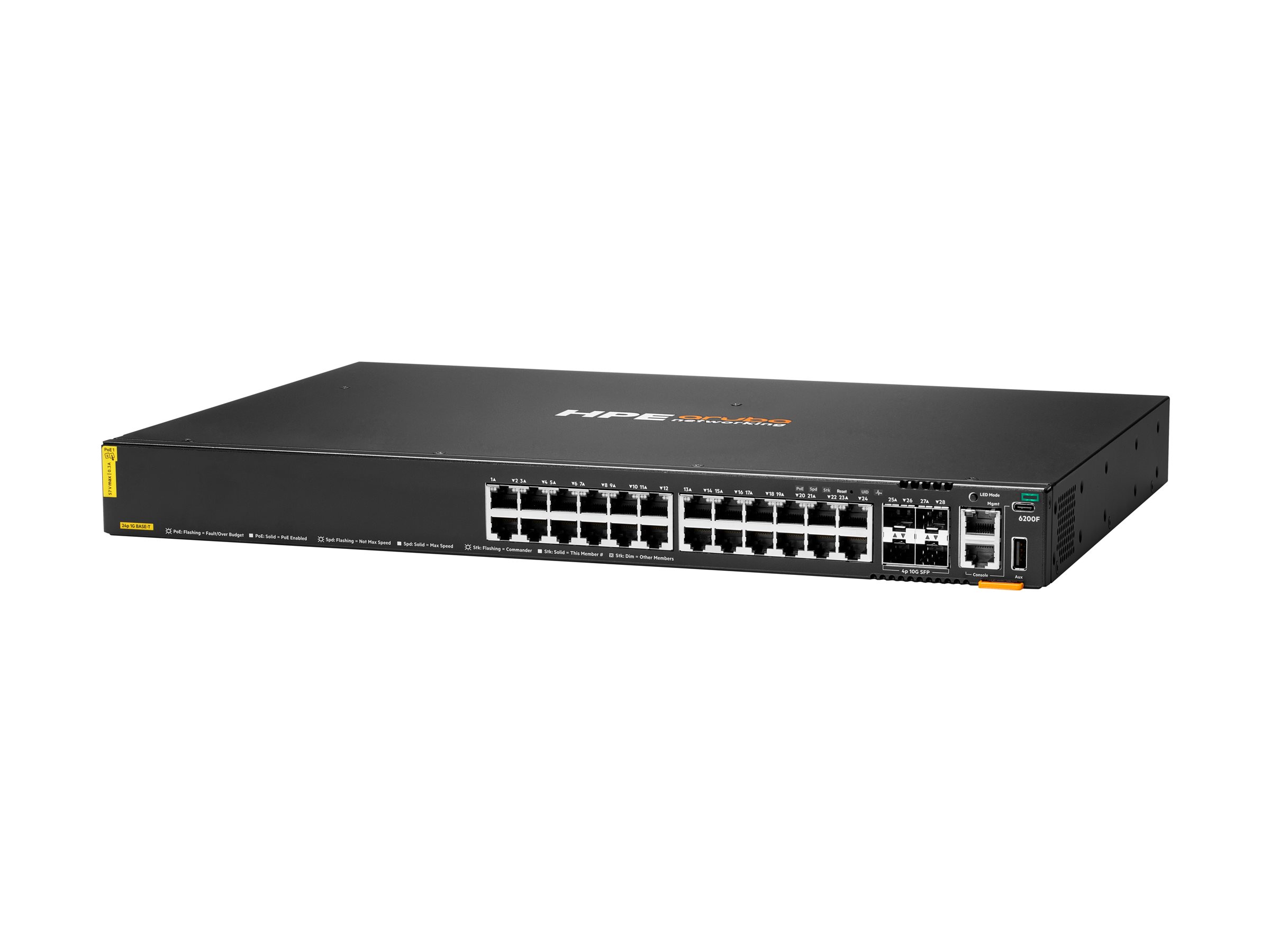

HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch 24 ports 10 Gigabit
- HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch Switch Max. Stacking Distance 10 km L3 Managed 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) rack mountable PoE+ (370 W) BTO
Availability: In stock
Product description: HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch - switch - Max. Stacking Distance 10 km - 24 gates - Managed - rack mountable Device type: Switch - 24 ports - L3 - Managed - stackable Package type: Mountable on rack 1U Subtype: 10 Gigabit Ethernet Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Power Over Ethernet (PoE): PoE+ PoE budget: 370 W Performance: Switching capacity: 128 Gbps Capacity: 95.2 Mpps Latency (1 Gbps): 2.28 µs Latency (10 Gbps): 1.46 µs Stacking bandwidth: 40 Gbps Capacity: Packet Buffer Size: 8 MB IPv4 ACL Entries (Ingress): 5120 IPv6 ACL Entries (Ingress): 1280 MAC ACL Entries (Ingress): 5120 IPv4 ACL Entries (Egress): 2048 IPv6 ACL Entries (Egress): 512 MAC ACL Entries (Egress): 2048 Jumbo frame support: 9220 bytes Routing protocol: RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD Remote management protocol: RMON, CLI, MIB Features: VRRP support, TPM, UDLD, DWRR, CoS, ToS, BPDU, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol Compliance Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az Dimensions (W x D x H): 44.25 cm x 30.43 cm x 4.37 cm Weight: 4.39 kg Localization: English / Europe Price type: BTO Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Characteristics | VRRP support, TPM, UDLD, DWRR, CoS, ToS, BPDU, RPVST+, LLDP, UTM, EQS, Address Resolution Protocol |
| Device type | Switch - 24 ports - L3 - Managed - stackable |
| Jumbo frame support | 9220 bytes |
| Capacity | Packet Buffer Size: 8 MB | IPv4 ACL entries (ingress): 5120 | IPv6 ACL entries (input): 1280 | MAC ACL entries (ingress): 5120 | IPv4 ACL entries (egress): 2048 | IPv6 ACL Entries (Output): 512 | MAC ACL entries (egress): 2048 |
| Encryption algorithm | SSL, FIPS 140-2 |
| Max number of units in a stack | 8 |
| Compliance Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Packing type | Mountable on rack 1U |
| PoE budget | 370 W |
| Gates | 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Switching capacity: 128 Gbps | Capacity: 95.2 Mpps | Latency (1 Gbps): 2.28 µs | Latency (10 Gbps): 1.46 µs | Stacking bandwidth: 40 Gbps |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| Protocol for remote administration | RMON, CLI, MIB |
| Routing protocol | RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD |
| Subtype | 10 Gigabit Ethernet |
| Interface | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 4 x 100/1000/10G SFP+ uplink | 1 x USB-C console | 1 x console RJ-45 | 1 x administration | 1 x USB Type A host |
| Power unit | Internal power supply |
| Localization | English / Europe |
| Compliance Standards | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CAN/CSA C22. |
| Price type | BTO |
| Width | 44.25 cm |
| Depth | 30.43 cm |
| Height | 4.37 cm |
| Weight | 4.39 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 5 - 95% (non-condensing) |
| Storage humidity level | 5 - 95% (non-condensing) |
| Max. operating temperature | 45 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
