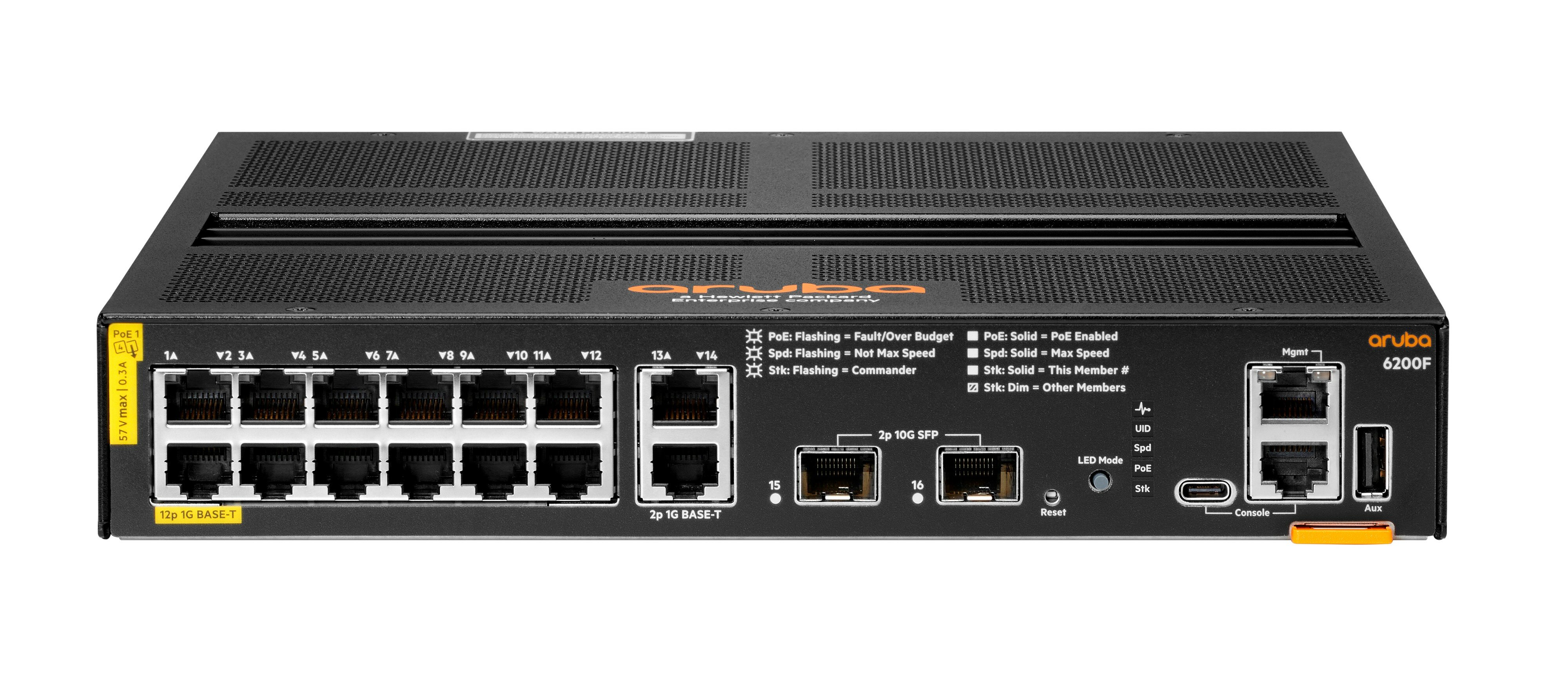

HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch Switch 12-porte Gigabit Ethernet PoE+
€1490,26
HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - Switch - L3 - Administreret - 12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+ - monterbar på stativ - PoE+ (139 W)
Availability: In stock
Secure payment · Fast delivery
EAN:0190017536682Categories:, , Brand:
HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - Switch - L3 - Administreret - 12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+ - monterbar på stativ - PoE+ (139 W)
Specifications
Specifications
| Produktbeskrivelse | HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - switch - 12 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 12 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 139 W |
| Præstation | Omkoblingskapacitet: 68 Gbps<br>Kapacitet: 50,5 Mpps<br>Latens (1 Gbps): 3.8 µs<br>Latens (10 Gbps): 2.9 µs<br>Pakkebufferstørrelse: 12.38 MB<br>Stablende båndbredde: 20 Gbps |
| Kapacitet | Switched virtual interfaces (SVIs): 128<br>IPv4 værtstabelkapacitet: 8000<br>IPv6 værtstabelkapacitet: 8000<br>IPv4 ruter (Unicast): 2000<br>IPv6 ruter (Unicast): 2000<br>IGMP-grupper: 1000<br>MLD-grupper: 1000<br>IPv4 ACL-indgange (ingress): 1000<br>IPv6 ACL-poster (indgang): 1000<br>MAC ACL-indgange (ingress): 1000<br>IPv4 ACL-indgange (egress): 512<br>IPv6 ACL-poster (udgang): 256<br>MAC ACL-indgange (egress): 512 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 9198 byte |
| Routingprotokol | OSPF, RIP-2, OSPFv2, OSPFv3, ECMP |
| Protokol til fjernadministration | SNMP, SNMP 3, SNMP 2c, CLI |
| Egenskaber | Layer 2 switching, understøttet af ARP, DiffServ understøttet, VRRP support, QoS, TPM, ECMP, UDLD, blæserløs, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, sikkerhedsåbning (Kensington-sikkerhedslåskompatibel), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI administrationsportal, UTM, EQS |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Effekt | AC 90-264 V (50/60 Hz) |
| Dimensioner (B x D x H) | 25.4 cm x 30.5 cm x 4.39 cm |
| Vægt | 3.24 kg |
| Systemkrav | AOS-CX |
| Producentgaranti | Begrænset livtidsgaranti |
| Ports | 12 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 2 x 1/10G SFP ports PHY-less 2 x 1GbE ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Memory and processor | CPU: Quad-core Arm® Cortex-A72 at 1.2 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Throughput | Up to 45.1 Mpps |
| Switching capacity | 68 Gbps |
| PoE capability | 139W |
| Stacking capabilities | 8-members |
| Management features | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Power supply | Fixed power supply Up to 139W of Class 4 PoE Power |
| Input voltage | 100V–120V/200V–240V |
| Power consumption | 170W at 230 VAC |
| Product dimensions (metric) | 4.39 x 44.247 x 32.54 cm |
| Weight | 5.09 kg |
