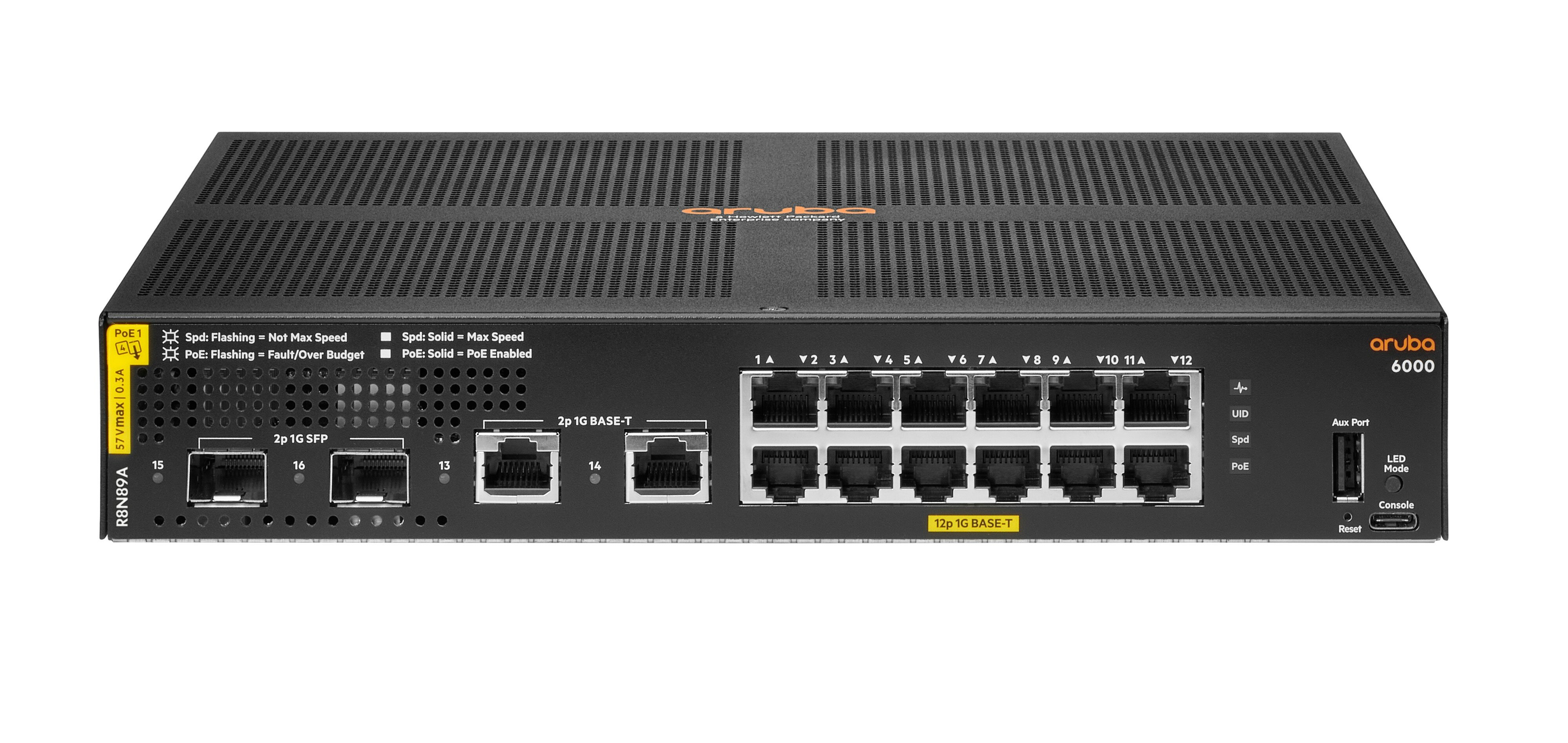

HPE Aruba 6000 12G Class4 2G/2SFP 139W Switch 12-porte Gigabit PoE
€660,60
HPE Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch - Switch - Administreret - 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 1000Base-T - monterbar på stativ - PoE (139 W)
Availability: In stock
Secure payment · Fast delivery
EAN:5715063069158Categories:, , Brand:
HPE Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch - Switch - Administreret - 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 1000Base-T - monterbar på stativ - PoE (139 W)
Specifications
Specifications
| Produktbeskrivelse | HPE Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch - switch - 12 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 12 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 1000Base-T |
| Power Over Ethernet (PoE) | PoE |
| PoE-budget | 139 W |
| Præstation | Pakkebufferstørrelse: 12.38 MB<br>Kapacitet: 23.8 Mpps<br>Omkoblingskapacitet: 32 Gbps<br>Latens (1 Gbps): 2.3 µs<br>Latens (10 Gbps): 2.6 µs |
| Kapacitet | Switched virtual interfaces (SVIs): 16<br>ARP-indtastninger: 1024<br>IPv4 ruter (Unicast): 512<br>IPv6 ruter (Unicast): 512<br>IGMP-grupper: 512<br>MLD-grupper: 512<br>IPv4 ACL-indgange (ingress): 256<br>IPv6 ACL-poster (indgang): 128<br>MAC ACL-indgange (ingress): 256 |
| MAC adresse table størrelse | 8192 indtastninger |
| Jumborammesupport | 9198 byte |
| Routingprotokol | IGMPv2, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Egenskaber | Datatransport, understøttet af BOOTP, understøttet af ARP, VLAN-understøttet, DiffServ understøttet, IPv6 understøttet, SNTP-understøttet, sFlow, MSTP support, TFTP support, ACL support, MDL snooping, TPM, blæserløs, LACP support, LLDP support, DHCP klient, MIB, NDP, SNMP-support, ICMP, DNS-klient, LLDP-MED, UDP, Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressering |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 25.4 cm x 25.5 cm x 4.39 cm |
| Vægt | 2.78 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Switched virtual interfaces (SVIs): 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CN |
| Device Type | Switch - 12 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, MLD snoopin |
| Flash Memory | 16 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 8192 entries |
| Performance | Packet buffer size: 12.38 MB | Throughput: 23.8 Mpps | Switching capacity: 32 Gbps | Latency (1 Gbps): 2.3 µs | Latency (10 Gbps): 2.6 µs |
| PoE Budget | 139 W |
| Ports | 12 x 10/100/1000BASE-T ports 2 x 1 G SFP ports 2 x 1 GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Routing Protocol | IGMPv2, IGMPv3 |
| Subtype | Gigabit Ethernet |
| Interfaces | 12 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 139 W | 2 x 10Gbit LAN SFP | 2 x Gigabit LAN | 1 x USB Type A | 1 x USB-C console |
| Power Consumption Operational | 21.9 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Depth | 25.5 cm |
| Height | 4.39 cm |
| Weight | 2.8 kg |
| Width | 25.4 cm |
| Service & Support | Limited warranty - lifetime |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Memory and processor | CPU: Dual-core Arm® Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC |
| Latency | 1 Gbps: 2.3 μSec |
| Throughput | 23.8 Mpps |
| Switching capacity | 32 Gbps |
| PoE capability | 139W Class 4 PoE/PoE+ |
| Management features | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Input voltage | 100–127 VAC / 200–240 VAC |
| Power consumption | Max. Power (w/o PoE): 21.9W Max. Power (w/ PoE): 170W |
| Product dimensions (metric) | 4.4 x 25.4 x 25.5 cm |
