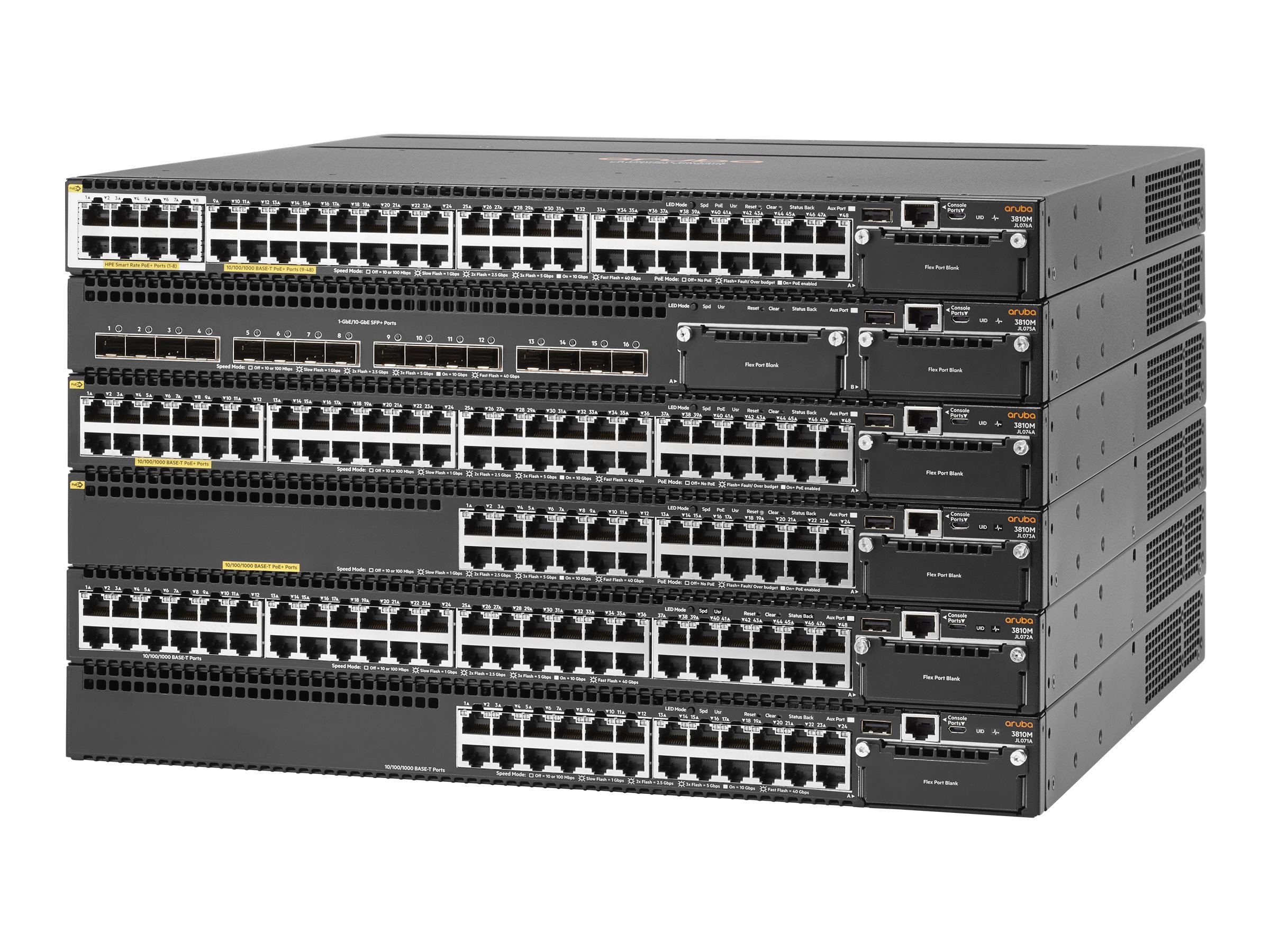

HPE Aruba 3810M 16SFP 2-slot Switch 16-ports 10 Gigabit Network
- HPE Aruba 3810M 16SFP+ 2 slot Switch Switch L3 Managed 16 x 10 Gigabit SFP+ rack mountable
Availability: In stock
Product description: HPE Aruba 3810M 16SFP+ 2-slot Switch - switch - 16 ports - Managed - rack mountable Device type: Switch - 16 ports - L3 - Managed - stackable Package type: Mountable on rack 1U Subtype: 10 Gigabit Ethernet Ports: 16 x 10 Gigabit SFP+ Performance: Latency (1 Gbps): 2.8 µs Latency (10 Gbps): 1.8 µs Latency (40 Gbps): 1.5 µs Throughput (64-byte packet size): up to 285.7 Mpps Routing/switching capacity: 480 Gbps Switching fabric rate: 508 Gbps Capacity: IPv4 entry in routing table: 10000 IPv6 entry in forwarding table: 5000 MAC address table size: 64K input memory Jumbo frame support: Yes Routing protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, CLI, XRMON, SSH 6 Features: Data transport, DHCP support, supported by BOOTP, VLAN supported, auto-uplink (auto MDI/MDI-X), Syslog supported, IPv6 supported, half duplex mode, full duplex mode, sFlow, VRRP support, MSTP support, QoS, PVST+, STP Root Guard, UDLD, LACP, dynamic ARP protection, DHCP protection, GVRP, Zero Touch Auto Provisioning, MVRP, Ingress Layer 2 MAC ACLs, CoS, MACsec support, DNS client, layer 4 prioritization:, 13.5 MB packet buffer Compliance Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX Excess voltage: Yes Dimensions (W x D x H): 44.25 cm x 43.13 cm x 4.39 cm Weight: 6.02 kg Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Characteristics | Data transport, DHCP support, supported by BOOTP, VLAN supported, auto-uplink (auto MDI/MDI-X), Syslog supported, IPv6 supported, half duplex mode, full duplex mode, sFlow, VRRP support, MSTP support, QoS, PVST+, STP Root Guard, UDLD, LACP, dynamic ARP protection, DHCP protection, GVRP, Zero Touch Auto Provisioning, MVRP, Ingress Layer 2 MAC ACLs, CoS, MACsec support, DNS client, layer 4 prioritization:, 13.5 MB packet buffer |
| Device type | Switch - 16 ports - L3 - Managed - stackable |
| Flash memory | 1 GB |
| Jumbo frame support | Yes |
| Capacity | IPv4 entry in routing table: 10000 | IPv6 entry in forwarding table: 5000 |
| Encryption algorithm | MD5, SSL, TLS |
| MAC address table size | 64K input memory |
| Compliance Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX |
| Packing type | Mountable on rack 1U |
| Gates | 16 x 10 Gigabit SFP+ |
| Performance | Latency (1 Gbps): 2.8 µs | Latency (10 Gbps): 1.8 µs | Latency (40 Gbps): 1.5 µs | Throughput (64-byte packet size): up to 285.7 Mpps | Routing/switching capacity: 480 Gbps | Switching fabric speed: 508 Gbps |
| Processor | 2 |
| Protocol for remote administration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, CLI, XRMON, SSH 6 |
| RAM | 6 GB DDR3 SDRAM |
| Routing protocol | OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR |
| Subtype | 10 Gigabit Ethernet |
| Expansion openings | 1 (total) / 1 (free) x Stacking module | 2 (total) / 2 (free) x Expansion holder |
| Interface | 16 x 10 Gbit LAN SFP+ | 1 x serial (console) RJ-45 | 1 x administration RJ-45 | 1 x RJ-45 | 1 x Type B |
| Max. number supported | 2 |
| Excess voltage | Yes |
| Power unit | Internal power supply (not installed) - hot-plug |
| Compliance Standards | FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, VCCI Class A, EN55022:2010, IEC 60950-1:2005 Second Edition, EN 55024:2010, EN 62368-1 Second Edition, IEC 60825:2007, EN 60850-1:2007, IEC 60825-1:2007 Class 1, UL 62368-1 Second Edition, EN 61000-3-2:2006+A1:2009+A2:2009 Clas |
| Rack mount kit | Included |
| Equipment included | Blower tray |
| Width | 44.25 cm |
| Depth | 43.13 cm |
| Height | 4.39 cm |
| Weight | 6.02 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 90% (non-condensing) |
| Max. operating temperature | 45 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
