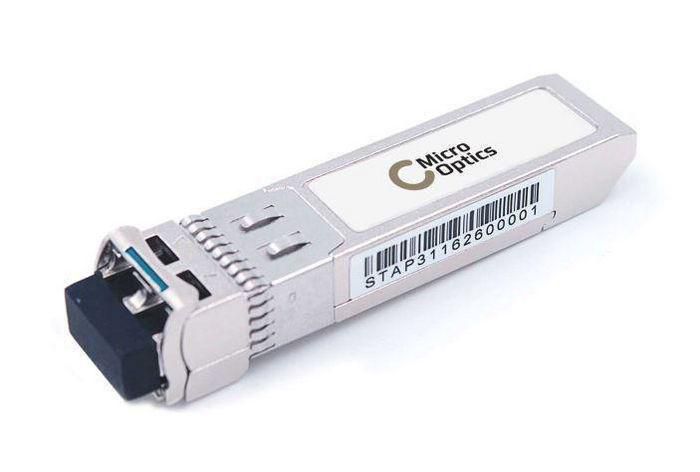

Lanview MO-OSX010000 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
€28,73
Lanview MO-OSX010000, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125,9/128 µm, 10000 m
Availability: In stock
Secure payment · Fast delivery
EAN:5704174855231Categories:, , Brand:
Lanview MO-OSX010000. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Metallic, Form factor: SFP+, Brand compatibility: Huawei. Compliance certificates: RoHS, Certification: MSA, RoHS. Width: 12 mm, Depth: 56 mm, Height: 8.5 mm. Package width: 105 mm, Package depth: 69 mm, Package height: 23 mm
Specifications
Specifications
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125,9/128 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Fiber ethernet cabling technology | 10GBASE |
| Product colour | Metallic |
| Form factor | SFP+ |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Huawei |
| Compatible products | OSX010000 |
| Compliance certificates | RoHS |
| Certification | MSA, RoHS |
| Sustainability compliance | Yes |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Width | 12 mm |
| Depth | 56 mm |
| Height | 8.5 mm |
| Weight | 10 g |
| Package width | 105 mm |
| Package depth | 69 mm |
| Package height | 23 mm |
| Package weight | 30 g |
| Warranty period | 3 year(s) |
