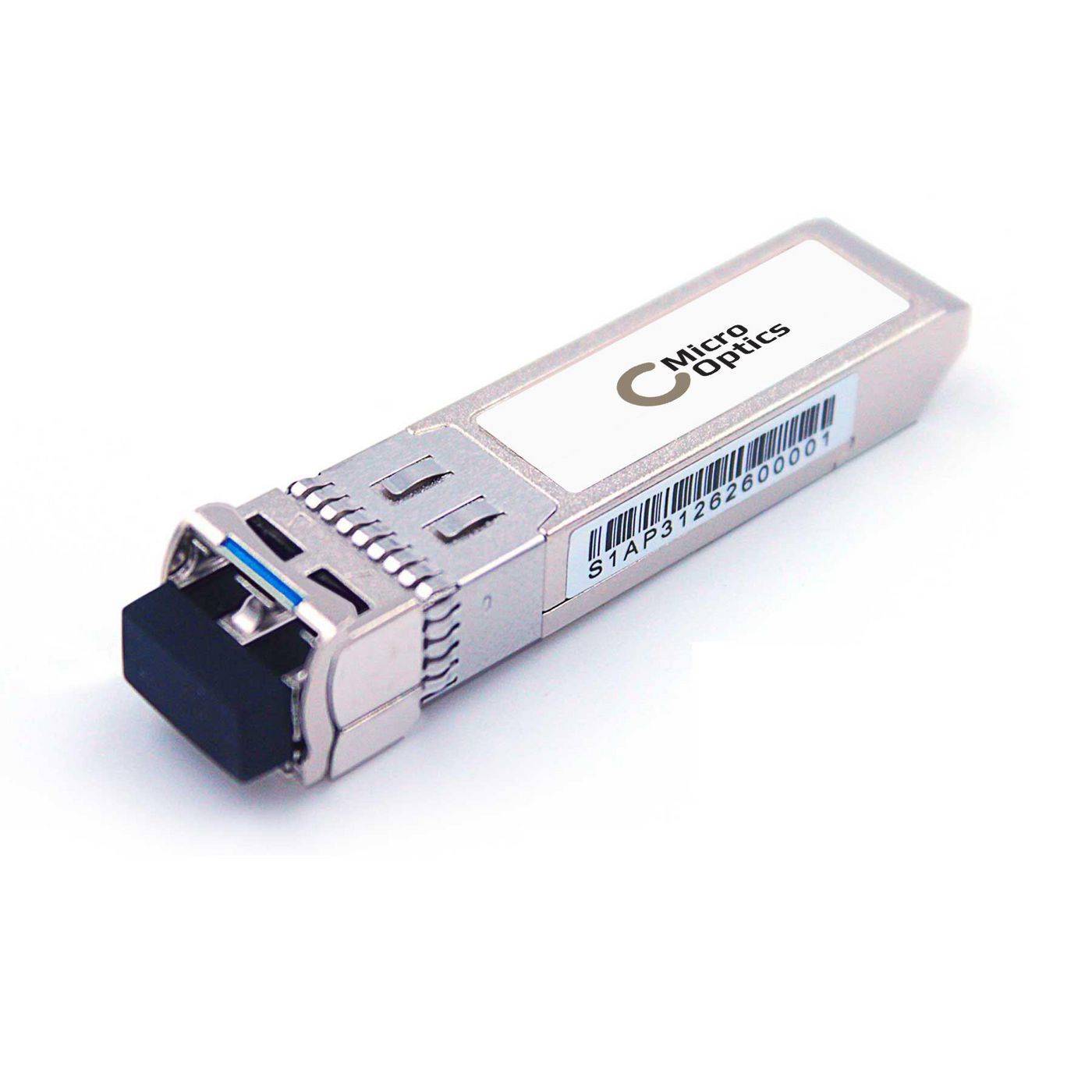

Lanview MO-GEN-LX network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm
€9,03
Lanview MO-GEN-LX, Fiber optic, 1000 Mbit/s, SFP, LC, LX, 20000 m
Availability: In stock
Secure payment · Fast delivery
EAN:5715063207468Categories:, , Brand:
Lanview MO-GEN-LX. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Metallic, Form factor: SFP, Compatible products: Generic LX. Compliance certificates: RoHS, Certification: RoHS, MSA. Width: 107 mm, Depth: 65 mm, Height: 23 mm. Quantity per pack: 1 pc(s)
Specifications
Specifications
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Link budget | 15 dB |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Metallic |
| Form factor | SFP |
| Plug and Play | Yes |
| Easy to install | Yes |
| Compatible products | Generic LX |
| Compliance certificates | RoHS |
| Certification | RoHS, MSA |
| Sustainability compliance | Yes |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Width | 107 mm |
| Depth | 65 mm |
| Height | 23 mm |
| Weight | 40 g |
| Quantity per pack | 1 pc(s) |
