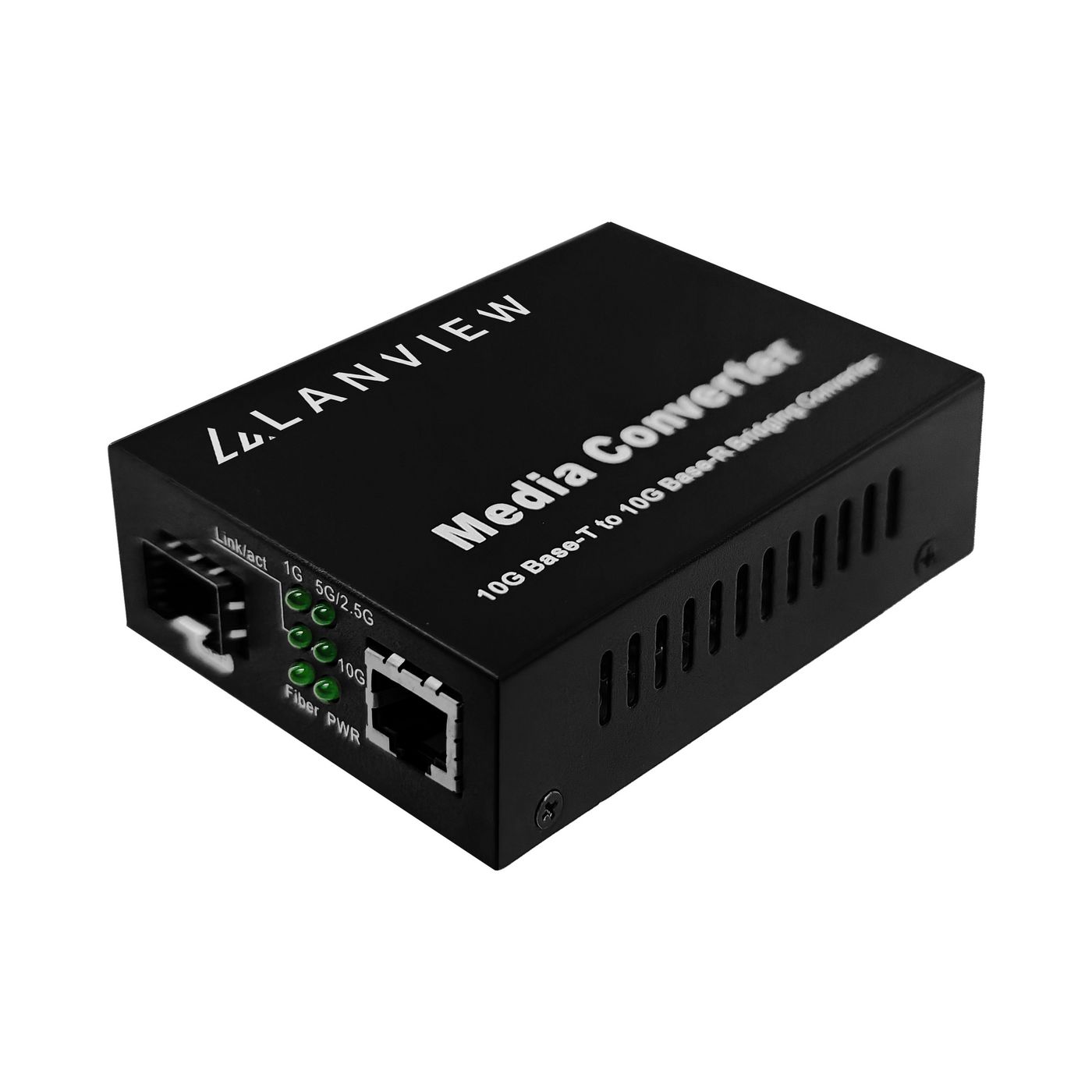

Lanview LVN-MED-SFP+-10GB-X network media converter
€108,55
Lanview LVN-MED-SFP+-10GB-X
Availability: In stock
Secure payment · Fast delivery
EAN:5715063521069Categories:, , Brand:
Lanview LVN-MED-SFP+-10GB-X
Specifications
Specifications
| Certification | CE, FCC, Rohs |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| LED indicators | 10/100/1000 Mbits/sec Link/Activity, FDX, Power, TX / RX |
| Product colour | Black |
| RoHS compliance | Yes |
| Management features | Plug and Play Yes |
| Plug and Play | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6A, Cat7, Fiber |
| Cabling technology | 1000Base-T,1000Base-SX,1000Base-LX,1000Base-LH,1000Base-ZX |
| Copper ethernet cabling technology | 10GBASE-T |
| Duplex system | Full, Half |
| Ethernet LAN data rates | 100, 1000, 10000, 2500, 5000 |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 10GBASE-X |
| Flow control support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | Connector(s) RJ45 Power requirements 12V 1A Transmission distance (max) 80 km |
| Connector(s) | RJ45 |
| Power requirements | 12V 1A |
| Transmission distance (max) | 80 km |
| Packaging content | Quick installation guide Yes User guide Yes |
| Quick installation guide Yes | User guide Yes |
| Quick installation guide | Yes |
| User guide | Yes |
| Performance | Fiber cable diameters supported (core/cladding) 50/125, 62.5/125, 9/125Fiber mode structure Multi-mode, Single-mode |
| Fiber cable diameters supported (core/cladding) 50/125, 62.5/125, 9/125 | Fiber mode structure Multi-mode, Single-mode |
| Fiber cable diameters supported (core/cladding) | 50/125, 62.5/125, 9/125 |
| Fiber mode structure | Multi-mode, Single-mode |
| Ports & interfaces | Connectivity technology Wired Fiber optic connector SFP+ |
| Connectivity technology Wired | Fiber optic connector SFP+ |
| Connectivity technology | Wired |
| Fiber optic connector | SFP+ |
| Power | Input current 1 AInput voltage 12 V |
| Input current 1 A | Input voltage 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Technical details | Sustainability certificates Low Voltage Directive (LVD), RoHSSustainability compliance Yes |
| Sustainability certificates Low Voltage Directive (LVD), RoHS | Sustainability compliance Yes |
| Sustainability certificates | Low Voltage Directive (LVD), RoHS |
| Sustainability compliance | Yes |
| Vendor information | Brand Name Lanview Warranty 2 År |
| Brand Name Lanview | Warranty 2 År |
| Brand Name | Lanview |
| Warranty | 2 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Media Converters |
| Hovedkategori | Network |
| Underkategori | Network Media Converters |
