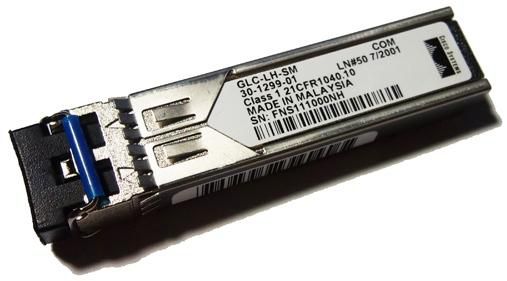

Cisco 1000BASE-LX/LH SFP Multimode and Single-Mode Fibers
The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.
Availability: In stock
The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.
Specifications
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Auto MDI/MDI-X | No |
| Fiber optic connector | LC |
| Fiber ports quantity | 2 |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.3z |
| SFP transceiver standard | LH, LX |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Wavelength | 1355 nm |
| Power consumption (typical) | 1,5 W |
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
