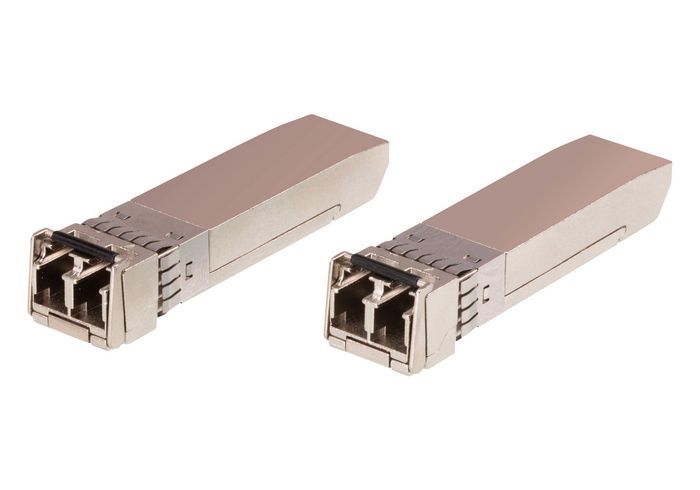

Aten 10G Multi-Mode/300M Fiber SFP+ Module
The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch’s SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
Availability: In stock
The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch’s SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
Specifications
| Certification | RoHS |
| Compliance certificates | RoHS |
| Product colour | Stainless steel |
| Master (outer) case gross weight | 1270 g |
| Master (outer) case height | 15,7 cm |
| Master (outer) case length | 28,8 cm |
| Master (outer) case net weight | 440 g |
| Master (outer) case width | 23,7 cm |
| Products per master (outer) case | 10 pc(s) |
| Ethernet interface type | 10 Gigabit Ethernet |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Fiber optic connector | SFP+ |
| Fiber type | Multi-mode |
| Transmission distance (max) | 0,3 km |
| Wavelength | 850 nm |
| Quantity per pack | 2 pc(s) |
| Number of products included | 2 pc(s) |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Hot-Plug support | Yes |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Maximum transfer distance | 300 m |
| Multi-mode fiber (MMF) supported | Yes |
| Networking standards | IEEE 802.3ae |
| SFP transceiver type | Fiber optic |
| Sustainability certificates | RoHS |
| Brand Name | Aten |
| Warranty | 2 years |
