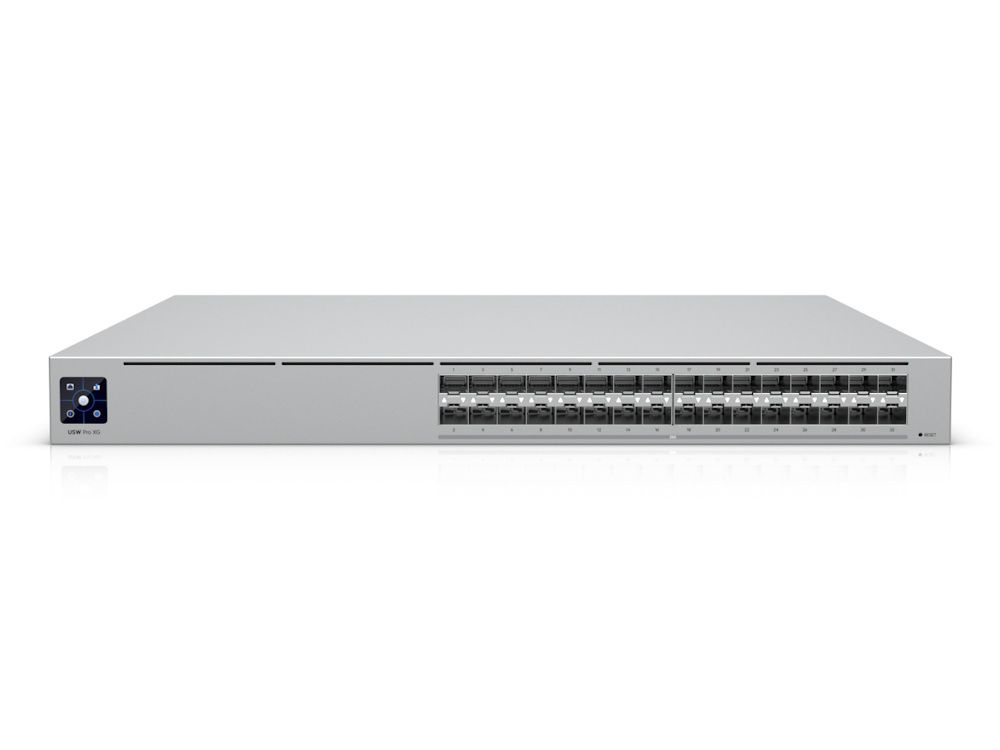

Features Ubiquiti Pro XG Aggregation Switch

Switch with 32x 25G SFP28 ports (also suitable for 10G/1G)Layer 3 switching with DHCP, routing and VLAN support1.6 Tbps switching capacity and 800 Gbps non-blocking throughputEtherlighting support for optimized SFP connectionsRedundant power supply via USP RPS (optional)Built-in 1.3" LCM touchscreen for managementExtensive Layer 2 security and multicast featuresNDAA compliant, suitable for government use

Switch designed for scalability

The Ubiquiti Pro XG Aggregation is ideally suited for applications where multiple uplinks or switches are connected to one central core switch. Think of campus networks, backbone structures or core distribution switches. Thanks to support for 256,000 IPv4 routes, 128,000 ARP entries and 32,000 MAC addresses, this switch is fully prepared for large networks with high traffic volumes.

Etherlighting technology

Thanks to the built-in Etherlighting technology, you can see at a glance which port is used for what. Each port can be assigned a specific color based on port speed, VLAN or physical location, eliminating the need for traditional colored labels. The lighting on the switch provides immediate visual insight into which port and cable are connected to which network part.

Safe, powerful and manageable

This rackmount switch (1U) is made of robust SGCC steel and is equipped with ESD and EMP protection. The switch also offers extensive Layer 2 and Layer 3 security features, such as DHCP snooping, MAC isolation and ACLs. Configuration and monitoring are easy to perform via the built-in LCM touchscreen or UniFi controller. The total power consumption is a maximum of 200W and redundant power supply is possible via a USP RPS module.

Package contents

• Ubiquiti Pro XG Aggregation Switch (USW-Pro-XG-Aggregation)
• Mounting material for 19" rack
• Power cable
• Quick Start Guide
