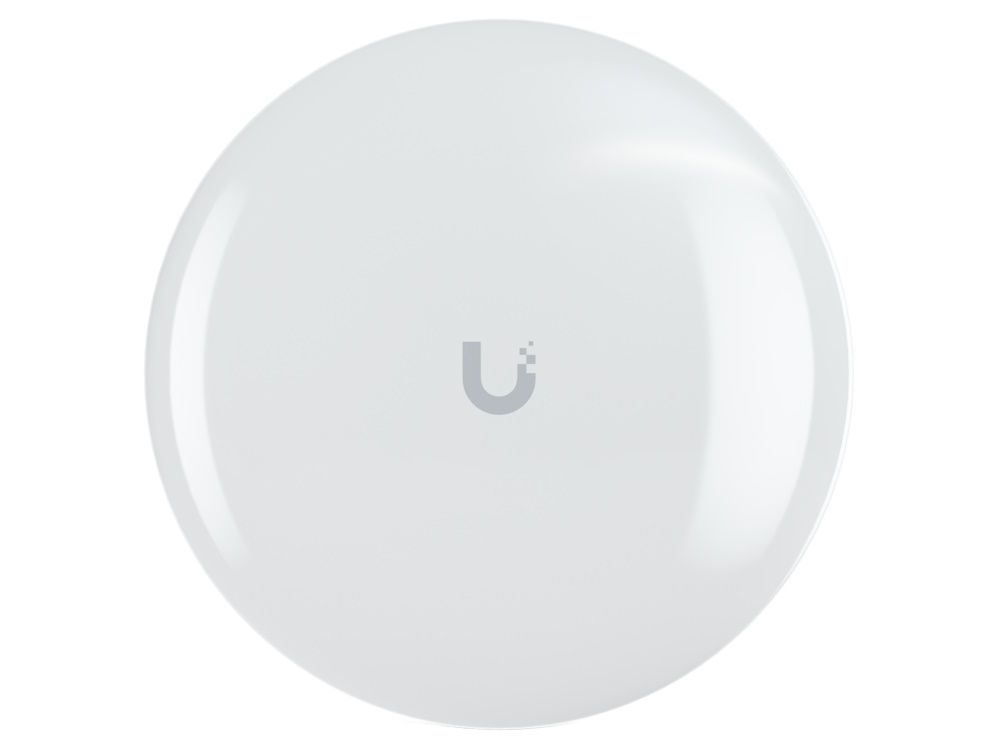

Features Ubiquiti UniFi Device Bridge Pro

5GHz bridge for WiFi reception over 5+ kmHandy for, among other things, a security camera without WiFiAlso for a seamless uplink with UniFi WiFi Auto-Link2x Gigabit Ethernet port, 1x with passive PoE outputGain: 19 dBi at 5GHzSuitable for pole mountingWater-resistant (IPX6) and UV-resistant housingManagement via UniFi controllerIncludes PoE adapter and mounting material

UniFi Bridge for WiFi reception remotely

The 5GHz Ubiquiti UniFi Device Bridge Pro receives WiFi over long distances up to 5+ km in a clear line of sight. Such a long-distance connection is useful for, for example, UniFi Protect IP cameras or other network devices that require a connection for proper operation. If a fixed connection on location is not possible, place the UDB-Pro and connect the camera to it. For example, the bridge connects via a point-to-point connection to a second Ubiquiti UniFi Device Bridge Pro or uplinks with UniFi WiFi Auto-Link.

More information about UniFi Device Bridging

Power over Ethernet power supply and pole mounting

In the packaging of the Ubiquiti UniFi Device Bridge Pro you will find a PoE adapter to also power the bridge. If you want to use PoE passthrough, you need PoE+ input. Then choose a suitable network switch to achieve this. In addition to the PoE adapter, you will also find mounting material in the box, with which you can attach the UDB-Pro to a pole. The housing is UV-resistant and waterproof (IPx6), making it ideal for outdoor installations.

Package contents

• Ubiquiti UniFi Device Bridge Pro (UDB-Pro)
• PoE adapter 48V, 0.32A
• Power cable
• Mounting material for pole mounting
• Please note: vFor PoE passthrough you need PoE+ input
