Features Ubiquiti UniFi Cloud Gateway Max (UCG-Max):

Compact gateway/router/NVR in one deviceWith 512 GB NVMe SSD storage for NVR1x 1/2.5 Gigabit Ethernet WAN, 4x 1/2.5 Gigabit Ethernet LANMaximum IDS/IPS throughput: 1.5 GbpsQuality of Service (QoS) supportExtensive security optionsVPN and VLAN optionsNetwork management via Ubiquiti UniFi NetworkAlso supports UniFi Protect, UniFi Talk, UniFi Access and UniFi Connect

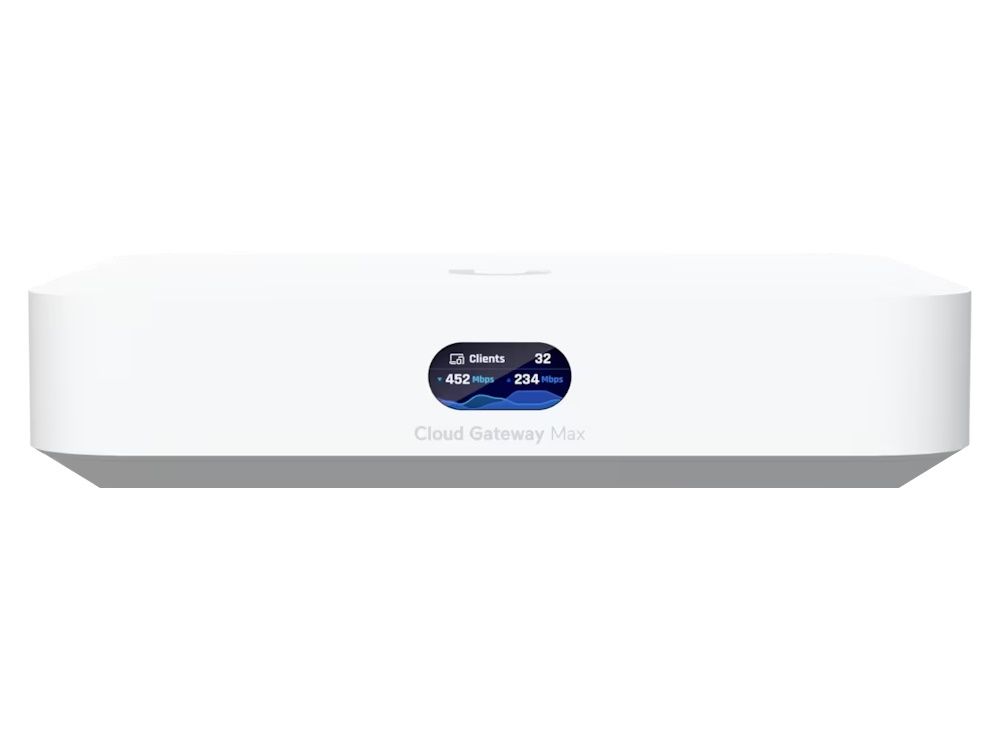

Ubiquiti UniFi Cloud Gateway Max with 512 GB SSD

A complete basis for your UniFi network can be found in the Ubiquiti UniFi Cloud Gateway Max. This router supports the full suite of UniFi management applications, including UniFi Network, UniFi Protect, UniFi Talk, UniFi Access, and UniFi Connect. This variant of the router is equipped with a 512 GB NVMe SSD storage for NVR options. It is therefore also possible to run your UniFi security system on this.

Dual WAN 2.5 Gigabit router

In addition to the 2.5 Gigabit WAN port, the Ubiquiti UniFi Cloud Gateway Max also has four 2.5 Gigabit LAN ports. If you want to use the dual-WAN option for more security, one LAN port can be configured as a WAN port. You then connect equipment that you want to provide wired internet to the remaining LAN ports. For example, connect your UniFi access points to the router so that you can also set up a wireless WiFi network. The maximum throughput speed of the router is 2.5 Gbps. The maximum IDS/IPS throughput speed of the gateway is 1.5 Gbps.

Network security

The security of your network is indispensable. That is why the Ubiquiti UniFi Cloud Gateway Max is equipped with a built-in firewall. Unsafe online content is blocked by filtering based on content, country, domain and advertisements. The gateway also supports signature-based IPS/IDS threat detection and you can set a VLAN.

VPN router

With the Ubiquiti UniFi Cloud Gateway Max you can set up different types of VPN connections. The gateway router supports OpenVPN and IPsec site-to-site VPN. This way you create a secure connection between, for example, the company network and the laptop of an employee who works at home or at another location.

Package contents

• Ubiquiti UniFi Cloud Gateway Max (UCG-Max)
• Built-in 512GB SSD
• USB-C power adapter
• Ethernet cable
