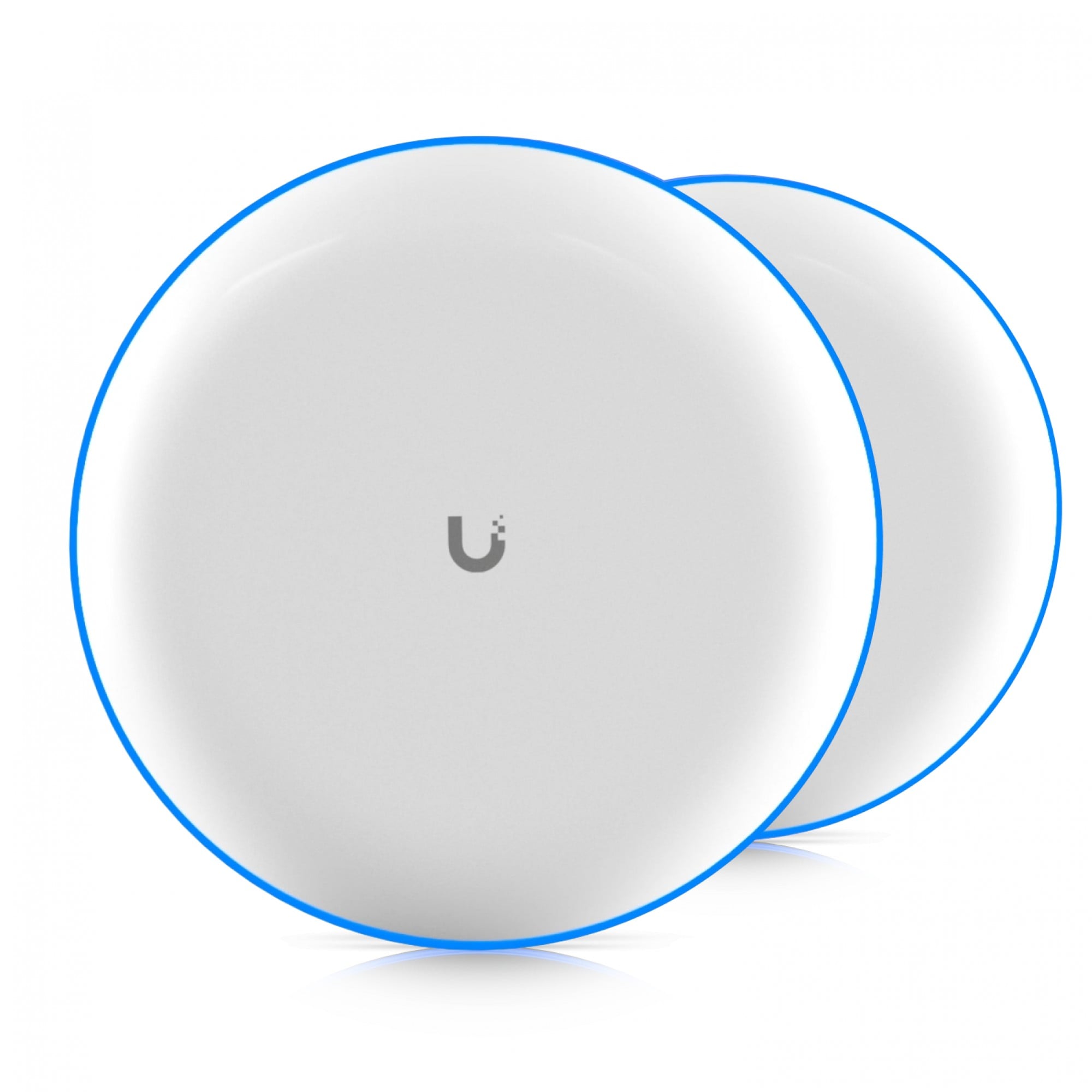

UniFi Building-to-Building Bridge features:

Suitable for a point-to-point WiFi connection

60 GHz radio with 5 GHz radio backup

Up to 1.7 Gbps throughput

Transmission power 25 dBm (5 GHz)

Gain: 17.2 dBi (60 GHz), 10 dBi (5 GHz) and 2 dBi (2.4 GHz)

Manage viaUniFi Network ControllerRange up to 500 meters (optimal speed up to 100 meters)

Powered via 802.3af PoE or 48V passive PoE

Includes pole mounting kit (wall mounting possible, not included)

Point-to-point connection over a short distance

With the Ubiquiti UniFi Building Bridge you create a stable point-to-point WiFi connection between two locations that are a short distance apart. This means you have access to the same fast network in both buildings with transfer speeds of up to 1.7 Gbps. In addition, the units use the 60 GHz frequency band, which means there is hardly any interference.

Configure, install and manage

It is of course possible to have your point-to-point bundle installed by one of our installersconfigureandinstall. If you decide to do it yourself, you can use the handy LED indicator. The LED lamp indicates which side you should point the access point for an optimal connection with the second access point. Connecting the two networks is effortless via the UniFi Network Controller. You can then easily manage your network remotely via your web browser or in theAndroidoriOSapp. Try theUniFi Network Controller demoin your web browser.

Package contents

• 2x Ubiquiti UniFi Building Bridge
• 2x Ball mounting
• 2x Locking ring
• 2x Metal mounting bracket
• 2x Gigabit PoE (48V, 0.32A) adapter with mounting bracket
• 2x Power cable
