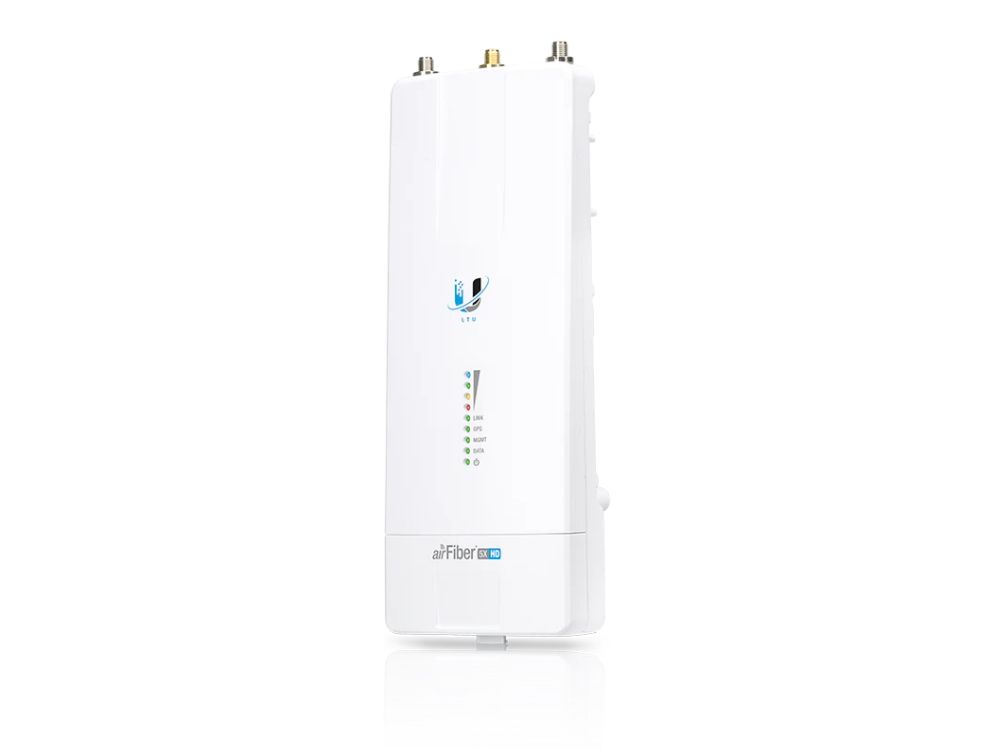

Features Ubiquiti airFiber AF-5XHD radio access point

LTU point-to-point access point (5GHz)

Compatible with airFiber X and RocketDish Antennas

Wireless speeds up to 1 Gbps

Maximum transmission power up to 29 dBm

2x redundant Gigabit Ethernet port for PPoE power supply

Supplied with 24V, 1A Gigabit PoE adapter

GPS synchronization

Dust-free and water-resistant (IP67)

Point to point WiFi

A high-quality point-to-point connection is an easy and cost-effective way to connect two locations. Because rerouting (underground) cables is not necessary, you save enormously on installation costs. By using the AF-5XHD in combination with Ubiquiti's airFiber Such a setup is often used to bring together networks at different locations or to establish a backup internet connection. A low latency connection is made. Thanks to the maximum power of 29dBm, large distances can be bridged.

5GHz LTU access point

The Ubiquiti airFiber AF-5XHD is an LTU access point with wireless speeds of up to 1 Gbps. The device operates on the 5GHz frequency and is highly resistant to interference, so you benefit from a fast and stable connection under all circumstances. For a complete 5 GHz point-to-point connection, pair your Ubiquiti airFiber X or RocketDish antennas with the AF-5XHD.

AirView and management in UNMS App

Airview is designed for monitoring noise within your connections. This application collects real-time data that is displayed spectrally in the clear dashboard. In addition, the AF-5XHD is supported by Ubiquiti's Network Management System. UNMS is a comprehensive management controller with an easy-to-navigate graphical user interface. This app provides direct access to the airOS configuration interface and provides the necessary configuration options.

Power over Ethernet

The AF-5XHD has 2 Gigabit Ethernet ports that support redundant PoE power supply and can therefore prevent device failure in the event of a power outage or short circuit. The ports also offer passive Power over Ethernet (802.3at PPoE), for which a Gigabit PoE adapter is included. This and the IP67 upgrade kit make it extra easy to set up a point-to-point connection at a location, such as on the roof of your building.

Package contents

• Ubiquiti AF-5XHD
• 24V 1A Gigabit PoE adapter
• GPS pole mounting
• IP67 upgrade kit
• Manual
