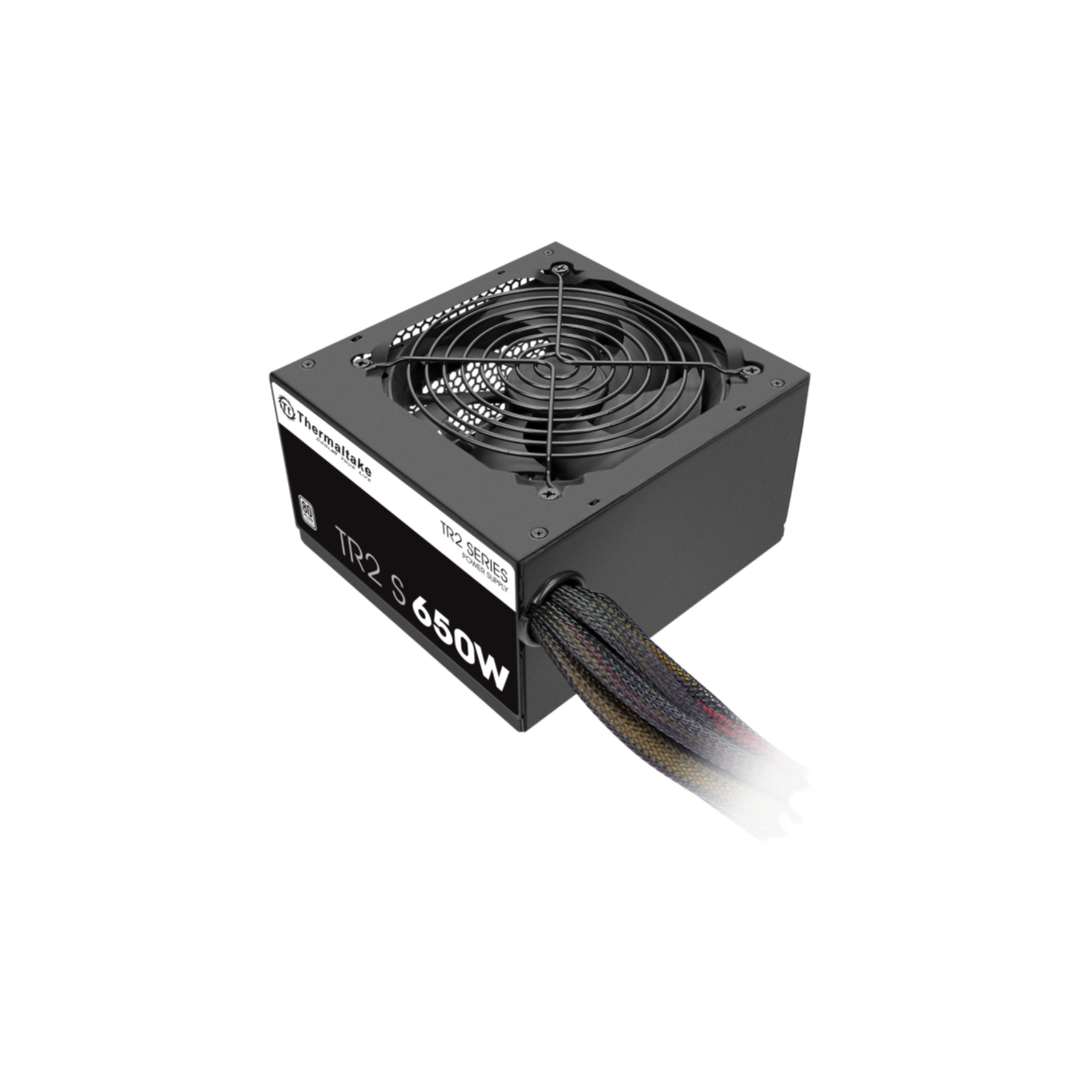

PC- Power Supply Thermaltake TR2S 650W
TR2 S 650W (DC to DC Version) The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance. Ultra Quiet 120mm Fan TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.| 80 PLUS 230V EU Certified TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified. Multiple Connectors The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage. High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion
Availability: In stock
TR2 S 650W (DC to DC Version) The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance. Ultra Quiet 120mm Fan TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.| 80 PLUS 230V EU Certified TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified. Multiple Connectors The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage. High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage. High amperage Single +12V Rail & DC to DC Design TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation. Built-in Industrial Grade Protection To protect the hardware, TR2 S series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Specifications
| Total power | 650 W |
| Cabling type | Non-Modular |
| Certification | FCC/ICES/CB/cTUVus |
| Form factor | ATX |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | yes |
| CPU power cable length | 65 cm |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Hydraulic |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | yes |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
