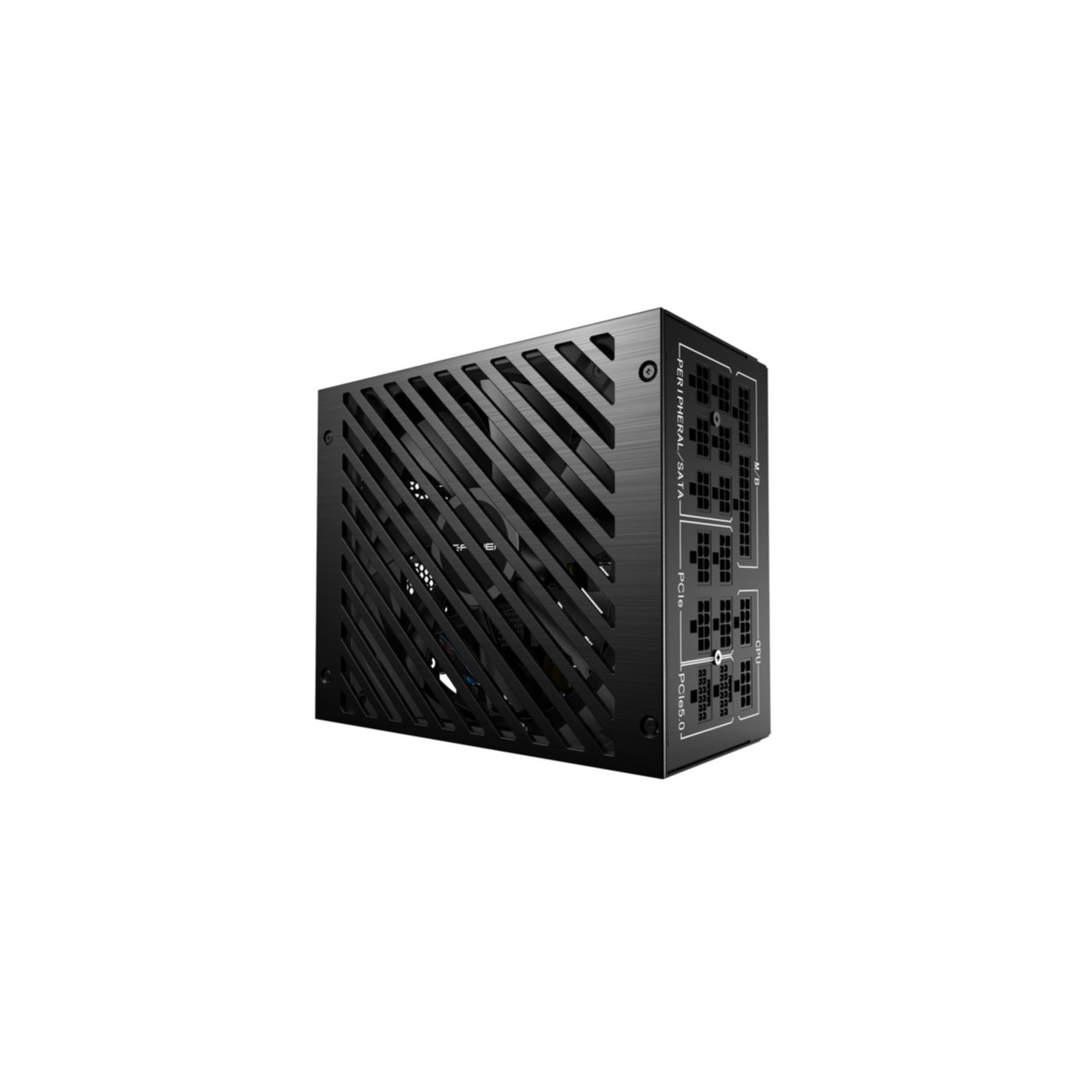

PC- Power Supply LC-Power LC1200P V3.0
€123,09
The LC1200P V3.0 is an 80 PLUS® PLATINUM certified, fully modular ATX power supply, which offers your system high stability and performance.
Availability: In stock
Secure payment · Fast delivery
EAN:4260070129827Categories:, , Brand:
The LC1200P V3.0 is an 80 PLUS® PLATINUM certified, fully modular ATX power supply, which offers your system high stability and performance.
Specifications
Specifications
| Total power | 1200 W |
| Cabling type | Fully-Modular |
| Certification | 80 PLUS Platinum |
| Form factor | ATX |
| AC input voltage | 110 - 240 V |
| AC input frequency | 47 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 20 |
| Number of PATA power connectors | 6 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 500, 800 mm |
| EPS power connector (8-pin) | yes |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12+4 pin) | 2 |
| ATX power connector (20+4 pin) | yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | yes |
| Cables included | PATA, PCIe, SATA |
| Compliance certificates | CE, cTUVus |
| Width | 86 mm |
| Depth | 180 mm |
| Height | 150 mm |
| Weight | 3.67 kg |
| Package width | 120 mm |
| Package depth | 295 mm |
| Package height | 225 mm |
| Package weight | 4.03 kg |
| Package type | Box |
| Sustainability compliance | yes |
| Warranty period | 3 year(s) |
