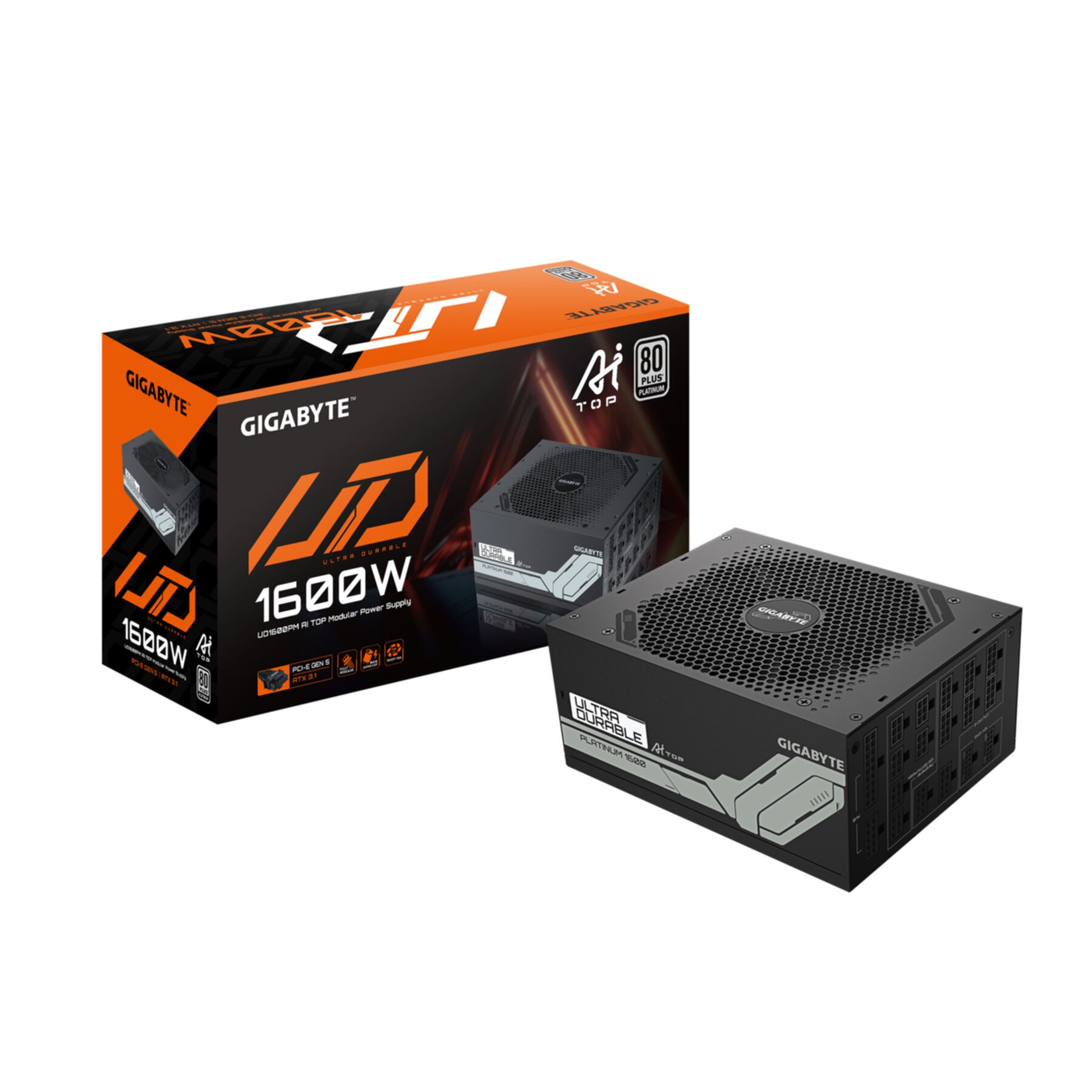

PC- Power Supply Gigabyte GP-UD1600PM PG5 1600W Platinum
16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.
Availability: In stock
16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.
Specifications
| Total power | 1600 W |
| Cabling type | Fully-Modular |
| Certification | 80 PLUS Platinum |
| Form factor | ATX |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 7.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3.5 A |
| Hold time | 16 ms |
| Efficiency | 92% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 16 |
| SATA power cable length | 150, 650 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | yes |
| ATX power connector (20+4 pin) | yes |
| PCI Express connector | yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | yes |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Weight | 5.3 kg |
| Package width | 410 mm |
| Package depth | 219 mm |
| Package height | 145 mm |
| Package weight | 5.58 kg |
| Package type | Box |
| Warranty period | 10 year(s) |
