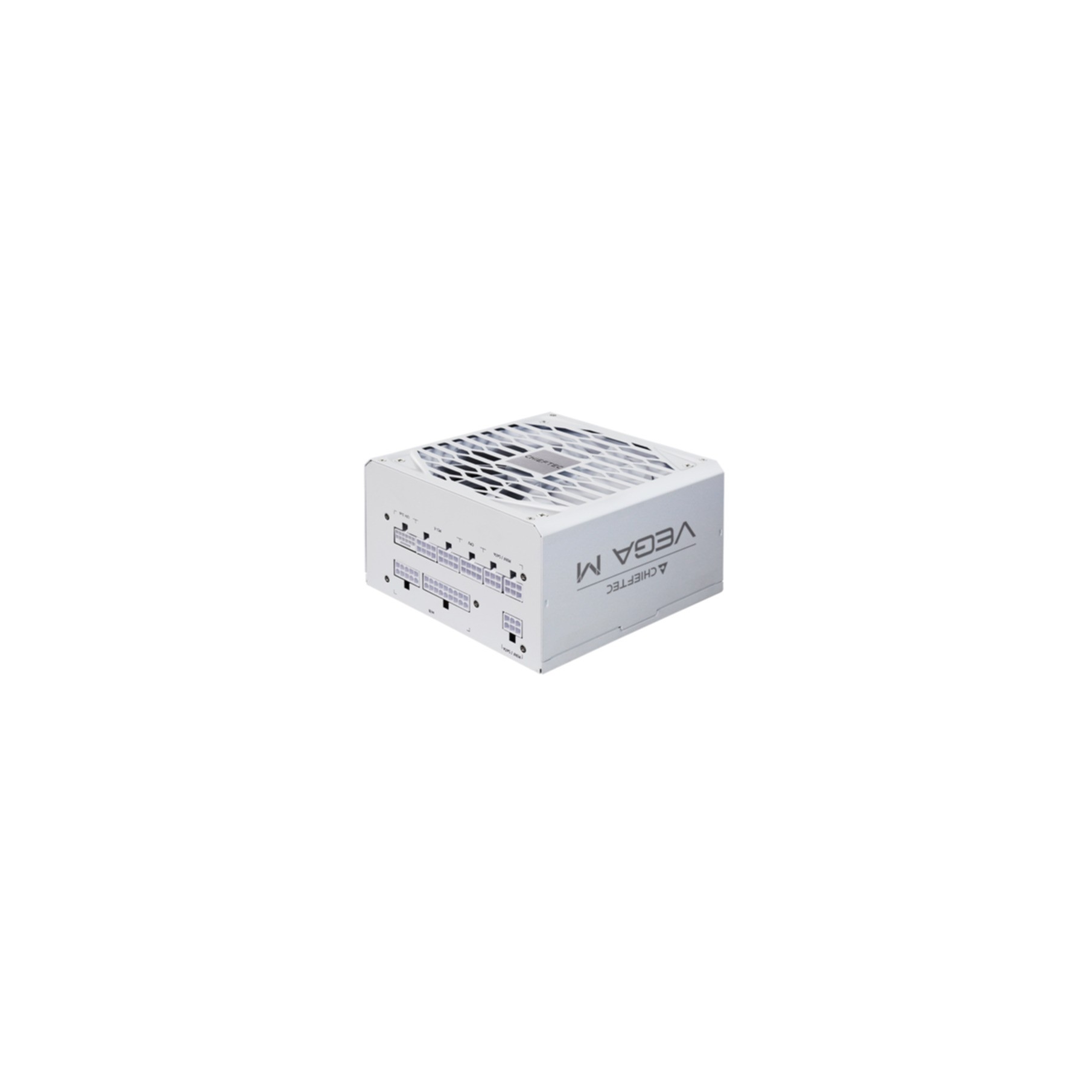

PC- Power Supply Chieftec VEGA M Series PPG-1000-CW White 1000W
€92,11
PC- Power Supply Chieftec VEGA M Series in the ECOM online shop. Discover this and other items in the Starting at 500 watt category.
Availability: In stock
Secure payment · Fast delivery
EAN:0753263079121Categories:, , Brand:
PC- Power Supply Chieftec VEGA M Series in the ECOM online shop. Discover this and other items in the Starting at 500 watt category.
Specifications
Specifications
| Total power | 1000 W |
| Cabling type | Fully-Modular |
| Certification | 80PLUS Gold |
| Form factor | ATX |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Surge and inrush, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150, 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150, 400 mm |
| EPS power connector (8-pin) | yes |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | yes |
| CPU power cable length | 65 cm |
| ATX Power connector (24-pin) | yes |
| PCI Express connector | yes |
| Number of EPS connectors | 2 |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Illumination | no |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 85 mm |
