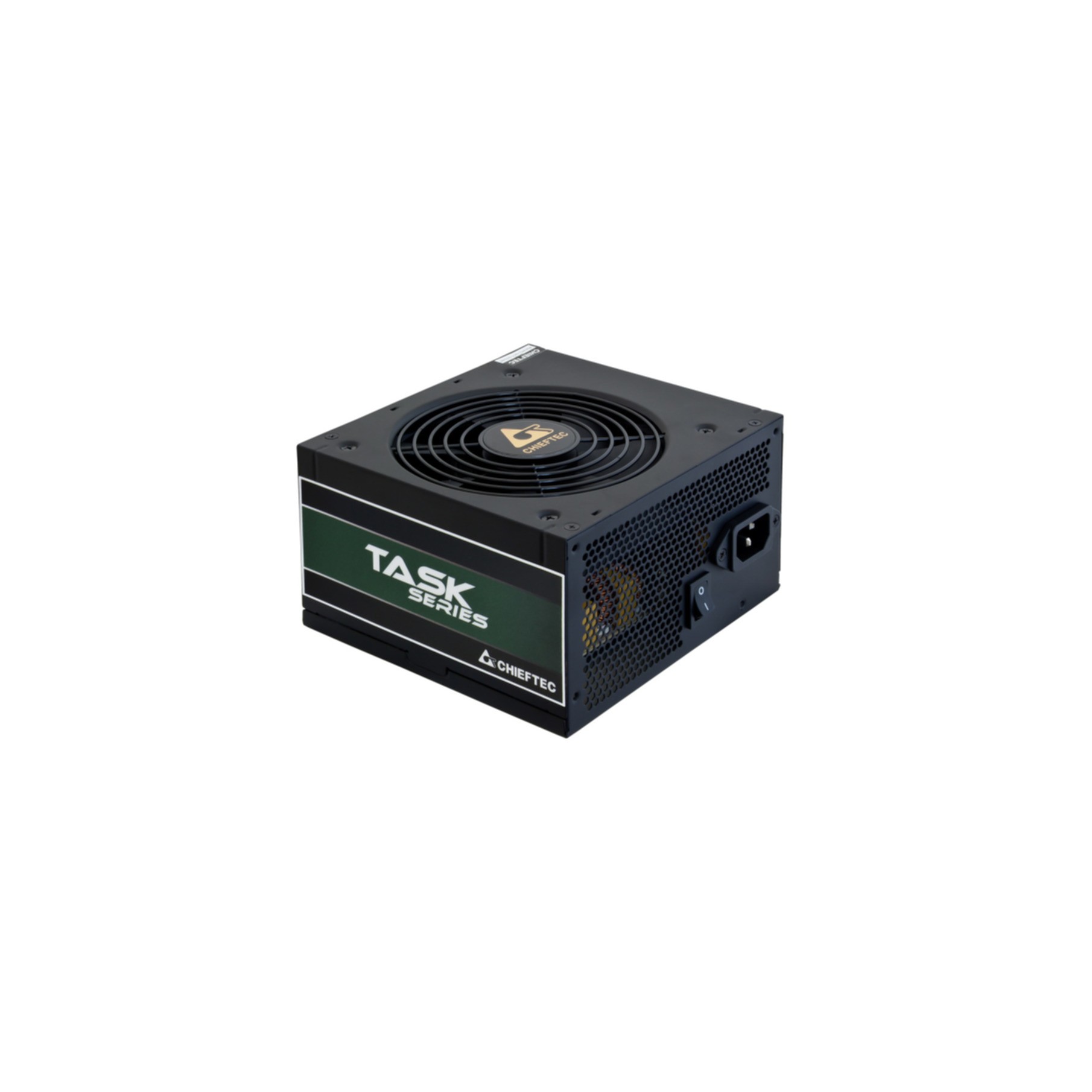

PC- Power Supply Chieftec TASK Series TPS-700S 700W
TPS-700S The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Availability: In stock
TPS-700S The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Specifications
| Total power | 700 W |
| Cabling type | Non-Modular |
| Certification | ErP, CE, CB, EAC, TUV |
| Form factor | ATX |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 648 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 19 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150, 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150, 500 mm |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| ATX power connector (20+4 pin) | yes |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Compliance certificates | RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1.74 kg |
| Package weight | 2.15 kg |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| EPS cable length | 65 cm |
