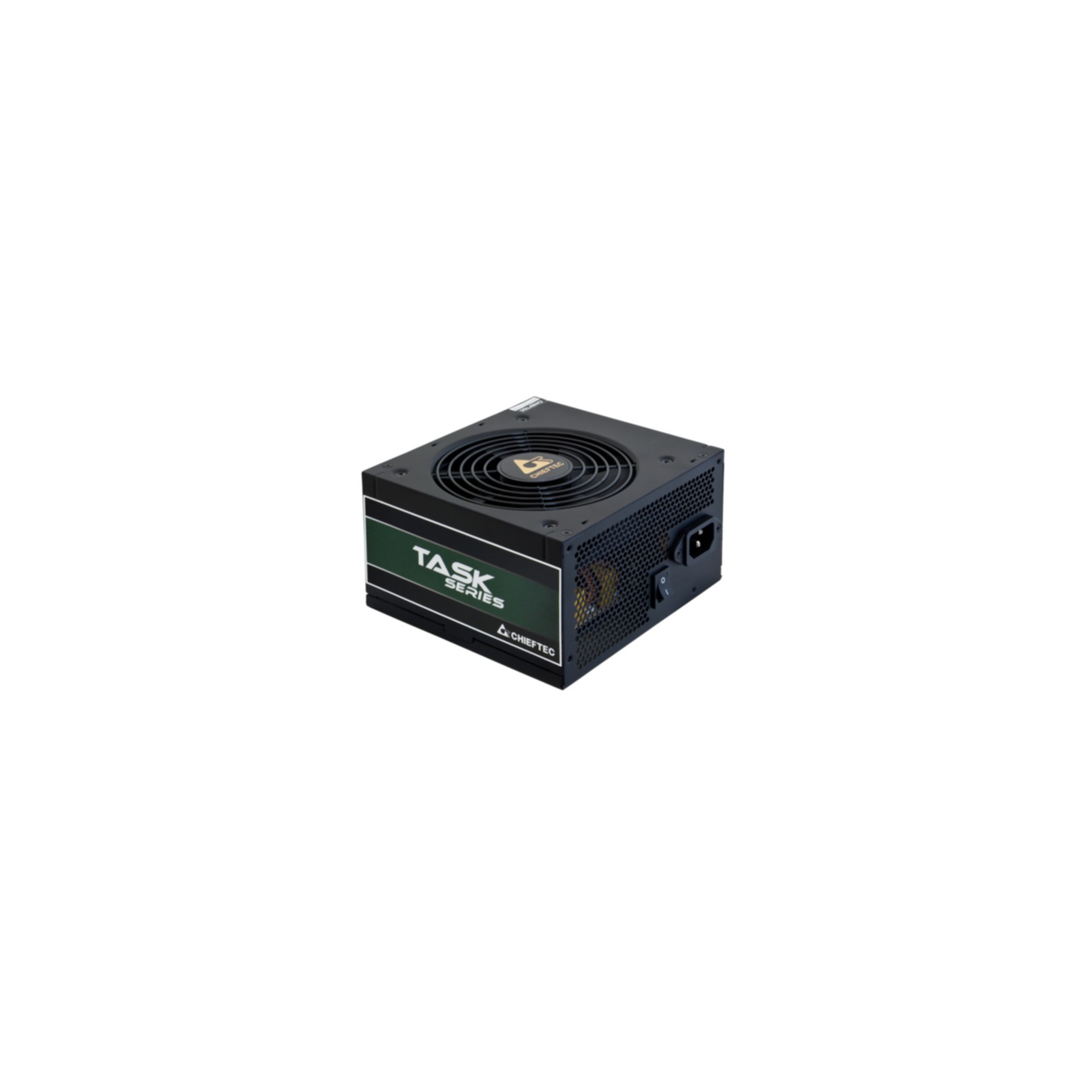

PC- Power Supply Chieftec TASK Series TPS-500S 500W
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Availability: In stock
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Specifications
| Total power | 500 W |
| Cabling type | Non-Modular |
| Certification | ErP, RoHS, CE, CB, EAC, TUV |
| Form factor | ATX |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 38 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Overload, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (6+2 pin) | 2 |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | yes |
| Compliance certificates | RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Harmonized System (HS) code | 84733020 |
