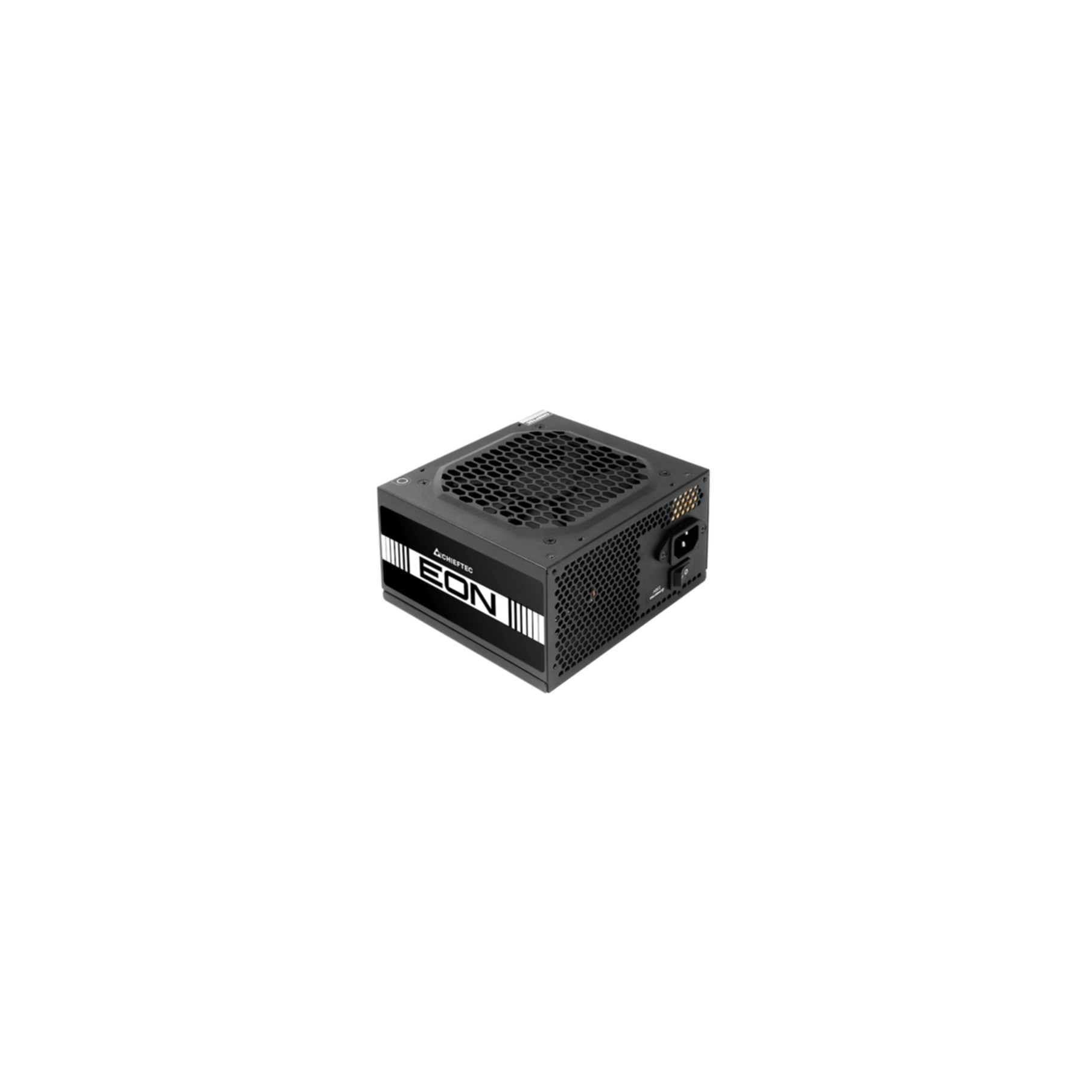

PC- Power Supply Chieftec EON Series ZPU-400S 400W
EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans. The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans. The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.
Availability: In stock
EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans. The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans. The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.
Specifications
| Total power | 400 W |
| Cabling type | Non-Modular |
| Certification | 80 PLUS |
| Form factor | ATX |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Maximum input current (@220V) | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 30 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Short circuit, Surge and inrush, Surge protection |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 550, 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 450 mm |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | yes |
| ATX power connector (20+4 pin) | yes |
| 80 PLUS certification | 80 PLUS |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | yes |
| Compliance certificates | CB, CE, EAC, RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.15 kg |
| Package weight | 1.4 kg |
| Package type | Box |
| Sustainability certificates | ErP |
| Warranty period | 2 year(s) |
