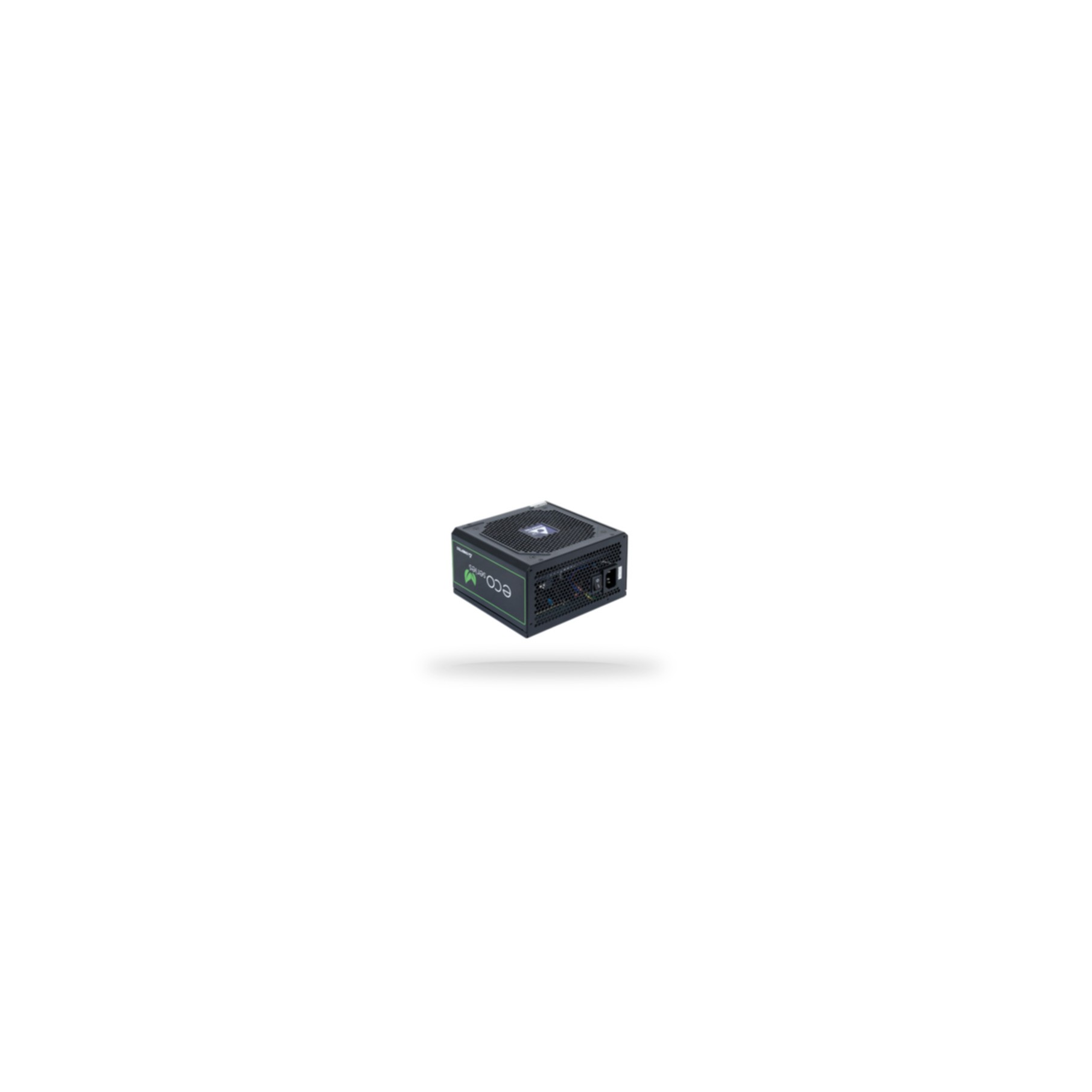

PC- Power Supply Chieftec ECO Series GPE-500S 500W
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
Availability: In stock
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
Specifications
| Total power | 500 W |
| Cabling type | Non-Modular |
| Form factor | PS/2 |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+5V) | 103 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 37.5 A |
| Max output current (+5V) | 20 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Product colour | Black |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
| Harmonized System (HS) code | 84733020 |
