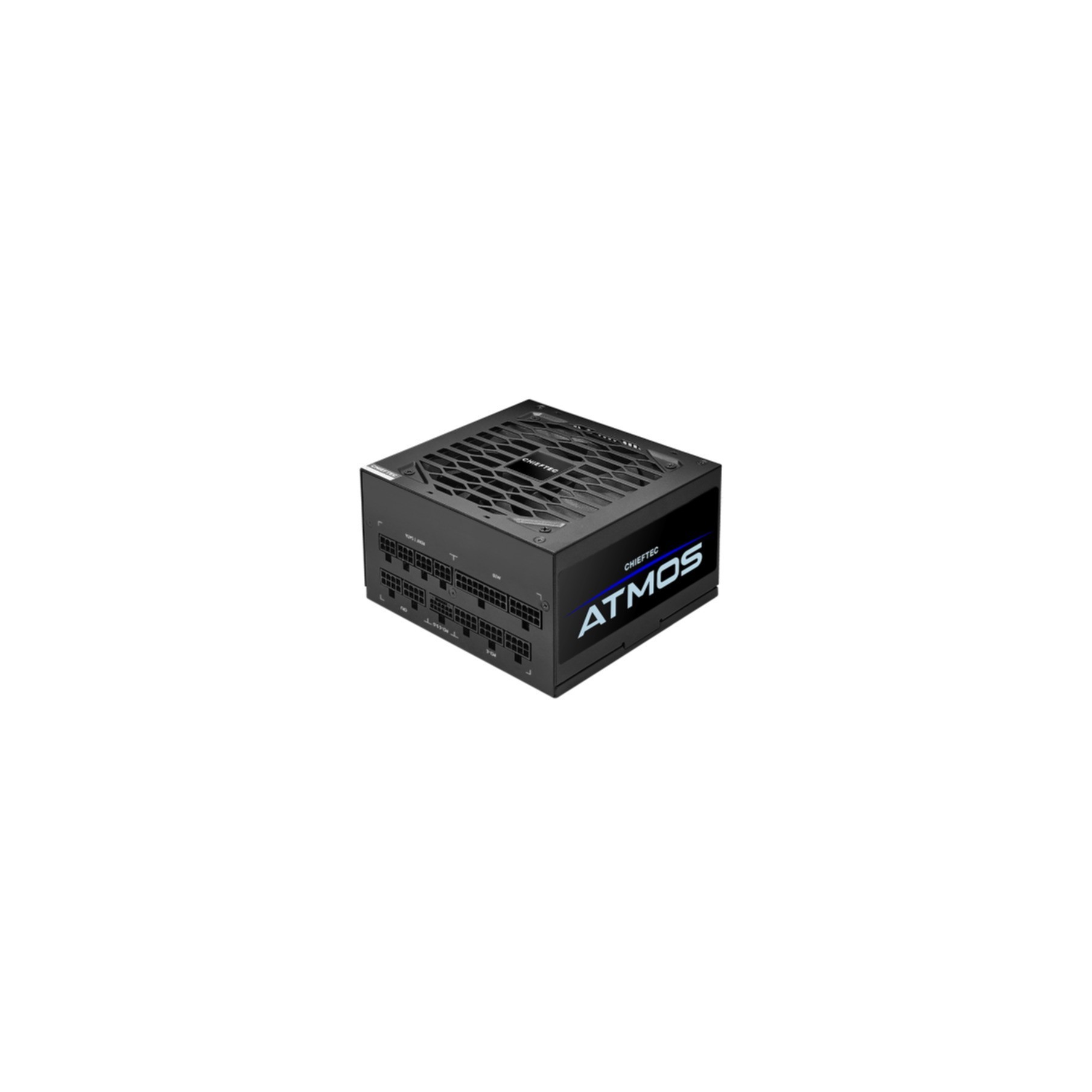

PC- Power Supply Chieftec ATMOS Series CPX-750FC 750W
The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional performance up to 850W. The ATMOS series features a state-of-the-art technical design including an SRC Full-bridge converter with DC-to-DC technology, and Japanese capacitors to ensure longevity and stability. The ATMOS 120mm FDB silent fan optimizes the balance between cooling and noise with excellent durability, while the ECO fan mode enables fanless operations at low loads. CHIEFTEC’s multiple security protection technology is designed to keep your system safe.
Availability: In stock
The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional performance up to 850W. The ATMOS series features a state-of-the-art technical design including an SRC Full-bridge converter with DC-to-DC technology, and Japanese capacitors to ensure longevity and stability. The ATMOS 120mm FDB silent fan optimizes the balance between cooling and noise with excellent durability, while the ECO fan mode enables fanless operations at low loads. CHIEFTEC’s multiple security protection technology is designed to keep your system safe.
Specifications
| Total power | 750 W |
| Cabling type | Fully-Modular |
| Certification | 80 PLUS Gold |
| Form factor | ATX |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 9 - 4.5 A |
| Maximum input current (@110V) | 9 A |
| Maximum input current (@220V) | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Short circuit, Surge and inrush |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 550, 650, 750 mm |
| Peripheral (Molex) power cable length | 550, 650, 750, 850 mm |
| EPS power connector (4+4 pin) | yes |
| PCI Express power connectors (16-pin) | 1 |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | yes |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.49 kg |
