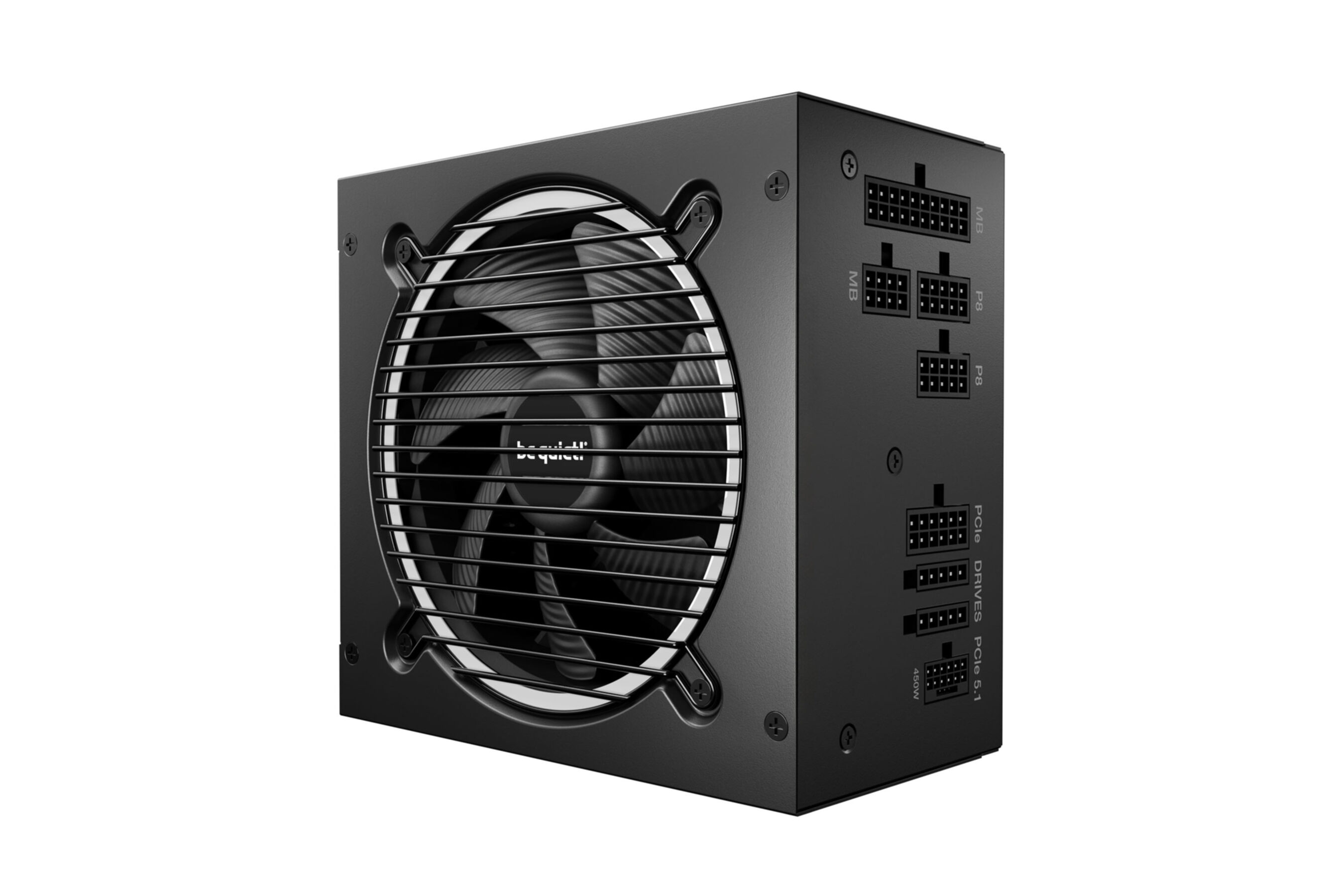

PC- Power Supply Be Quiet Pure Power 13 M 650W BP025EU
Exceptional quiet, superior features Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.
Availability: In stock
Exceptional quiet, superior features Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.
Specifications
| Total power | 650 W |
| Cabling type | Fully-Modular |
| Certification | 80 PLUS Gold |
| Form factor | ATX |
| Peak power | 720 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 22.5 ms |
| Efficiency | 92.8% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 500, 650, 800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 800, 950 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12-pin) | 1 |
| CPU P4 connector (4-pin) | 3 |
| CPU power connector (4+4 pin) | yes |
| CPU power cable length | 65 cm |
| PCI Express connector | yes |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 30.2 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1800 RPM |
| Illumination | no |
| On/off switch | yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TUV mark, UKCA, WEEE, cTUVus |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.32 kg |
| Package width | 210 mm |
| Package depth | 320 mm |
| Package height | 133 mm |
| Package weight | 3.1 kg |
| Sustainability certificates | ENERGY STAR, ErP |
| Shipping (inner) case length | 58 cm |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case height | 23.3 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 20.9 kg |
| Screws included | yes |
| Cable ties included | yes |
