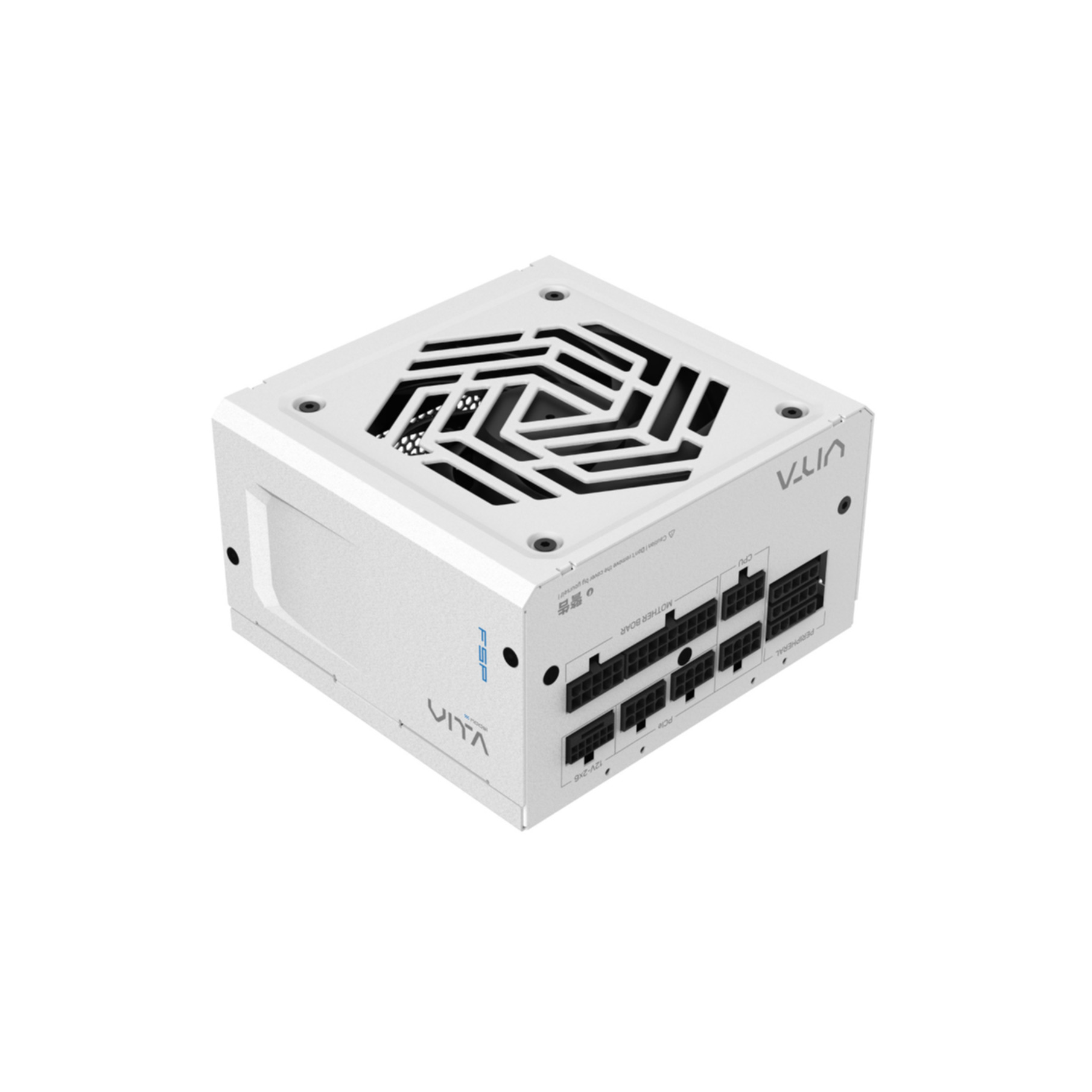

FSP VITA GM 1000W white PPA10A4013
Complies with Intel ® Power Design Guide ATX 3.1 Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades. High Efficiency in Gold-certified Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation. LLC Resonant-converter Topology with Synchronous Rectifier Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions. +5V & 3.3V DC to DC Circuit Design Increase the efficiency and stabilize the output voltage to ensure system stability. 105°C Japanese Bulk Capacitor Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power. 120 mm hydraulic bearing (HYB) fan Quality bearing keeps fan noise to a minimum while providing max
Availability: In stock
Complies with Intel ® Power Design Guide ATX 3.1 Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades. High Efficiency in Gold-certified Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation. LLC Resonant-converter Topology with Synchronous Rectifier Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions. +5V & 3.3V DC to DC Circuit Design Increase the efficiency and stabilize the output voltage to ensure system stability. 105°C Japanese Bulk Capacitor Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power. 120 mm hydraulic bearing (HYB) fan Quality bearing keeps fan noise to a minimum while providing maximum cooling performance. Powerhouse Single +12V Rail This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards. The Force Comes with You Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads. The Force Comes with You Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards. Fully Modular Cabling Design To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter. Compact PSU Size:140 x 150 x 86mm 140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance. Fortress-level Protection Our comprehensive circuit shields your valuable components from harm.
Specifications
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | No load operation, Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 500, 810, 965, 655 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 810, 965 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| CPU power connector (4+4 pin) | yes |
| CPU power cable length | 70 cm |
| PCI Express connector | yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | Hydraulic |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
