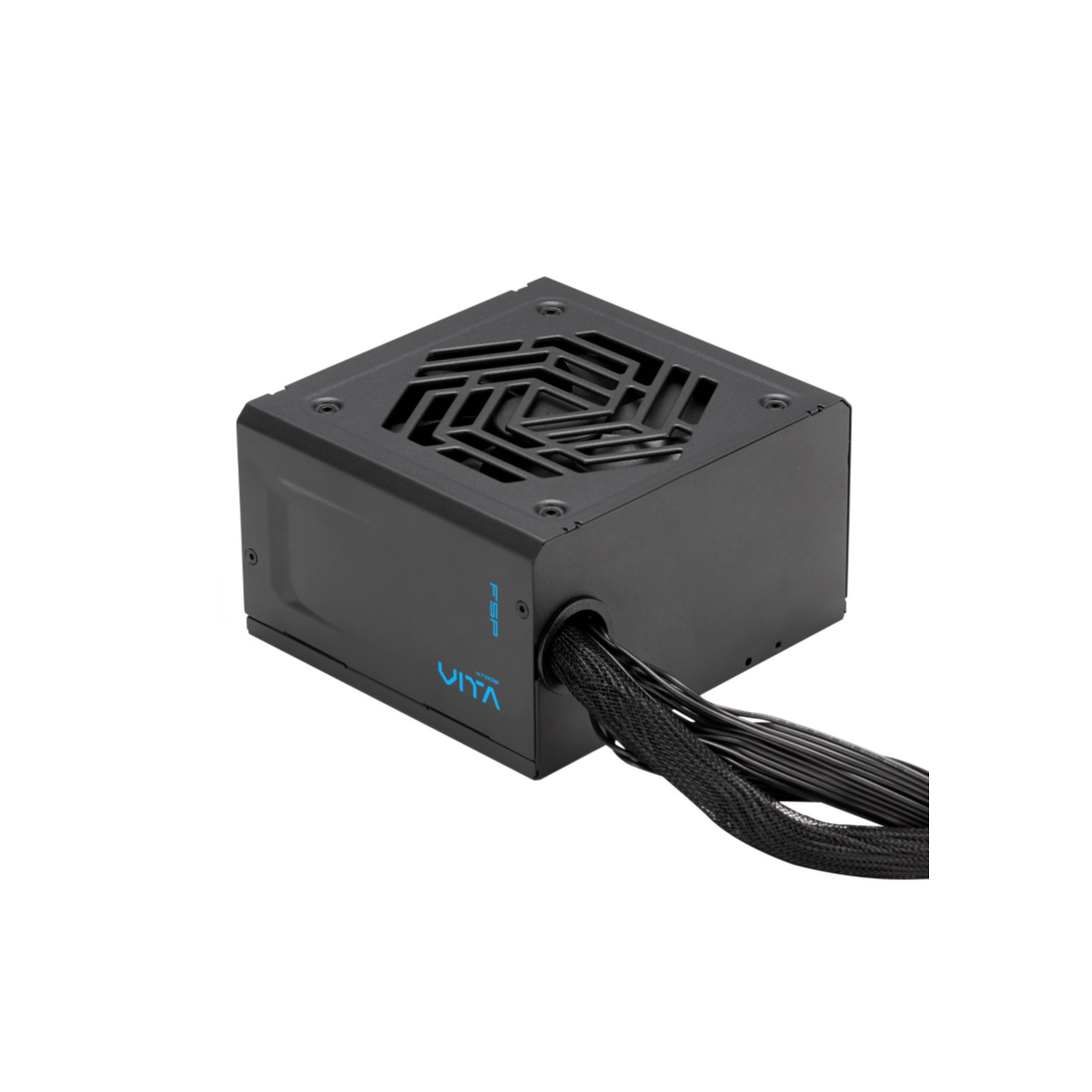

FSP VITA GD 550W black PPA5506202
€44,41

The Future is Now:ATX 3.1 Ready Following the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades. +5V & 3.3V DC to DC Circuit Design Increase the efficiency and stabilize the output voltage to ensure system stability. Powerful Single +12V Rail Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability. Premium, Black Flat Cables Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build. 105˚C Japanese Bulk Capacitor The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on

Availability: In stock
-
+
Secure payment · Fast delivery
EAN:4711498480330Categories:NETWORKS & SECURITY, Networks, Network cardBrand:

The Future is Now:ATX 3.1 Ready Following the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades. +5V & 3.3V DC to DC Circuit Design Increase the efficiency and stabilize the output voltage to ensure system stability. Powerful Single +12V Rail Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability. Premium, Black Flat Cables Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build. 105˚C Japanese Bulk Capacitor The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on. Compact PSU size:140 x 150 x 86mm 140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.

Specifications

Specifications
Total power550 W
Cabling typeNon-Modular
Certification80 PLUS Gold
Form factorATX
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current8-4 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)550 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)45.8 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Efficiency90%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector20+4 pin ATX
Motherboard power cable length60 cm
Number of SATA power connectors8
SATA power cable length500 mm
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)yes
CPU power cable length70 cm
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
ATX version3.1
EPS version2.92
Bearing technologyHYB
Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan locationTop
Cables includedCPU, Peripheral (Molex), SATA
Width150 mm
Depth140 mm
Height86 mm
