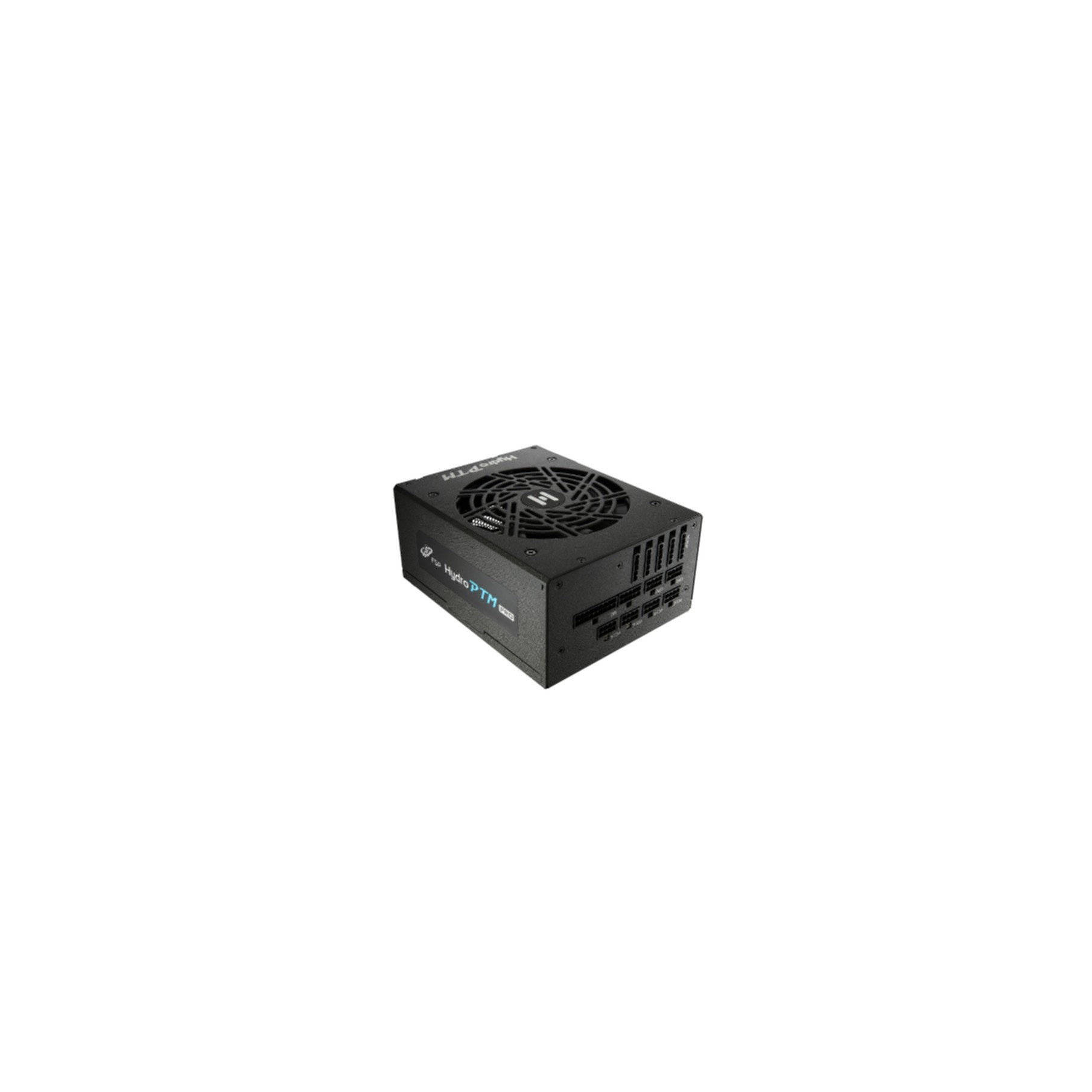

FSP Hydro PTM 850W black PPA8502200
The FSP Hydro PTM PRO series offers high efficiency and longevity to your PC build. Our proprietary conformal coating protects the power supply from dust, humidity, stains, and harsh environments. The Hydro PTM PRO has been designed to reliably operate at a relative humidity of up to 95%. It also features a semi-fanless eco mode that will suspend fan operation until the load has exceeded 30%. This feature can be controlled with the simple flick of a switch located next to the on/off button for easy access. This model also includes fully modular black ribbon cables for DIY enthusiasts looking to create cleaner builds. The FSP Hydro PTM PRO is a top-of-the-line power supply that delivers function, efficiency, and style making it a great addition to any system.
Availability: In stock
The FSP Hydro PTM PRO series offers high efficiency and longevity to your PC build. Our proprietary conformal coating protects the power supply from dust, humidity, stains, and harsh environments. The Hydro PTM PRO has been designed to reliably operate at a relative humidity of up to 95%. It also features a semi-fanless eco mode that will suspend fan operation until the load has exceeded 30%. This feature can be controlled with the simple flick of a switch located next to the on/off button for easy access. This model also includes fully modular black ribbon cables for DIY enthusiasts looking to create cleaner builds. The FSP Hydro PTM PRO is a top-of-the-line power supply that delivers function, efficiency, and style making it a great addition to any system.
Specifications
| Total power | 850 W |
| Cabling type | Fully-Modular |
| Certification | 80 PLUS Platinum |
| Form factor | ATX |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 11 - 5.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 14 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.52 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Harmonized System (HS) code | 84733020 |
