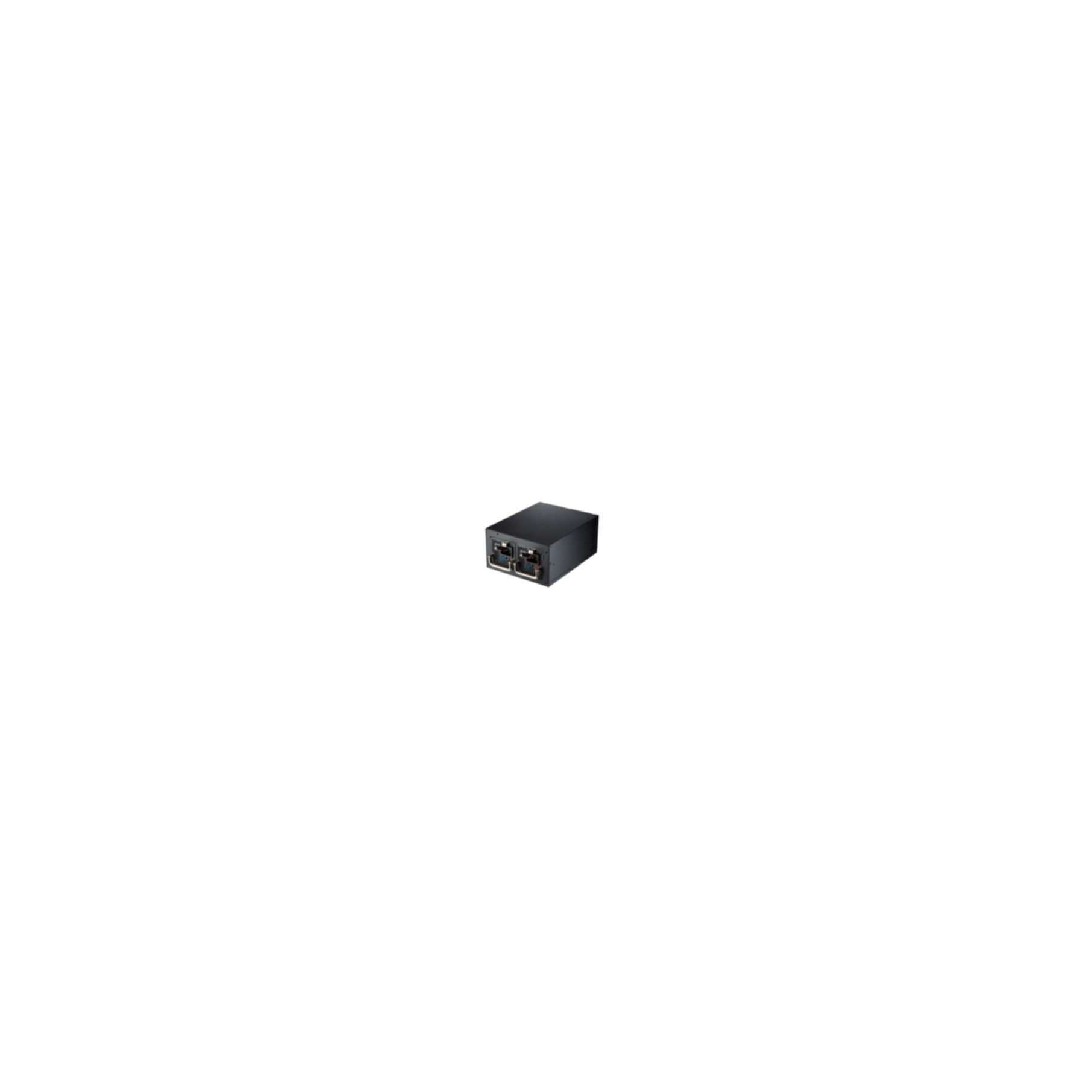

FSP FSP720-20RAB 720W black 9PA7200503
Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.
Availability: In stock
Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.
Specifications
| Total power | 720 W |
| Cabling type | Non-Modular |
| Certification | 80 PLUS Gold |
| Form factor | ATX |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-5 A |
| Max output current (+12V) | 60 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | yes |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Ball bearing |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 86 mm |
| Depth | 150 mm |
| Height | 190 mm |
| Harmonized System (HS) code | 84733020 |
