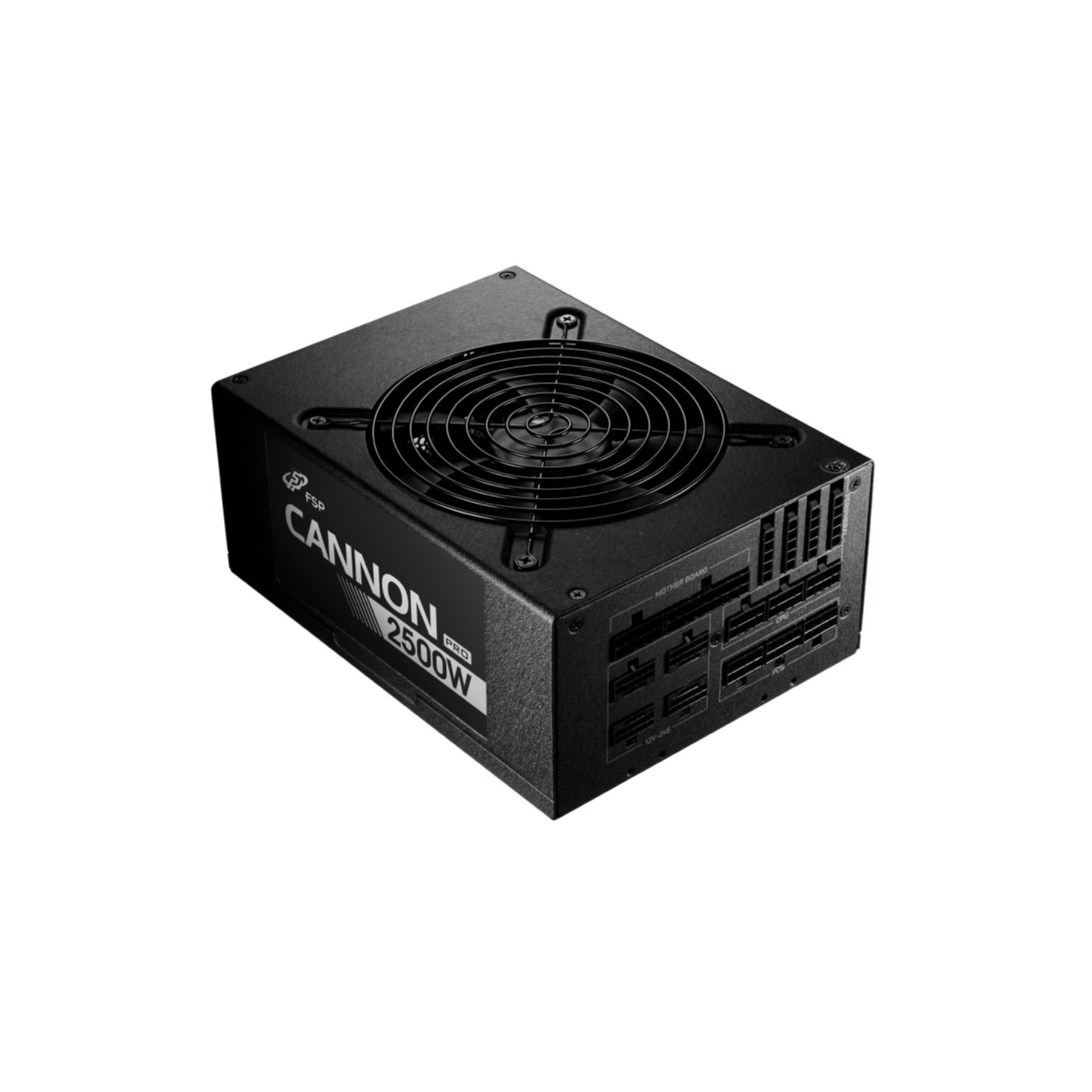

FSP CANNON PRO 2500W black PPA25A0102
The Future is Now:ATX 3.1 & PCIe Gen 5.1 Ready Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion to provide peak performance with modern hardware or future upgrades. High efficiency in Platinum-certified Certified by world-class organizations 80 PLUS® 230 EU platinum certification for lower power loss, less heat, and quieter operation. Ready to Build Your Own AI PC Station 4 x PCIe 12V-2x6 and 3x PCIe 8 pin connectors Supports four 12V-2x6 connectors and three 6+2 pin connectors, providing the power needed for high-end gaming, rendering, and multi-GPU setups. Fully Modular Cabling Design To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter. +5V & 3.3V DC to DC Circuit Design Both of +3.3V and +5V DC – DC module combined +12V SR circuit offers supreme efficiency, voltage stability and high system compatibility especially in cross regul
Availability: In stock
The Future is Now:ATX 3.1 & PCIe Gen 5.1 Ready Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion to provide peak performance with modern hardware or future upgrades. High efficiency in Platinum-certified Certified by world-class organizations 80 PLUS® 230 EU platinum certification for lower power loss, less heat, and quieter operation. Ready to Build Your Own AI PC Station 4 x PCIe 12V-2x6 and 3x PCIe 8 pin connectors Supports four 12V-2x6 connectors and three 6+2 pin connectors, providing the power needed for high-end gaming, rendering, and multi-GPU setups. Fully Modular Cabling Design To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter. +5V & 3.3V DC to DC Circuit Design Both of +3.3V and +5V DC – DC module combined +12V SR circuit offers supreme efficiency, voltage stability and high system compatibility especially in cross regulation(unbalance load) mode. 105℃ Japanese Bulk Capacitor The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on. Powerhouse Yet Energy-saving High energy conversion up to 94% and 70% efficiency at 2% loading, with less than 0.5W consumption in standby mode, ensures an energy-efficient, cost-effective system that is also eco-friendly. The Premium Quality FDB Fan Built with optimized thermal solution and an advanced 135mm fluid dynamic bearing fan for cooler components and quieter operation. Industrial – design: Conformal Coating for Rigorous Computing Environments Provide power stably under rigorous, high-speed computing environments that need to operate 24 hours a day without interruptions. Fortress-level Protection Our comprehensive circuit shields your valuable components from harm.
Specifications
| Total power | 2500 W |
| Cabling type | Fully-Modular |
| Certification | 80 PLUS Platinum |
| Form factor | ATX |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 12 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 2499.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 20 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 208.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 94% |
| Power protection features | No load operation, Over current, Over power, Over voltage, Short circuit, Surge and inrush, Under temperature, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| SATA power cable length | 965 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 965 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (8-pin) | 8 |
| CPU power connector (4+4 pin) | yes |
| ATX power connector (20+4 pin) | yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | yes |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
