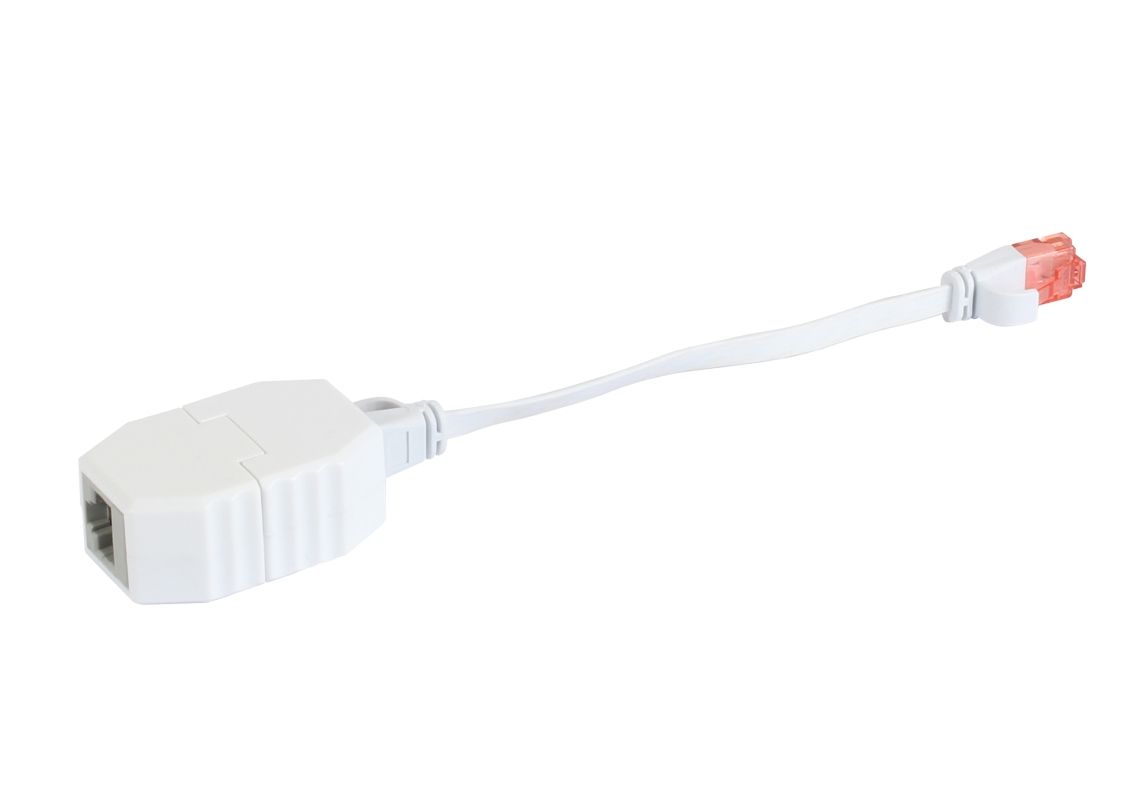

TP-TP coupling, CAT6A, socket, 1:1.8-pin, RJ45, security coupling, release socket, PoE capable, up to 10GBit (ABS housing) - ALL-RJ45-Magnet-V2
ALLNET RJ45 security coupling, drop socket, PoE capable, up to 10Gbit in ABS housing. With this coupling you can easily and effectively protect your valuable IT devices from damage. The two parts are fixed by magnetic contacts and come apart if the tensile load is too high. This prevents RJ45 socket
Availability: In stock
["ALLNET RJ45 security coupling, drop socket, PoE capable, up to 10Gbit in ABS housing. With this coupling you can easily and effectively protect your valuable IT devices from damage. The two parts are fixed by magnetic contacts and come apart if the tensile load is too high. This prevents RJ45 sockets from being torn out and devices being destroyed due to carelessness. This security product from ALLNET was developed specifically for our hospitality customers and IT system houses. The standard specifications for the triggering force of RJ45 plugs and sockets according to IEC 60603-7 are higher than those of our release socket. This ensures that the connection between the two magnetic couplings always falls apart before damage to the device occurs. However, unintentional loosening of the magnetic connection is not possible. You can continue to use the existing infrastructure because the connector supports all types of RJ45 connectors, from Cat5-Cat6a, PoE according to IEEE 802.3 af/at/bt (90Watt) and up to 10GBit. This device complies with the EC Directive 2002/95/EC (RoHS). A set in a PE bag with QIG ALLNET has applied for and received German utility model protection for this safety coupling. 1x release plug (2 parts) ABS housing 1xpatch cable RJ45, CAT6 250Mhz, 0.15m white, UTP(U/UTP), Synergy 21, 1x functional test report created with Cable-Eye device measuring device", "Specification: RJ45 / RJ45 safety coupling with magnetic contacts", "Power over Ethernet according to IEEE 802.3 af/at/bt -90 watts", "avg. RJ45 mating cycles: >= 750", "Socket according to connector standard IEC 60603-7-51", "Data transfer rate: up to 10 GBit IEEE 802.3an", "Data transmission: bidirectional, full duplex", "Adapter type: inactive", "Humidity 10-90%", "Temperature range: -20°C to 85°C", "Connection 2xRJ45", "Connectors: Neodymium Pogo Pins 2x4-pin", "Socket material: ABS plastic", "Housing cover material: ABS", "Housing color: white", "Weight: 30g"]
Specifications
| Spezifikation | RJ45 / RJ45 safety coupling with magnetic contacts |
| durchschn. Steckzyklen RJ45 | >= 750 |
| Datentransferrate | bis zu 10 GBit IEEE 802.3an |
| Data transfer | bidirektional, vollduplex |
| Adapter Typ | inaktiv |
| Temperaturbereich | -20°C bis 85°C |
| Connectoren | Neodym Pogo Pins 2x4-polig |
| Werkstoff Buchse | ABS Kunststoff |
| Housing cover material | ABS |
| Color of the case | white |
| Weight | 30g |
