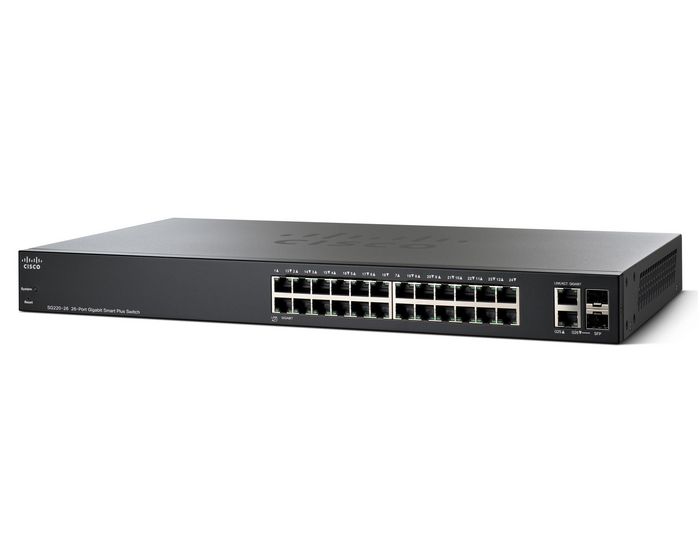

Cisco Cisco Small Business 220 Series Smart Switches bridge the gap between managed and smart switches to offer customers the best of both worlds. Combining powerful performance with reliability, they provide the higher levels of security, management, and scalability you expect from managed switches, affordably priced like smart switches.
Cisco 220 Series Smart Switches, part of the Cisco Small Business line of network solutions, are simple, secure and smart switches equipped with enhanced security, management, and performance. Models include 24 or 48 ports of Fast Ethernet, with two Gigabit Ethernet uplinks, and 26 or 50 ports of Gigabit Ethernet connectivity, all with Power over Ethernet (PoE) options. This series of switches provides enhanced capabilities like access control list, command line interface, and PoE+. Offered with limited lifetime warranty, these switches deliver the ideal combination of features, performance, and ease of use to build a fast, reliable and secure business network, at a lower cost than managed switches. - Layer 2 - 24 x 10/100/1000 Ports + 2 x combo Gigabit SFP - Desktop or rack-mountable - 1U - Switching capacity: 38.69 Mpps ¦ Forwarding performance (64-byte packet size): 52 Gbps
Availability: In stock
Cisco 220 Series Smart Switches, part of the Cisco Small Business line of network solutions, are simple, secure and smart switches equipped with enhanced security, management, and performance. Models include 24 or 48 ports of Fast Ethernet, with two Gigabit Ethernet uplinks, and 26 or 50 ports of Gigabit Ethernet connectivity, all with Power over Ethernet (PoE) options. This series of switches provides enhanced capabilities like access control list, command line interface, and PoE+. Offered with limited lifetime warranty, these switches deliver the ideal combination of features, performance, and ease of use to build a fast, reliable and secure business network, at a lower cost than managed switches. - Layer 2 - 24 x 10/100/1000 Ports + 2 x combo Gigabit SFP - Desktop or rack-mountable - 1U - Switching capacity: 38.69 Mpps ¦ Forwarding performance (64-byte packet size): 52 Gbps
Specifications
| Certification | UL (UL 60950), CSA (CSA 22.2), CE, FCC |
| MAC address table | 8192 entries |
| Number of queues | 8 |
| Packet buffer memory | 4,1 MB |
| Switching capacity | 52 Gbit/s |
| LED indicators | Yes |
| Product colour | Black |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Heat dissipation | 64,5 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Cables included | AC |
| Quick start guide | Yes |
| Flash memory | 32 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 342867 h |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 26 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18,2 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Management protocols | SNMP v1, SNMP v2, SNMP v3 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| SSH/SSL support | Yes |
| Brand Name | Cisco |
| Warranty | 1 year |
