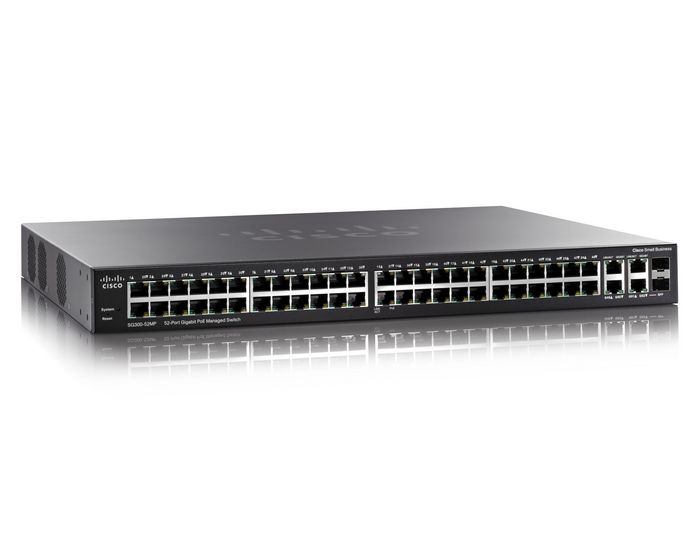

Cisco The Cisco SG300-52MP switch is an affordable 52-port managed 10/100/1000 switch, including two combination mini-GBIC ports and Maximum Power over Ethernet (PoE+). It boosts network performance and includes a limited lifetime warranty with next-business-day advance replacement.
The Cisco SG300-52MP is an affordable 52-port managed 10/100/1000 switch, including two mini- GBIC ports and Power over Ethernet Plus (PoE+), that supports bandwidth-intensive applications and boosts network speeds. With fifty-two 10/100/1000 ports of standard PoE+ that can connect and power wireless access points, IP telephones, IP-based video surveillance cameras, and other network endpoints, the switch provides a foundation to support data, voice, video, and wireless networking solutions for small businesses. Its energy-saving technology optimizes power use to help protect the environment and reduce energy costs without compromising performance. It is easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty, including next-business-day advance replacement and one year of technical support. The Cisco SG300-52MP provides the ideal combination of affordability, performance, and capabilities in a switch designed specifically for sma
Availability: In stock
The Cisco SG300-52MP is an affordable 52-port managed 10/100/1000 switch, including two mini- GBIC ports and Power over Ethernet Plus (PoE+), that supports bandwidth-intensive applications and boosts network speeds. With fifty-two 10/100/1000 ports of standard PoE+ that can connect and power wireless access points, IP telephones, IP-based video surveillance cameras, and other network endpoints, the switch provides a foundation to support data, voice, video, and wireless networking solutions for small businesses. Its energy-saving technology optimizes power use to help protect the environment and reduce energy costs without compromising performance. It is easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty, including next-business-day advance replacement and one year of technical support. The Cisco SG300-52MP provides the ideal combination of affordability, performance, and capabilities in a switch designed specifically for small businesses. - Layer 3 - Managed - 48 x 10/100/1000 PoE+ Ports + 4 x combo Gigabit SFP - Desktop or rack-mountable - 1U - PoE, PoE+ (740 W)
Specifications
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Jumbo frames support | Yes |
| MAC address table | 16384 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Number of queues | 4 |
| Number of static routes | 512 |
| Packet buffer memory | 16 MB |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Switching capacity | 104 Gbit/s |
| Throughput | 77.38 Mpps |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 4 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | No |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4096 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| VLAN support | Yes |
| Heat dissipation | 2978,85 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Packet transfer speed | 77380000 |
| Cables included | AC |
| Manual | Yes |
| User guide | Yes |
| Compatible operating systems | Microsoft Windows, Linux, Mac OS X |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 117130 h |
| Noise level | 47,4 dB |
| Basic switching RJ-45 Ethernet ports quantity | 50 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Fiber optic connector | SFP |
| SFP/SFP+ slots quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (max) | 843,57 W |
| Power consumption (typical) | 68,8 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Management protocols | LACP, IGMP v1, 2, SNMP 1, 2c, 3 |
| Supported network protocols | TCP/IP, IPv4/v6, HTTP/HTTPS, UDP, SSH, BPDU, IPSG, SNTP, TFTP, Bonjour |
| Switching protocols | GVRP, GARP, DHCP |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
| Brand Name | Cisco |
| Warranty | 1 year |
