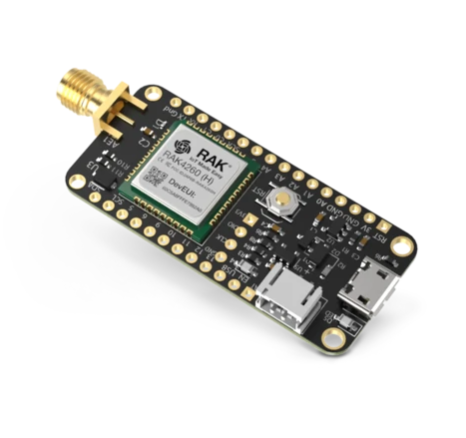

["BastWAN is a feather form factor board with the extremely power-saving and high-performance RAK4260 module at its heart. It is powered by the Microchip R34 LoRa® System-in-Package (SiP), which includes a 48Mhz SAML21 32-bit microcontroller. It also has native USB functionality and a LoRa transceiver. Developed by Electronic Cats, BastWAN features a Micro-USB port and a LiPo battery charger, as well as unique elements such as an ATECC608A crypto authentication chip and 2MB SPI flash for additional storage. For easy software development, the Arduino environment is fully supported, including a LoRa/LoRaWAN® compatible stack. The board comes pre-installed with the UF2 bootloader and appears as a virtual drive. Reprogramming is as easy as dragging and dropping the firmware file - no special tools are required. Since this bootloader is BOSSA compatible, it can also be used directly with Arduino's integrated development environment (IDE), MakeCode and many other programs. BastWAN is fully assembled, tested and programmed with the UF2 USB bootloader. RAK3244 BastWAN | RAKwireless Documentation Center", "Perfect for beginners and advanced developers", "Fast prototype with LoRa/LoRaWAN technology", "Can easily use a large number of sensors and actuators with existing expansion cards", "Open source design and firmware from Electronic Cats", "Ultra-low-power LoRa® SiP device", "Supports the frequency range from 862 to 1020 MHz", "Reception sensitivity up to -148 dBm", "Maximum transmission power up to 20 dBm", "Low RX current of 17 mA (typical)", "LoRa, (G)FSK, (G)MSK modulations", "RAK4260 @ 48MHz with 3.3V logic/power supply", "256KB FLASH + 32KB RAM", "32.768 kHz crystal for clock generation and RTC", "3.3V regulator with 500mA peak current output", "Native USB support, with USB bootloader and serial port debugging", "20 IO pins available on pin headers", "PWM, Hardware Serial, Hardware I2C, Hardware SPI support", "6 x 12-bit analog inputs", "1 x 10-bit analog output (DAC)", "Built-in 100mA LiPo charger with charging status indicator LED", "Pin #13 red LED for general flashing purposes", "Power/Enable pin", "Reset pin and button", "4 mounting holes", "1x BastWAN development board", "1x antenna for LoRa", "1x Micro USB cable", "1x set of jumper wires"]
