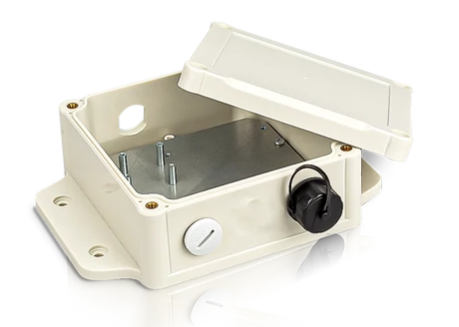

RAK Wireless · LoRa · WisBlock · Kit · GPS Tracker with Outdoor Enclosure
RAK Wireless WisBlock GPS Kit with Outdoor Housing WisBlock Kit 3 comes with a GPS tracker sensor that detects the movement of the sensor. Setup: Location data is collected using a GPS module and the location information is sent to a LoRaWan® server when the sensor changes location Application WisBl
Availability: In stock
["RAK Wireless WisBlock GPS Kit with Outdoor Housing WisBlock Kit 3 comes with a GPS tracker sensor that detects the movement of the sensor. Setup: Location data is collected using a GPS module and the location information is sent to a LoRaWan® server when the sensor changes location Application WisBlock Kit 3 is a LoRa® based GPS tracker. The WisBlock Kit 3 is a GPS tracker with a sensor that can detect a change in location for a specific time interval. Use this kit for tracking and monitoring cargo, vehicles and ships. The localization data and location information collected by the GPS module are sent to a LoRaWAN server when the sensor changes location. The WisBlock Kit 3 is housed in a robust housing suitable for outdoor industrial IoT applications", "RAK5005-O Simple plug'n'play slots for WisBlock Core MCU, WisBlock Sensor and other WisBlock modules", "Small form factor", "Supports 3 different power sources", "Optimized for low power applications", "I2C, UART, GPIO's and analog input accessible with solder contacts", "2 user-definable LED's", "Reset button", "USB troubleshooting port", "1 slot for WisBlock Core MCU", "4 slots for WisBlock Sensor sensor modules", "1 slot for additional WisBlock expansion modules", "RAK4631 LoRaWan® 1.0.2 protocol stack (supports Class A & C)", "Bluetooth Low Energy 5.0 protocol stack", "Nordic nRF52840", "Wide range of connections", "Semtech SX1262", "RAK1904 Using ST LIS3DH acceleration sensor", "Low power consumption", "Small form factor", "User-selectable scales of ±2g/±4g/±8g/±16g", "Data acquisition rates from 1Hz to 5.3kHz", "Internal buffer for 32 levels of 16-bit data", "RAK1910 Using U-Blox MAX-7Q GPS module", "GNSS support for GPS/QZSS and GLONASS", "Low power consumption", "Small form factor", "Quick change of location", "High accuracy of 2.5 m", "10Hz refresh rate", "1m/s speed accuracy", "5 degrees directional accuracy", "RAK5005-O", "RAK4631", "RAK1904", "RAK1910", "RAKBox-B4", "LoRa antenna", "BLE antenna", "GPS antenna"]
Specifications
| Feature 1 | RAK Wireless WisBlock GPS Kit with Outdoor Housing WisBlock Kit 3 comes with a GPS tracker sensor that detects the movement of the sensor. Setup: Location data is collected using a GPS module and the location information is sent to a LoRaWan® server when the Sen |
| Feature 2 | RAK5005-O Simple plug'n'play slots for WisBlock Core MCU, WisBlock Sensor and other WisBlock modules |
| Feature 3 | Kleiner Formfaktor |
| Feature 4 | Supports 3 different power sources |
| Feature 5 | Optimized for low power applications |
| Feature 6 | I2C, UART, GPIO's and analog input accessible with solder contacts |
| Feature 7 | 2 user-definable LED's |
| Feature 8 | Reset-Taste |
| Feature 9 | USB-Fehlersuchanschluss |
| Feature 10 | 1 slot for WisBlock Core MCU |
| Feature 11 | 4 slots for WisBlock Sensor sensor modules |
| Feature 12 | 1 slot for additional WisBlock expansion modules |
| Feature 13 | RAK4631 LoRaWan® 1.0.2 protocol stack (supports Class A & C) |
| Feature 14 | Bluetooth Low Energy 5.0 Protokollstapel |
| Feature 15 | Nordic nRF52840 |
| Feature 16 | Breite Palette von Verbindungen |
| Feature 17 | Semtech SX1262 |
| Feature 18 | RAK1904 Using ST LIS3DH acceleration sensor |
| Feature 19 | Geringer Stromverbrauch |
| Feature 20 | Kleiner Formfaktor |
| Feature 21 | User-selectable scales of ±2g/±4g/±8g/±16g |
| Feature 22 | Datenerfassungsraten von 1Hz bis 5,3kHz |
| Feature 23 | Internal buffer for 32 levels of 16-bit data |
| Feature 24 | RAK1910 Using U-Blox MAX-7Q GPS module |
| Feature 25 | GNSS support for GPS/QZSS and GLONASS |
| Feature 26 | Geringer Stromverbrauch |
| Feature 27 | Kleiner Formfaktor |
| Feature 28 | Schneller Standortwechsel |
| Feature 29 | High accuracy of 2.5 m |
| Feature 30 | 10Hz Aktualisierungsrate |
| Feature 31 | 1m/s speed accuracy |
| Feature 32 | 5 degrees directional accuracy |
| Feature 33 | RAK5005-O |
| Feature 34 | RAK4631 |
| Feature 35 | RAK1904 |
| Feature 36 | RAK1910 |
| Feature 37 | RAKBox-B4 |
| Feature 38 | LoRa-Antenne |
| Feature 39 | BLE-Antenne |
| Feature 40 | GPS-Antenne |
