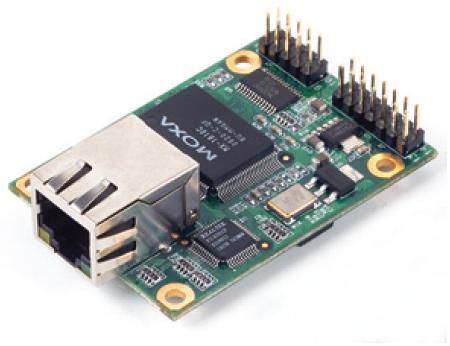

Moxa Device server module for RS-232 devices, supports 10/100BaseT(x) with RJ45 connector
Moxa's NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa's embedded device servers can be used to convert any device with a standard serial interface to an Ethernet enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, aReal COM driver is included for backward compatibility with legacy software. - 10/100 Mbps Ethernet interface - Up to 230.4 Kbps baudrate support - Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP - DHCP, BootP, Static IP, and ARP supported - SNMP and e-mail alerts for event trapping and notifi cation - Half the size of a credit card—only 57 × 40 mm - Low power consumption at 1.5W, with single +5V input
Availability: In stock
Moxa's NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa's embedded device servers can be used to convert any device with a standard serial interface to an Ethernet enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, aReal COM driver is included for backward compatibility with legacy software. - 10/100 Mbps Ethernet interface - Up to 230.4 Kbps baudrate support - Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP - DHCP, BootP, Static IP, and ARP supported - SNMP and e-mail alerts for event trapping and notifi cation - Half the size of a credit card—only 57 × 40 mm - Low power consumption at 1.5W, with single +5V input
Specifications
| Power LED | No |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Compatible operating systems | Unix, Windows 95, 98, ME, NT, 2000, XP, 2003, XP x64, 2003 x64; |
| Ethernet LAN (RJ-45) ports | 1 |
| Input voltage | 5 V |
| Supported network protocols | ICMP, ARP, IP, TCP, UDP, DHCP, Telnet, HTTP, SNMP, SMTP |
| Certification | CE, FCC |
| Ethernet LAN data rates | 10, 100 |
| Isolation | 1,5 kV |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Brand Name | Moxa |
| Warranty | 2 years |
| Dimensions (WxDxH) | 57 x 40 x 0 mm |
