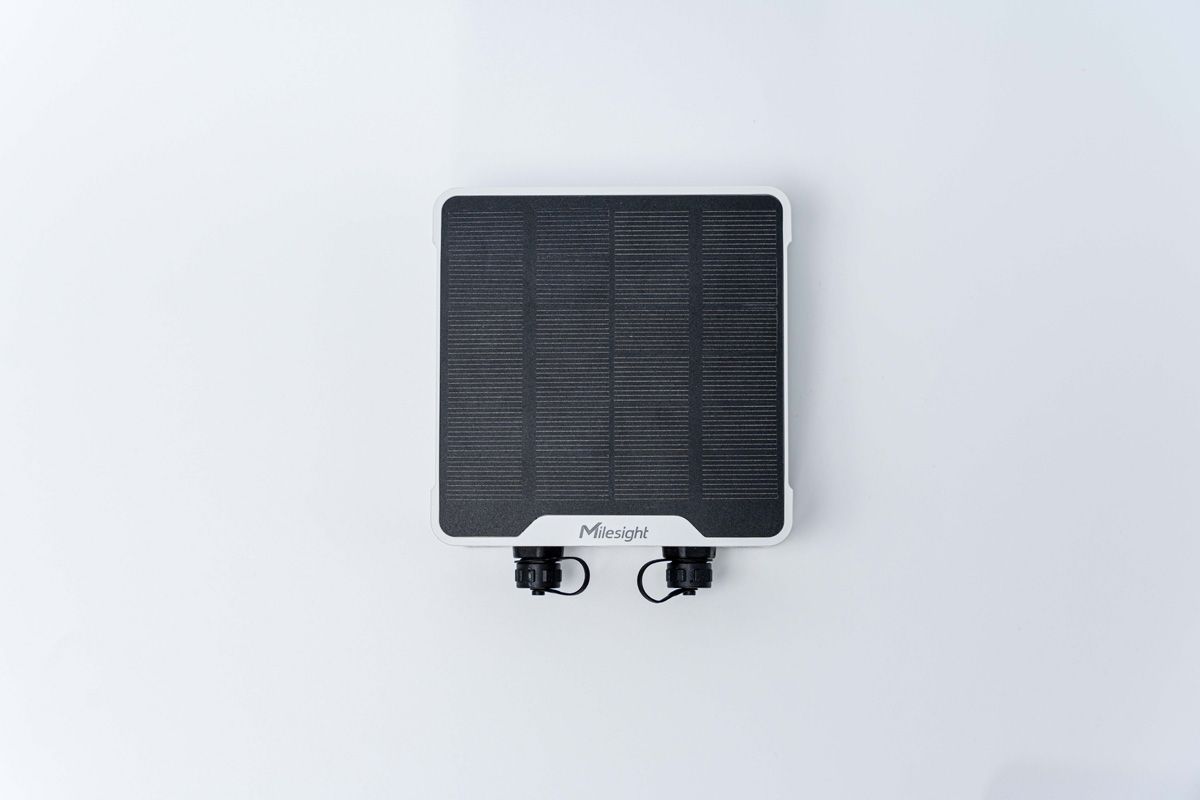

Milesight IoT Solenoid Valve Controller, UC511-DI-868M-EA Solar / LoRaWAN / IP 67
The Milesight UC511-DI-868M-EA is an industrial-grade LoRaWAN I/O controller with a digital input that makes it possible to integrate a wide variety of conventional devices into a LoRaWAN network. The controller is ideal for applications in the remote monitoring and control of industrial systems, sm
Availability: In stock
["The Milesight UC511-DI-868M-EA is an industrial-grade LoRaWAN I/O controller with a digital input that makes it possible to integrate a wide variety of conventional devices into a LoRaWAN network. The controller is ideal for applications in the remote monitoring and control of industrial systems, smart cities, agriculture or building technology. The UC511-DI is suitable for a wide range of applications such as remote monitoring of switches, pumps, valves, level sensors, access doors, machines and meters. The robust housing and long battery life make it ideal for self-sufficient outdoor use, for example in agriculture, industry, building management or utilities", "LoRaWAN communication (868 MHz) for ranges of up to 15 km (open field)", "1x digital input for monitoring e.g. B. switches, door contacts or meters", "Robust IP67 housing for use in harsh outdoor environments", "Integrated battery with a lifespan of up to 10 years (depending on the transmission interval)", "Energy-efficient operation, ideal for self-sufficient applications", "Easy configuration via USB or wirelessly via NFC", "Flexible trigger and reporting options", "Frequency range: 863-870 MHz (LoRaWAN EU868 standard)", "Digital input: 1x (floating or with voltage)", "Input voltage: 3-30V DC", "Battery: Built-in 3.6V lithium battery (not replaceable)", "Battery life: Up to 10 years (depending on configuration and usage)", "Protection class: IP67 (dust and waterproof)", "Communication range: Up to 15 km in open field", "Temperature range: -40°C to +70°C", "Dimensions: 96 × 96 × 35mm", "Weight: approx. 180g", "Mounting: Wall or pole mounting possible", "Configuration: USB or NFC", "Compatibility: LoRaWAN 1.0.2 / 1.0.3"]
Specifications
| Frequenzbereich | 863–870 MHz (LoRaWAN EU868 Standard) |
| Digitaleingang | 1x (potential-free or with voltage) |
| Input voltage | 3–30 V DC |
| Batterie | Integrierte 3,6 V Lithium-Batterie (nicht austauschbar) |
| Batterielebensdauer | Up to 10 years (depending on configuration and usage) |
| Schutzart | IP67 (dust and waterproof) |
| Kommunikationsreichweite | Bis zu 15 km im Freifeld |
| Temperaturbereich | -40 °C bis +70 °C |
| Abmessungen | 96 × 96 × 35 mm |
| Weight | ca. 180 g |
| Montage | Wall or pole mounting possible |
| Konfiguration | USB oder NFC |
| compatibility | LoRaWAN 1.0.2 / 1.0.3 |
