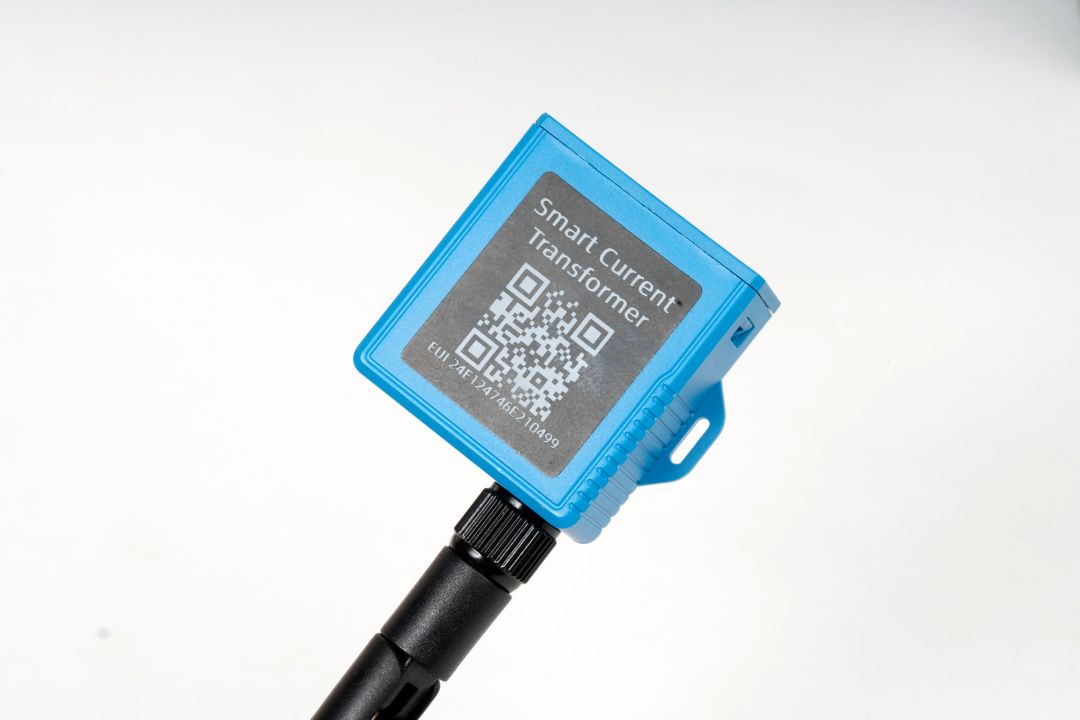

Milesight IoT Smart Current Transformer, CT310-868M LoRaWAN / 1000A
The Milesight CT310-868M is a powerful, intelligent current converter for precise measurement of high alternating currents of up to 1000 A. Thanks to integrated LoRaWAN® communication (868 MHz), real-time data can be transmitted wirelessly - ideal for industrial plants, data centers, EV charging sta
Availability: In stock
["The Milesight CT310-868M is a powerful, intelligent current converter for precise measurement of high alternating currents of up to 1000 A. Thanks to integrated LoRaWAN® communication (868 MHz), real-time data can be transmitted wirelessly - ideal for industrial plants, data centers, EV charging stations or complex building technology. The simple installation and low-maintenance operation make the CT310 the ideal solution for modern energy monitoring. Perfect for high current applications in industry, power distribution, EV infrastructure, server rooms and large systems. Supports intelligent monitoring, consumption analysis, anomaly detection and integration with LoRaWAN-based energy management solutions", "Measuring range up to 1000 A AC – ideal for high-performance systems", "LoRaWAN® communication (868 MHz, EU) for reliable remote monitoring", "Split-core design for easy retrofitting without interrupting operations", "High accuracy for energy management and error analysis", "Long battery life or external power supply", "Can be integrated into existing IoT environments and energy management systems", "Model: CT310-868M", "Current range: up to 1000 A AC", "Sensor type: split core (for subsequent installation)", "Communication: LoRaWAN®, 868 MHz (EU868)", "Accuracy: ±1%", "Sampling and sending interval: configurable", "Power supply: battery or external (5 V DC)", "Communication range: up to 15 km (open field)", "Protection class: IP30 (indoor areas)", "Temperature range: -20°C to +60°C", "Dimensions: 76 × 82 × 39mm", "Mounting: around power line/bus bar"]
Specifications
| Modell | CT310-868M |
| Strombereich | bis 1000 A AC |
| Sensor-Typ | Split core (for subsequent installation) |
| Kommunikation | LoRaWAN®, 868 MHz (EU868) |
| accuracy | ±1% |
| Sampling- und Sendeintervall | konfigurierbar |
| Power supply | Batterie oder extern (5 V DC) |
| Kommunikationsreichweite | bis zu 15 km (Freifeld) |
| Schutzklasse | IP30 (Innenbereiche) |
| Temperaturbereich | -20 °C bis +60 °C |
| Abmessungen | 76 × 82 × 39 mm |
| Montage | around power line/busbar |
