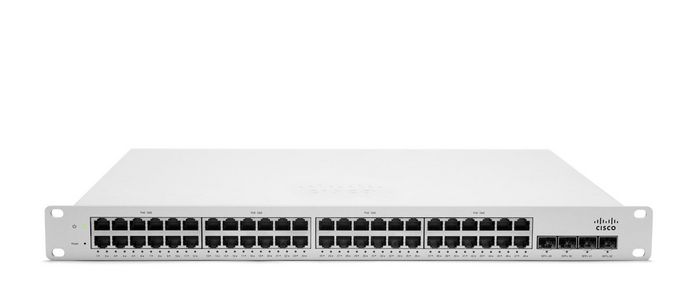

Cisco Cloud Managed Switching for the Branch, 48x Gigabit Ethernet, 4x SFP, 104 Gbps, PoE/PoE+ 370 W, 505 W, 8.47 lbs
Hardware platform - Voice and Video QoS - Supports Cisco redundant power system (RPS2300) - Non-blocking switch fabric - Ultra-reliable, includes lifetime warranty Power over Ethernet (for PoE models) - 802.3af (PoE) 15.4 W per port - 802.3at (PoE+) 25.5 W per port - MS220-48LP maximum PoE output: 370 W - MS220-48FP maximum PoE output: 720 W - PoE available simultaneously on all ports - Intelligent PoE power allocation based on device advertisement (LLDP) Cloud management - Visibility and control over thousands of ports - Built-in multi site management - Zero touch provisioning Monitoring and diagnostics - Cable failure testing - Gateway connectivity testing - Real time troubleshooting tools - Email and text message alerts
Availability: In stock
Hardware platform Power over Ethernet (for PoE models) Cloud management Monitoring and diagnostics Hardware platform - Voice and Video QoS - Supports Cisco redundant power system (RPS2300) - Non-blocking switch fabric - Ultra-reliable, includes lifetime warranty Power over Ethernet (for PoE models) - 802.3af (PoE) 15.4 W per port - 802.3at (PoE+) 25.5 W per port - MS220-48LP maximum PoE output: 370 W - MS220-48FP maximum PoE output: 720 W - PoE available simultaneously on all ports - Intelligent PoE power allocation based on device advertisement (LLDP) Cloud management - Visibility and control over thousands of ports - Built-in multi site management - Zero touch provisioning Monitoring and diagnostics - Cable failure testing - Gateway connectivity testing - Real time troubleshooting tools - Email and text message alerts
Specifications
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Switching capacity | 104 Gbit/s |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Power connector | DC-in jack |
| SFP module slots quantity | 4 |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 505 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 370 W |
| Management protocols | DHCP, SNMP v2c |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Brand Name | Cisco |
| Warranty | 1 year |
