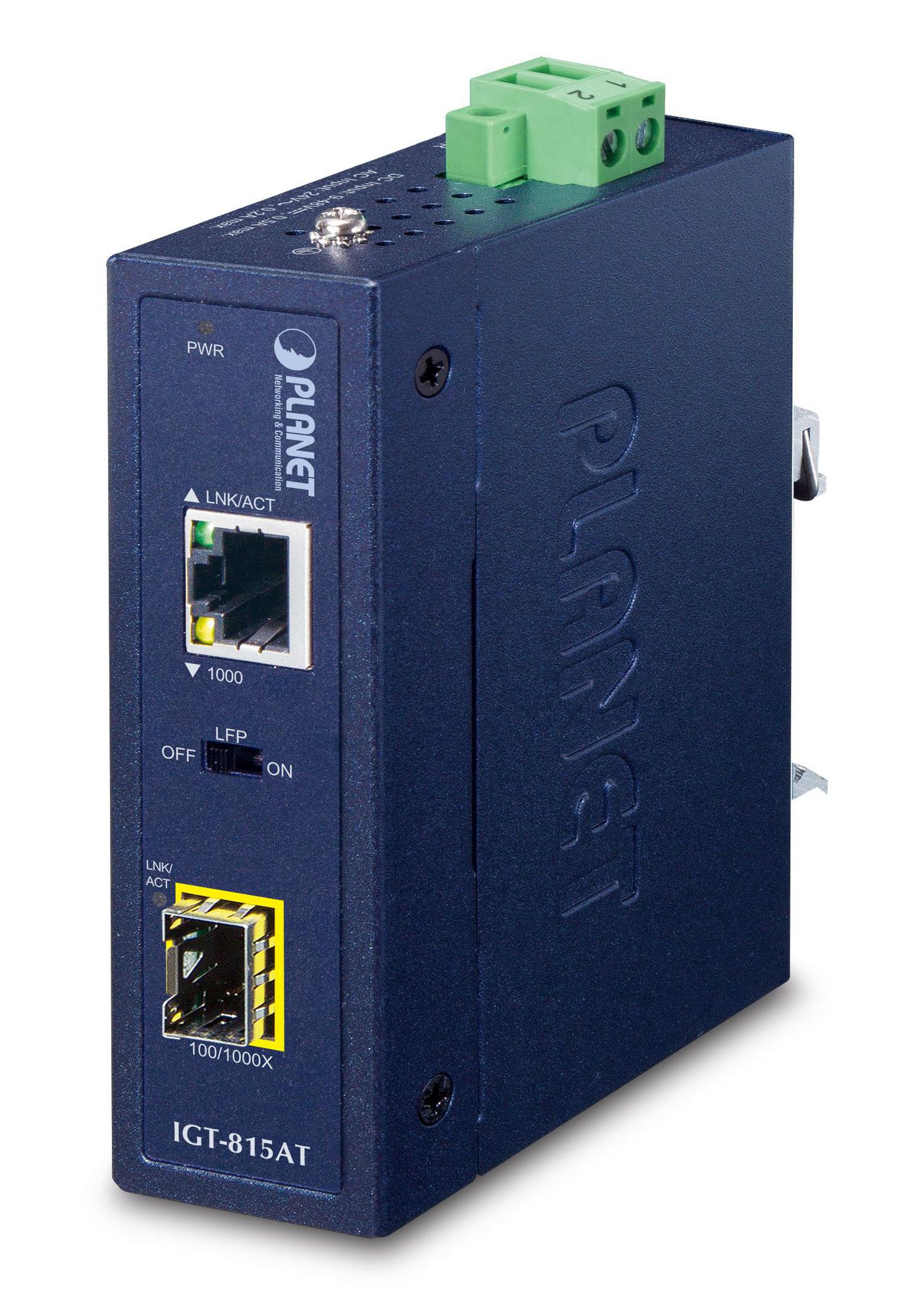

IP30 Compact size Industrial
€69,82
IP30 Compact size Industrial
Availability: In stock
Secure payment · Fast delivery
EAN:4711605284363Categories:, , Brand:
IP30 Compact size Industrial
Specifications
Specifications
| Certification | FCC Part 15 Class A, CE |
| DIN rail mounting | Yes |
| Housing material | Metal |
| Internal | No |
| International Protection (IP) code | IP30 |
| LED indicators | Power, System |
| Product colour | Blue |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Converter input interface | 1000Base-SX, 1000Base-T, 100Base-T, 10Base-T |
| Converter output interface | 1000Base-BX, 1000Base-LX, 1000Base-SX |
| Duplex system | Full, Half |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Performance | Fiber mode structure Multi-mode, Single-modeMaximum transfer distance 100 m |
| Fiber mode structure Multi-mode, Single-mode | Maximum transfer distance 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Maximum transfer distance | 100 m |
| Ports & interfaces | Connectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber optic connector SFP Fiber ports quantity 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Power | Input current 24 AInput voltage 9 - 48 V |
| Input current 24 A | Input voltage 9 - 48 V |
| Input current | 24 A |
| Input voltage | 9 - 48 V |
| Vendor information | Brand Name Planet Warranty 5 År |
| Brand Name Planet | Warranty 5 År |
| Brand Name | Planet |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Media Converters |
| Hovedkategori | Network |
| Underkategori | Network Media Converters |
